- Solid top with vents and cable entry port(s)
- Base with open center and cable entry ports

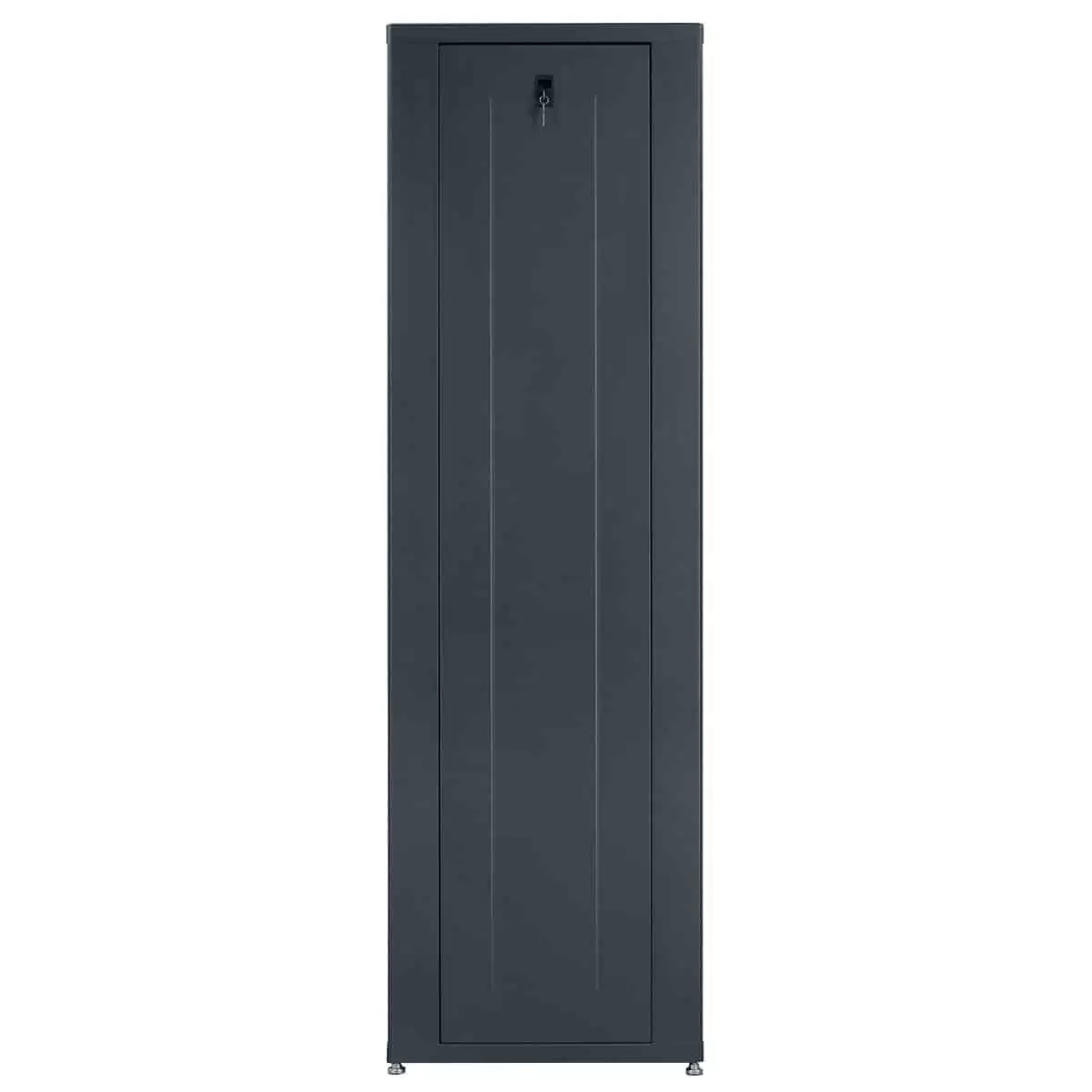

- Removable side access covers with key locks (opens from top)

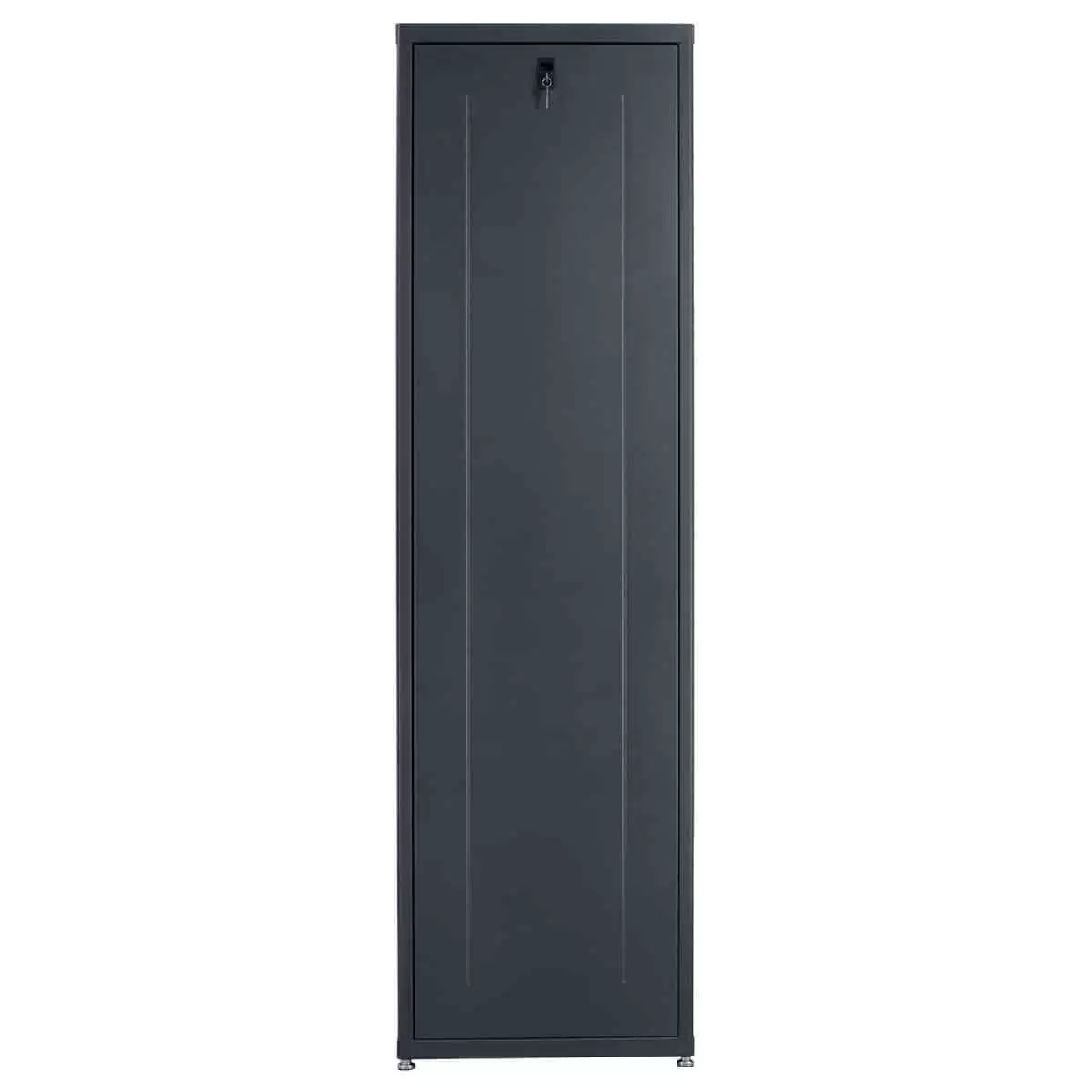

- Rear access cover with key lock (opens from top)
- Tempered glass front door with key lock
- Two-pair fully adjustable rails tapped 10-32 with printed RU scale
- Grounding stud
- Leg levelers
- Beveled corners
- Charcoal Grey textured powder epoxy finish
- Pilot Point screws with captive washers
- Rack Space: 42U
- Height: 77.68 in.
- Width: 22.31 in.
- Depth: 24.00 in.
- Load Capacity: 1200 lbs.
The EIA/TIA compliant 19″ equipment rack shall be Lowell Model No. LDR-4224 which shall measure 22.31″W x 24.00″D x 77.68″. The rack shall have 42U panel space and 1200 lbs. load capacity. Construction shall be fully welded 16-gauge steel with 16.gauge top/base reinforced at load-bearing junctions and finished with a charcoal grey textured coating. It shall include a tempered glass front door with key lock, recessed rear access cover with key lock, removable side panels with locks, two pairs of 11-gauge steel rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing, steel top with 2 vents and a hole with grommet for cable access. The base shall feature a center opening, 2 holes with grommets for rear cable access, grounding stud and 4 leg levelers.
