- Solid top with vents and cable entry port(s)
- Base with open center and cable entry ports
- Removable side access covers with key locks (opens from top)
- Rear access cover with key lock (opens from top)
- Tempered glass front door with key lock
- Two-pair fully adjustable rails tapped 10-32 (printed RU scale)
- Pilot Point screws with captive washers
- Grounding stud
- Beveled corners
- Charcoal Grey textured powder epoxy finish
- Swivel casters
- Leg levelers
- Vented shelves (7)
- Blank panels (7)
- Whisper fans in top vents (2)
- Rack Space: 35U
- Overall Height: 65.43 in. (68.18 in. w/casters)
- Overall Width: 22.31 in.
- Overall Depth: 24.00 in.
- Load Capacity: 980 lbs.
- TAA compliant
- BAA compliant
- EIA/TIA compliant
- USA-certified steel
- Made in USA

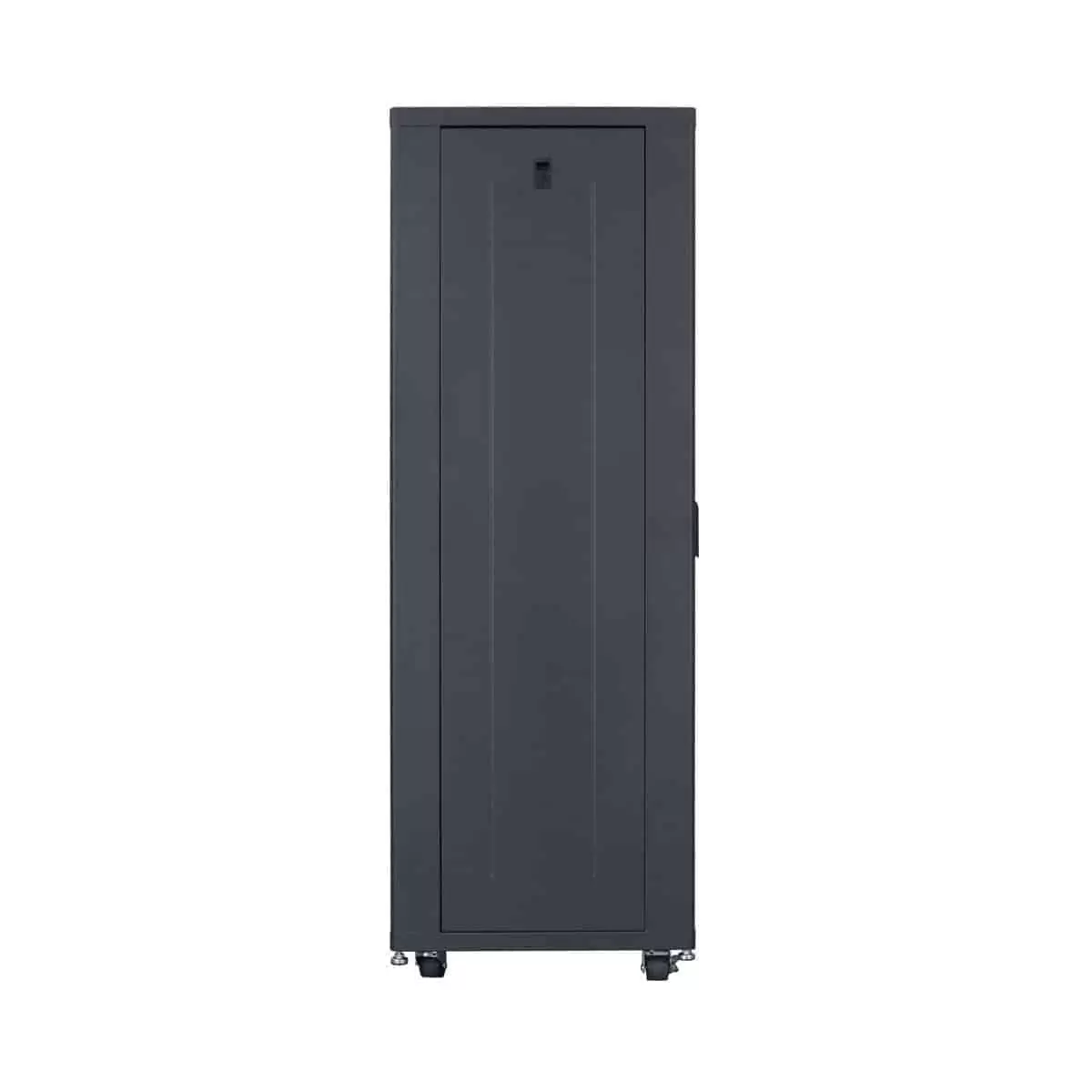

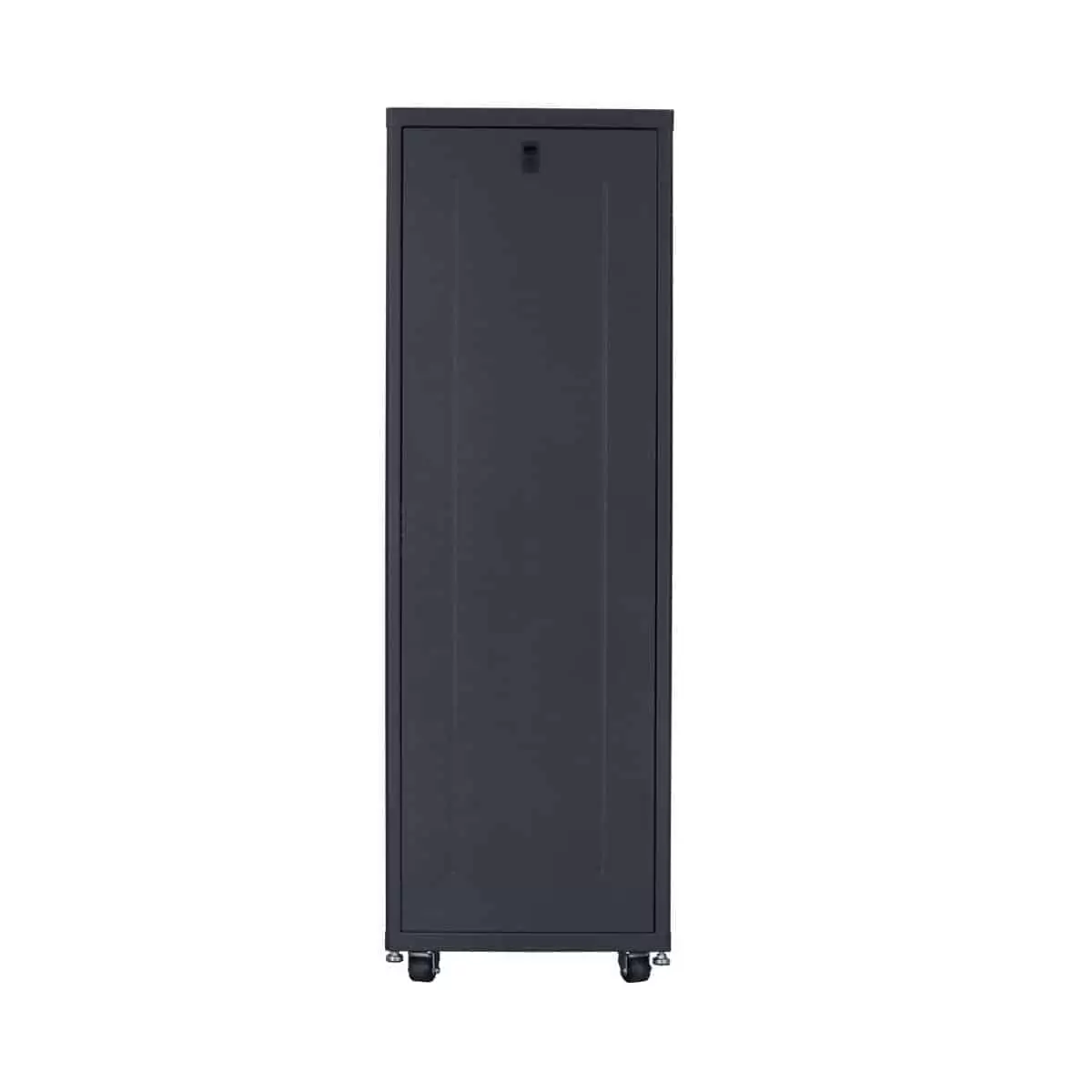

The EIA/TIA-compliant 19″ equipment rack shall be Lowell Model No. LCDR-3524 which shall measure 22.31″W x 24.00″D x 68.18″H (with casters). The rack shall have 35U panel space and 980 lbs. load capacity. Construction shall be fully welded 16-gauge steel with 16-ga. top/bottom reinforced at load-bearing junctions and finished with a charcoal-grey textured coating. It shall include a tempered glass front door with key lock, recessed rear access cover with key lock, removable side panels with locks, two pairs of 11-gauge steel rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing, steel top with 2 vents and a hole with grommet for cable access, seven (2U x 18″D) shelves with vents, and seven (2U) blank panels. The base shall feature a center opening, 2 holes with grommets for rear cable access, a grounding stud, 4 casters (2 locking) and 4 leg levelers. The rack shall be manufactured in the USA using USA-certified steel and have a textured charcoal-grey powder-coat finish. It shall be Trade Agreement Act (TAA) compliant and Buy American Act (BAA) compliant.
