100W Mono Volume Control with Key Switch & 1-Gang Decorator Wall Plate, Ivory | KL100-DI - CLOSEOUT

Name: 100W Mono Volume Control with Key Switch &amp; 1-Gang Decorator Wall Plate, Ivory | KL100-DI - CLOSEOUT
SKU: KL100-DI
Availability: InStock

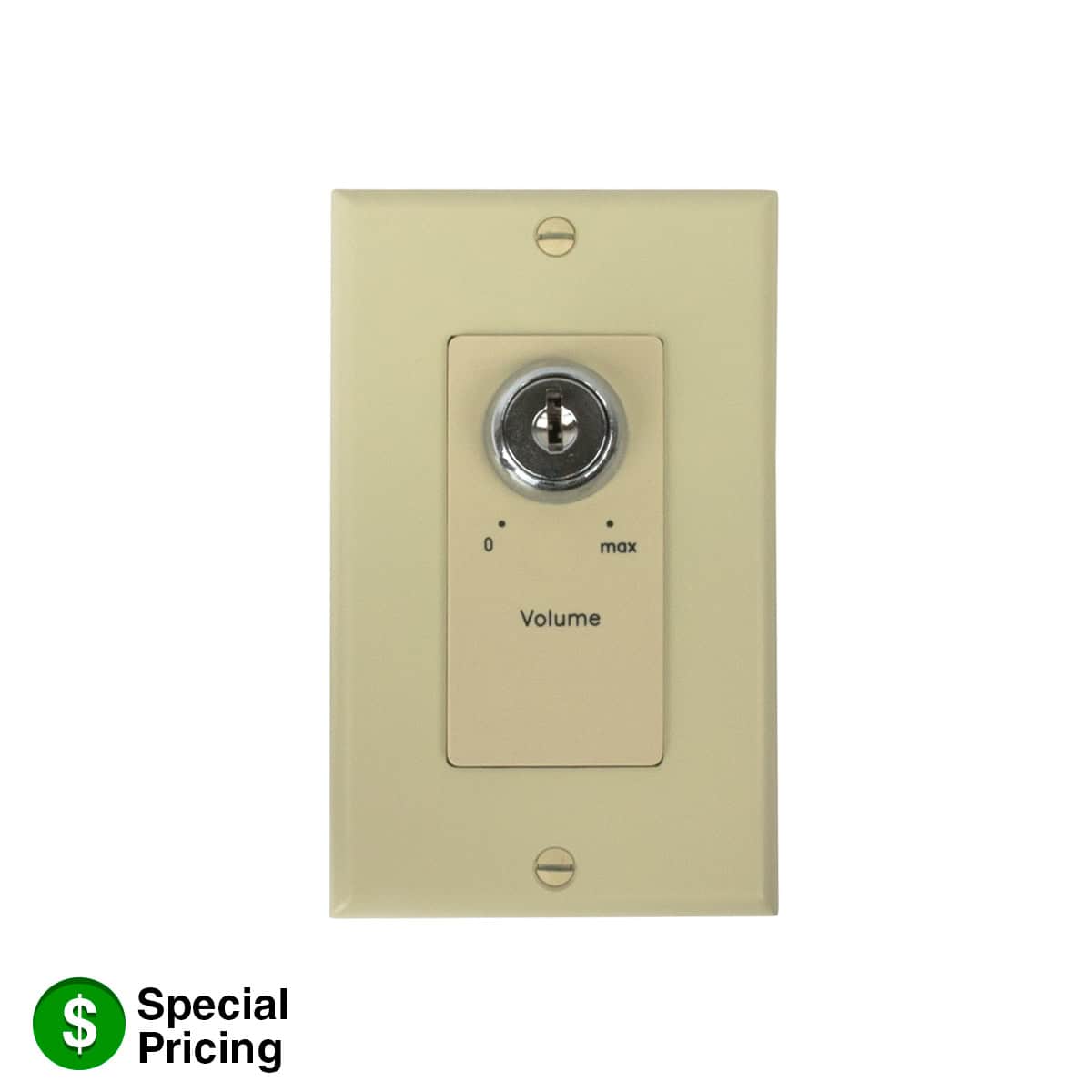

Special Pricing - While Supplies Last

$103.80 MSRP

CLOSEOUT | Call 800-325-9660 for Availability
Recommended Alternative: KL100-DW

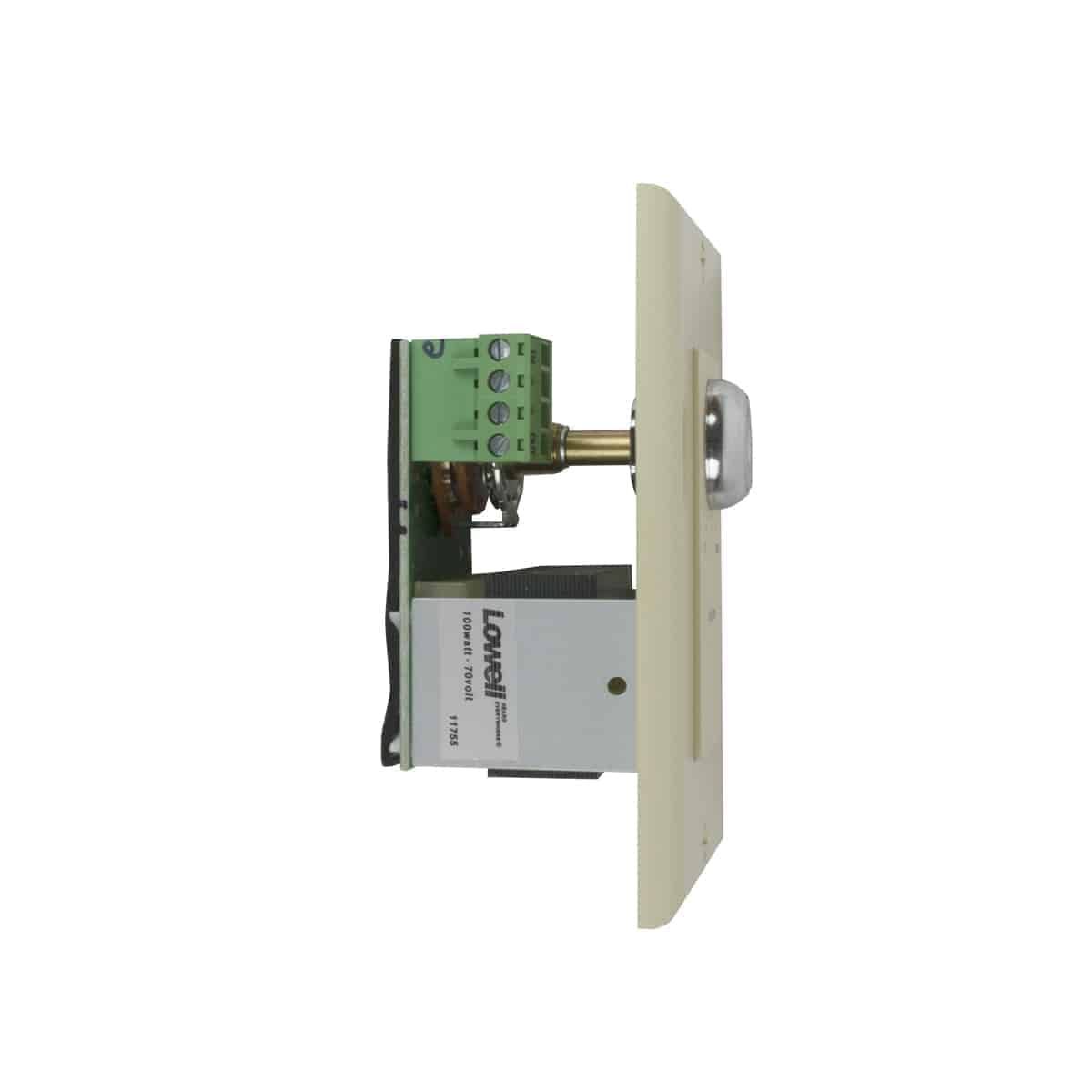

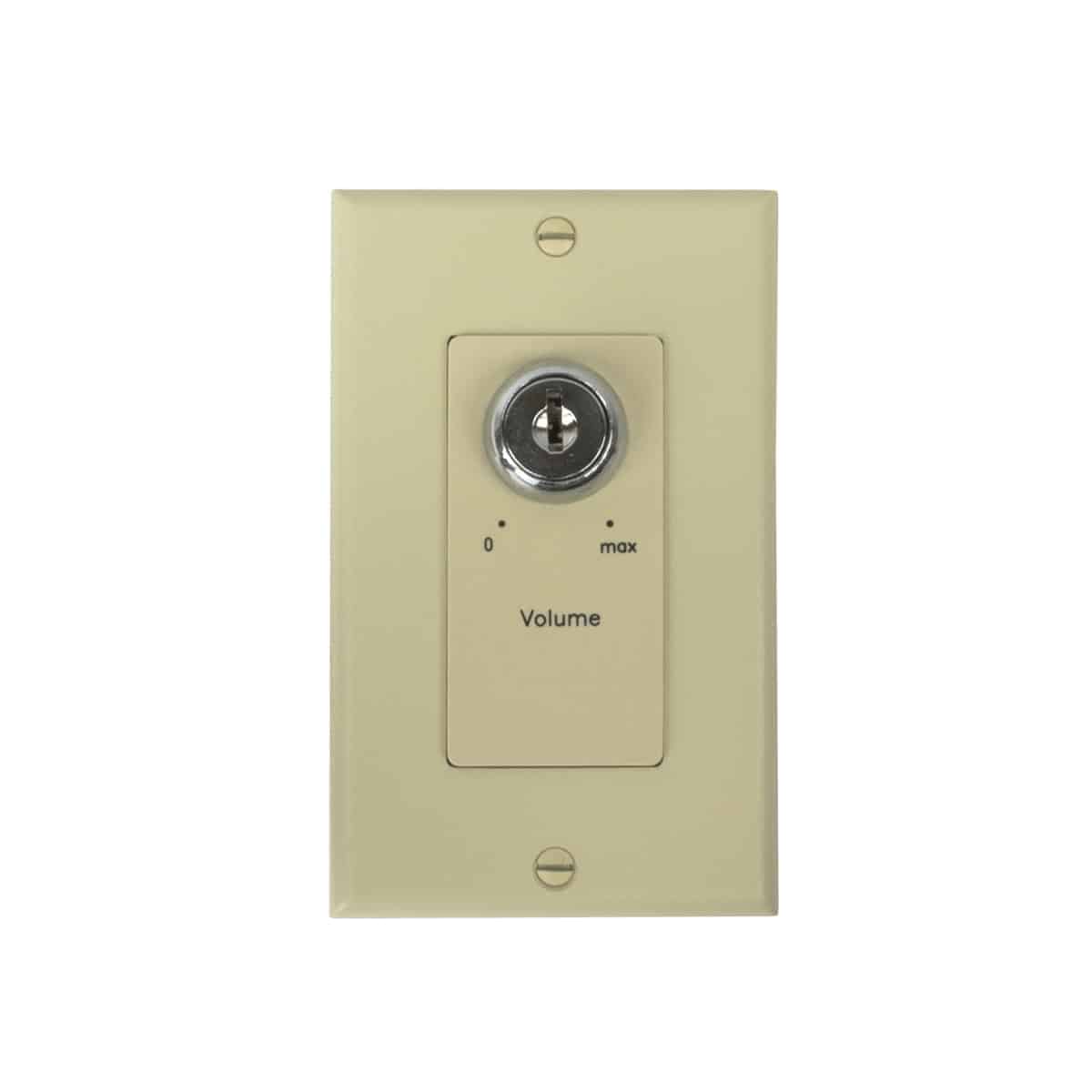

The 100W mono autoformer attenuator-style volume control with key activation switch includes a one-gang decorator-style wall plate and features a patented design that secures volume settings for critical paging and emergency systems. For single or multiple speaker lines. Ivory.

Add to Favorites

Compare

Power Rating: 100W
Attenuation: 3dB per step (33dB total)
Use With: 25V/70V speaker line
Activation: Key
Volume Positions: 0-10
Two steps of 6dB each before off
Termination: Phoenix-style
Wire Capacity: 14-gauge
Wall Plate: 1-gang decorator style
Finish: Ivory
Fits standard E.O. box (2.125 in. min. depth)

Spec Sheet: 1799-KL100DI
Install: 12358-KL100

Assembled in USA (China components)
ETL Listed (UL60065, UL2043)

The ETL Listed (UL60065, UL2043) volume control shall be Lowell Model KL100-DI with 100W power rating, 3dB per step attenuation, and switch positions 10-off. It shall feature Phoenix style plug-in screw termination strips for pre-wire with capacity up to 14-gauge. It shall include a one-gang decorator style wall plate with Ivory finish. Volume adjustment shall be controlled by a key.

P1X: Surface-mount wall box, 1-gang
KL-ANP2: Adaptor plate retrofits to fit a 2-gang box
