100W Mono Volume Control with Key Switch & 1-Gang Decorator Wall Plate, Black |KL100-DB - CLOSEOUT

Name: 100W Mono Volume Control with Key Switch &amp; 1-Gang Decorator Wall Plate, Black |KL100-DB - CLOSEOUT
SKU: KL100-DB
Availability: InStock

Special Pricing - While Supplies Last

$68.20 MSRP

CLOSEOUT | Call 800-325-9660 for Availability
Recommended Alternative: KL100-DSB

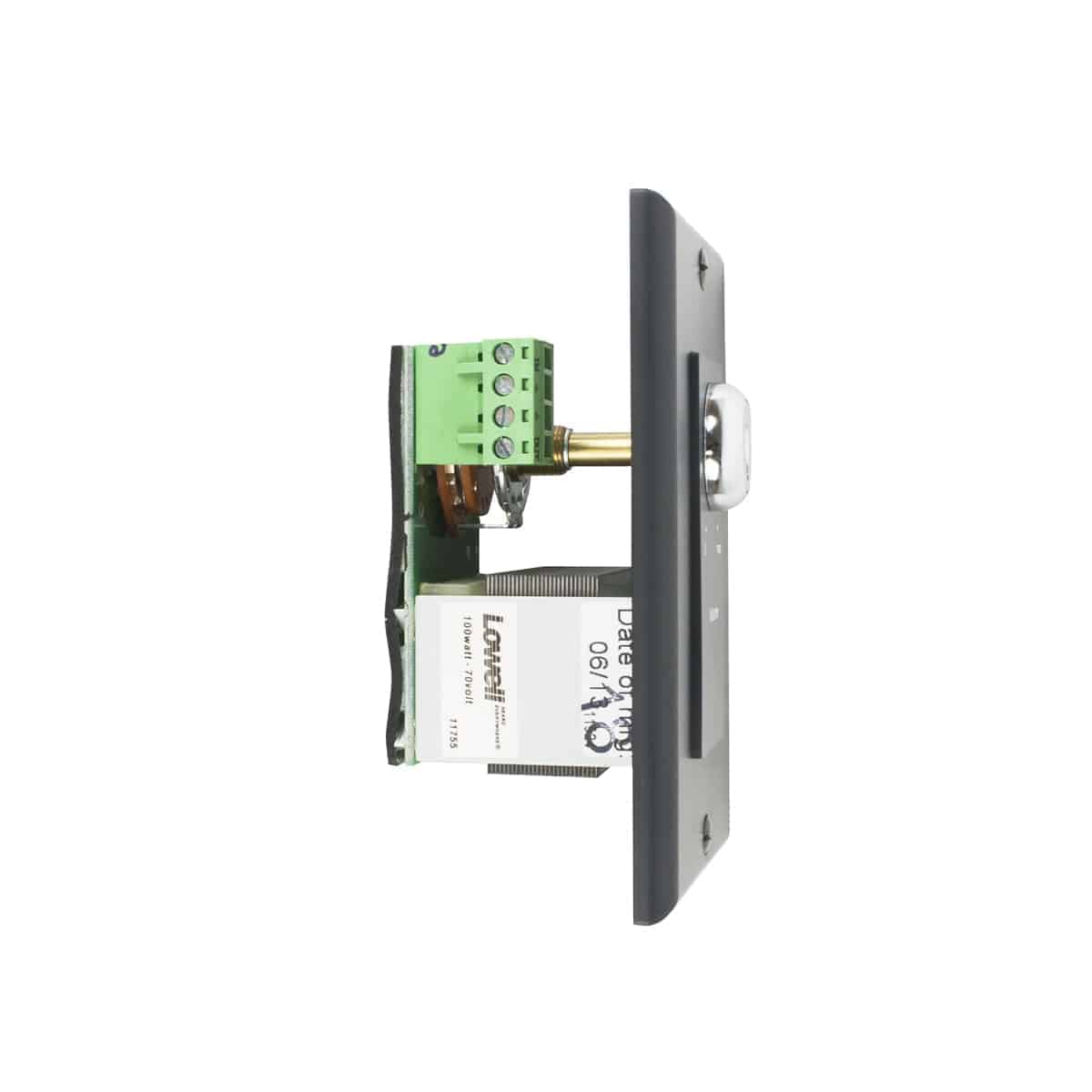

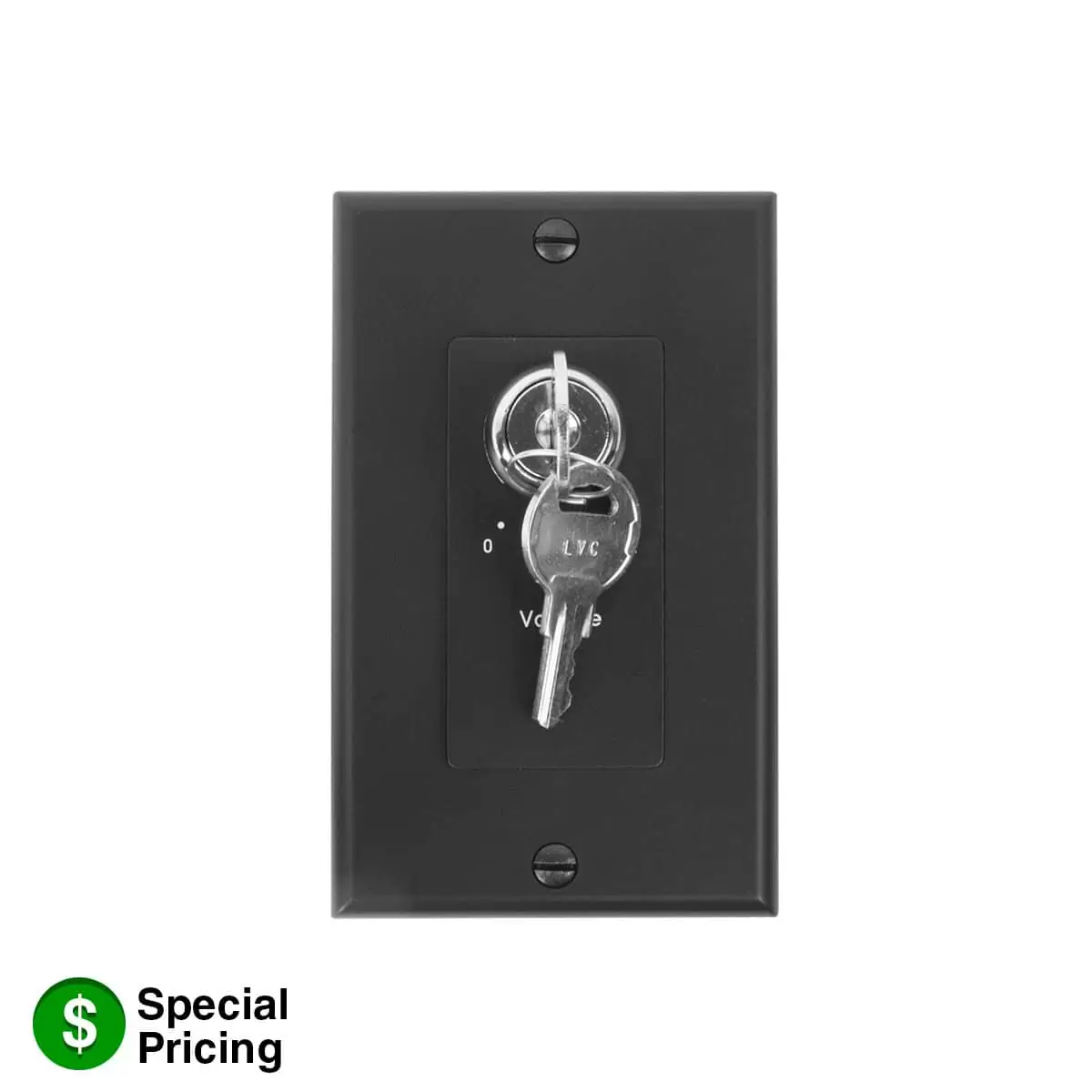

The 100W mono autoformer attenuator volume control has a key activation switch and includes a decorator-style wall plate. It features a patented design that secures volume settings for critical paging and emergency systems. For single or multiple speaker lines. Black.

Add to Favorites

Compare

Power Rating: 100W
Attenuation: 3dB per step (33dB total)
Use With: 25V/70V speaker line
Activation: Key
Volume Positions: 0-10
Two steps of 6dB each before off
Termination: Phoenix-style
Wire Capacity: 14-gauge
Wall Plate: 1-gang decorator style
Finish: Black
Fits standard E.O. box (2.125 in. min. depth)

Spec Sheet: 2244-KL100DB
Install: 12358-KL100

Assembled in USA (China components)
ETL Listed (UL60065, UL2043)

The ETL Listed (UL60065, UL2043) volume control shall be Lowell Model KL100-DB with 100W power rating, 3dB per step attenuation, and switch positions 10-off. It shall feature Phoenix style plug-in screw termination strips for pre-wire with capacity up to 14-gauge. It shall include a one-gang decorator style wall plate with black finish. Volume adjustment shall be controlled by a key.

P1X: Surface-mount wall box, 1-gang
KL-ANP2: Adaptor plate retrofits to fit a 2-gang box
