LT2S series 2x2 lay-in tile ceiling speaker

LT2S series 2x2 lay-in tile ceiling speaker grille

8 inch Dual Cone Lay-in Tile Ceiling Speaker with 25/70V Xfmr, 2x2 Frame with 7-in. Grille, Enclosure

Name: 8 inch Dual Cone Lay-in Tile Ceiling Speaker with 25/70V Xfmr, 2x2 Frame with 7-in. Grille, Enclosure
SKU: LT2S-810-72-BB
Availability: InStock

LT2S-810-72-BB

$166.80 MSRP

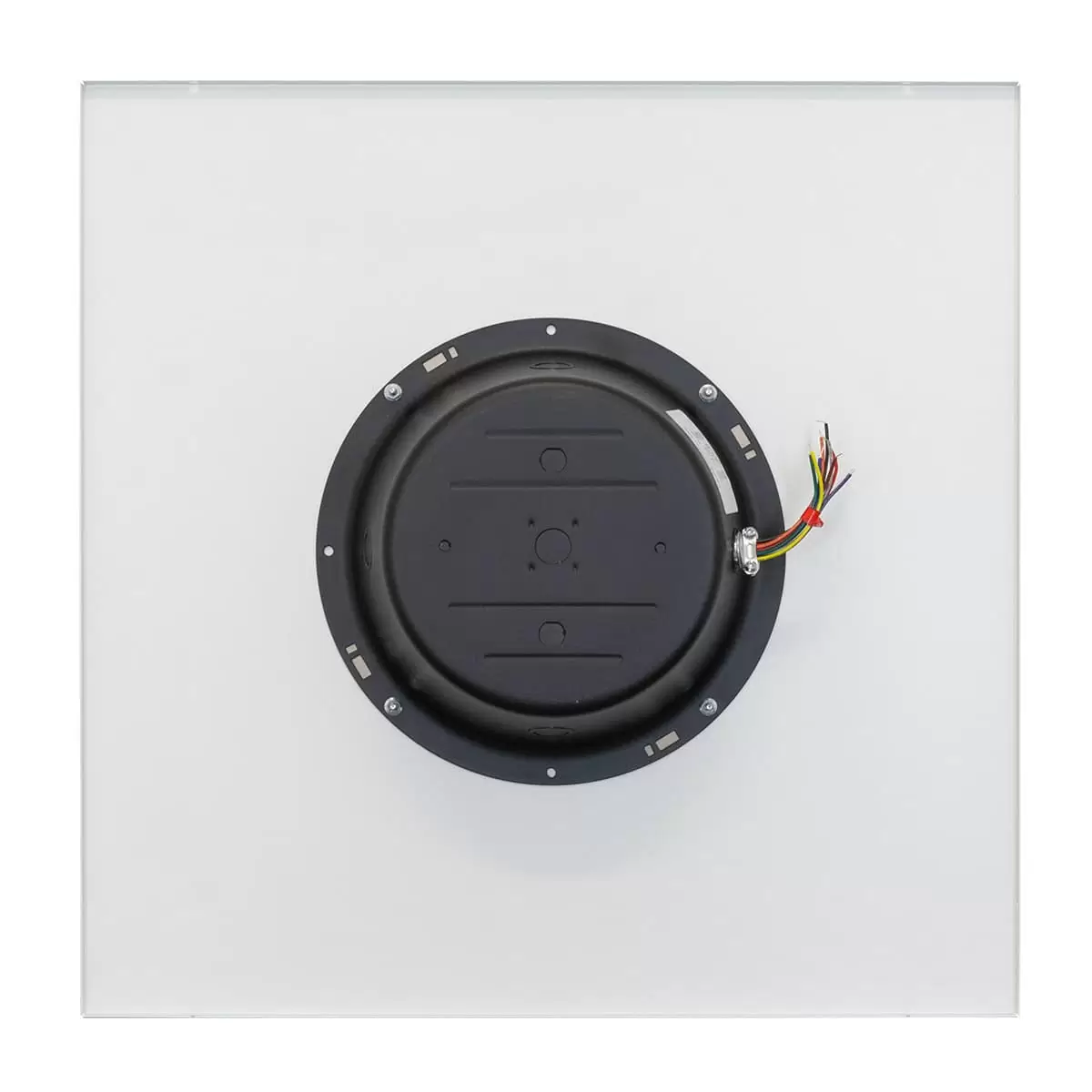

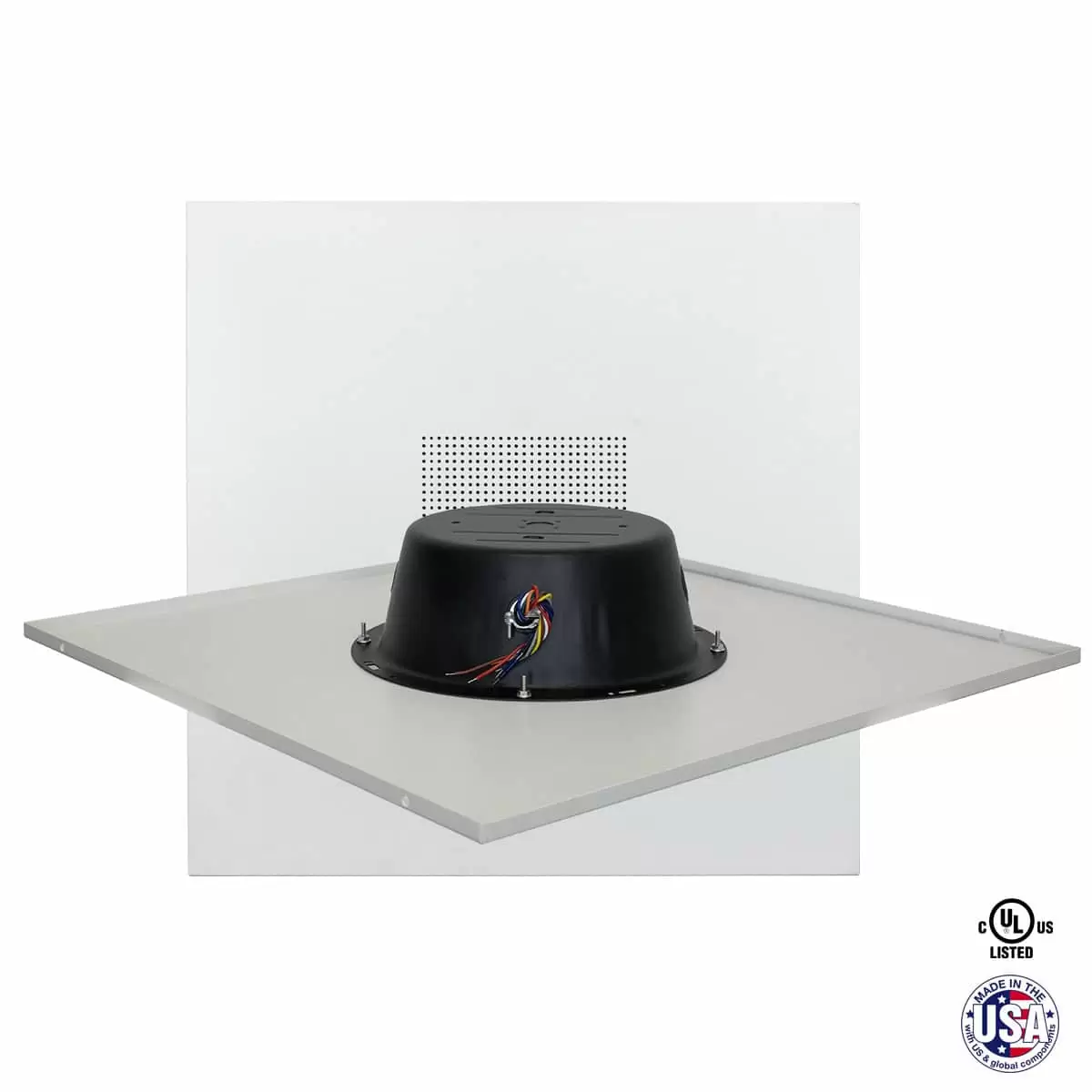

LT2S SERIES Speakers are pro systems made for quick installation in suspended lay-in tile ceilings. The 2x2 assembly replaces a 2x2 ceiling tile. This model features an 8" 15W dual cone driver, 25V/70V dual voltage transformer, 2x2 white frame with 7" square grille pattern and 0.147 cu.ft. enclosure with or without volume control (VC) knob.

Add to Favorites

Compare

Driver (810): 8 in. 15W dual cone driver with 10 oz. magnet, frequency response of 54Hz-11.6kHz (±6dB) and 50Hz-20kHz (±6.6dB), and average sensitivity of 97.9dB measured 1W/1M. Conical dispersion 95 degrees.
Transformer: Dual voltage 25V/70V transfomer with taps at .3, .6, 1, 2, 5.5W
Grille (2×2 Frame): Square 7-inch grille pattern is centered in steel frame with white powder coat finish.

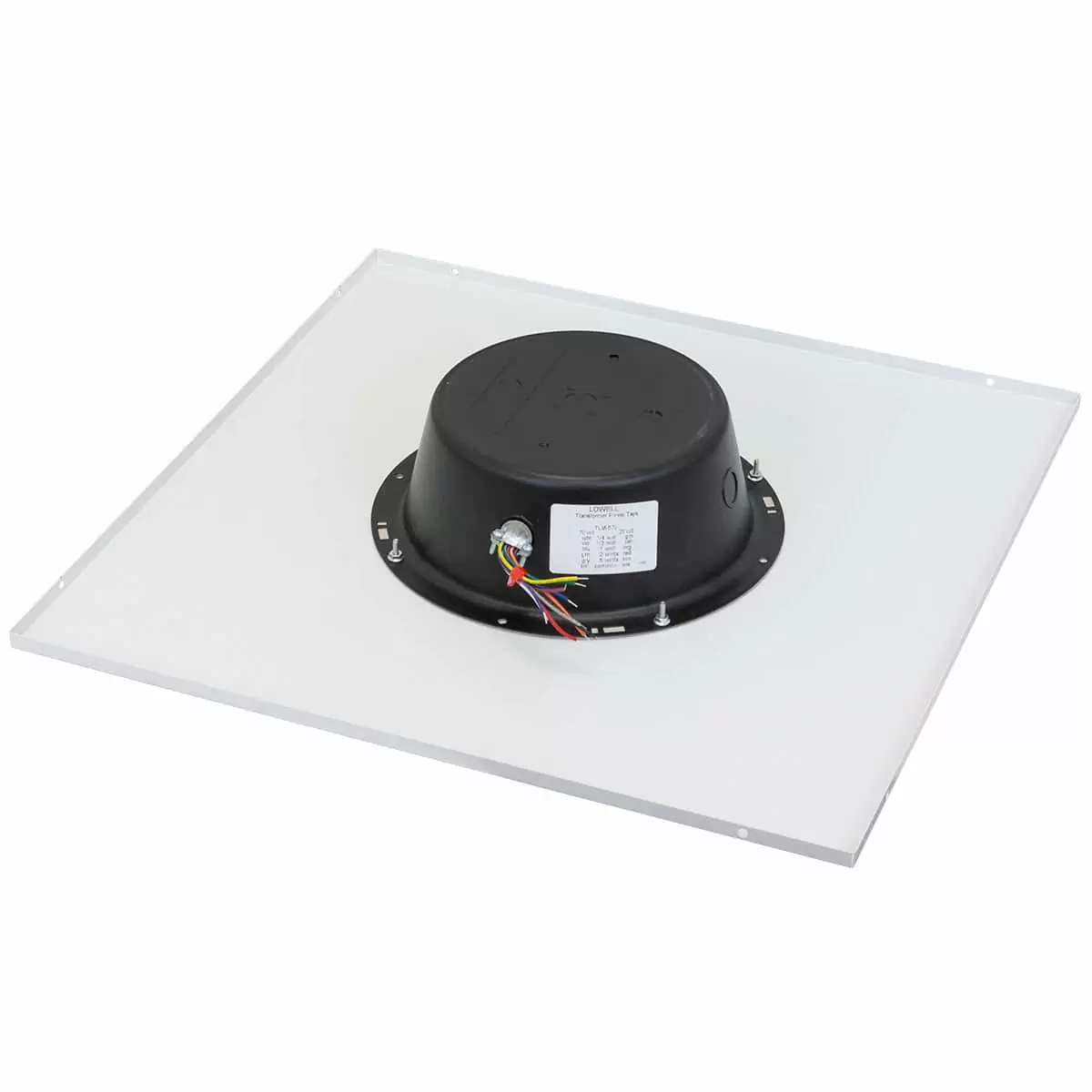

Enclosure (8XD4): .147 cu.ft. steel with speaker leads that exit through a metal clamp for fast connection. Black.
Mounting Aids: Restraint tabs.

Spec Sheet: 2441-LT2S-Series

TAA compliant
BAA compliant
USA-certified steel
Made in USA

The loudspeaker for suspended lay-in tile ceilings shall be Lowell Model LT2S-810-72-BB. The 2×2 assembly shall directly replace a 2×2 ceiling tile. Each unit shall include a factory-mounted driver mounted to steel grille frame with white powder-coat finish. The driver shall be 8″ dual cone with 15W power rating. It shall have a magnet weight of 10 ozs., frequency response of 54Hz-11.6kHz (±6dB); 50Hz-20kHz (±6.6dB) and average sensitivity of 97.9dB measured 1W/1M. The dual voltage transformer (25V/70V) shall feature primary taps at 0.3, 0.6, 1, 2 and 5.5W. The system shall include a steel backbox (0.147 cu.ft. volume) with leads exiting through a metal clamp, and it shall have a smooth-black powder-coat finish. The assembly shall be manufactured in the USA using USA-certified steel, and it shall be Trade Agreement Act (TAA) and Buy American Act (BAA) compliant.
