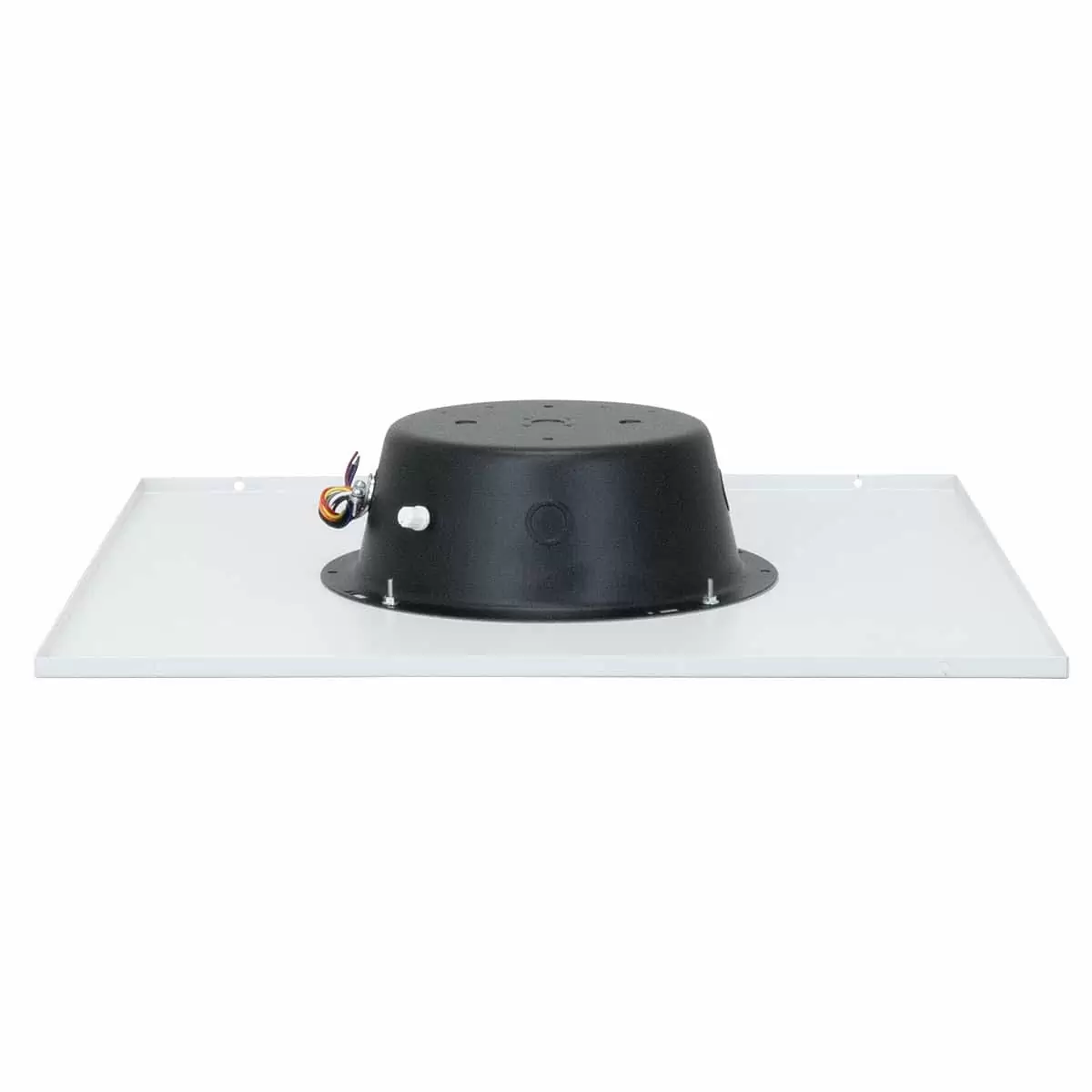

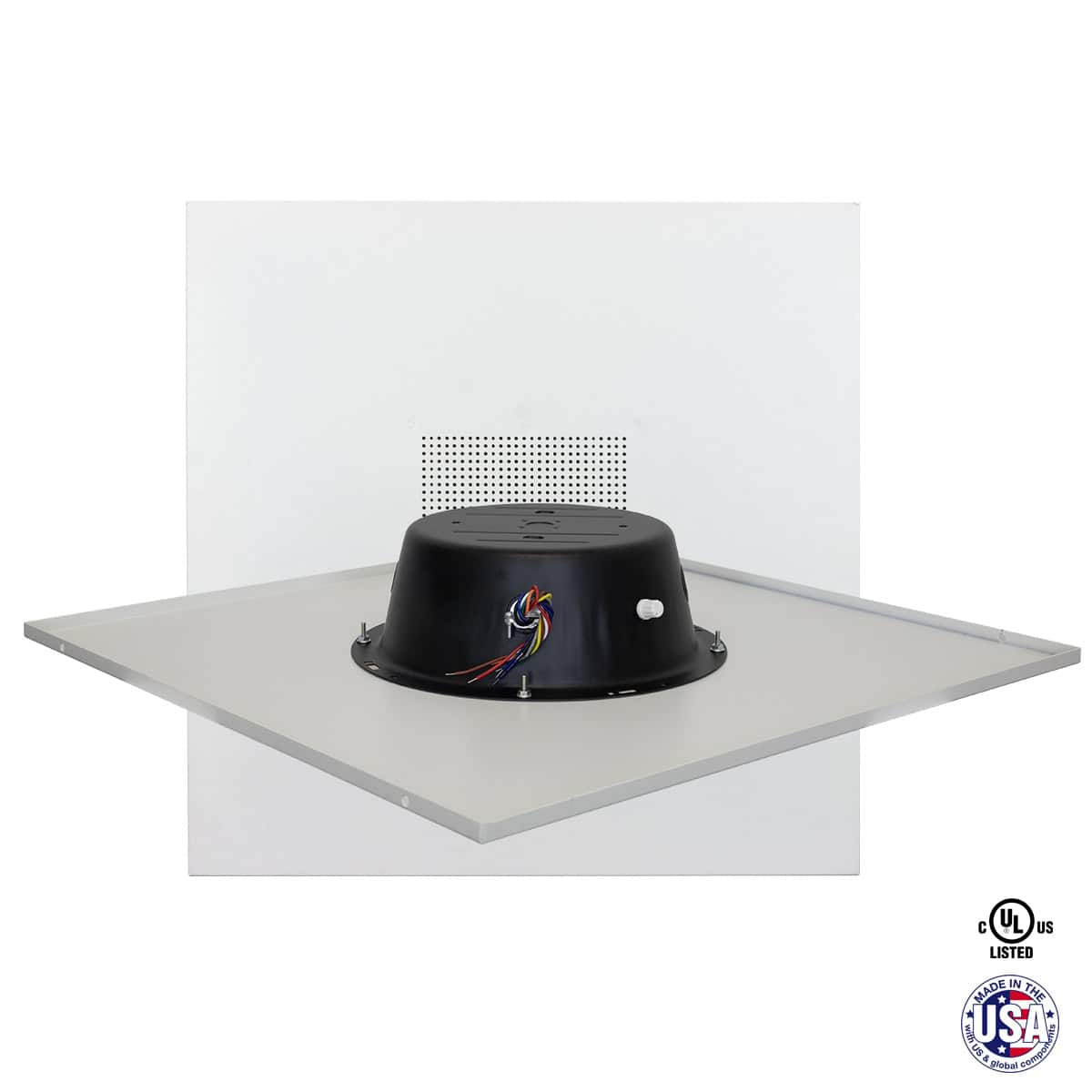

8 inch Dual Cone Lay-in Tile Ceiling Speaker with 25/70V Xfmr, 2x2 Frame, 7-inch Grille, Enclosure,

Name: 8 inch Dual Cone Lay-in Tile Ceiling Speaker with 25/70V Xfmr, 2x2 Frame, 7-inch Grille, Enclosure,
SKU: LT2S-810-72-BB-VC
Availability: InStock

LT2S-810-72-BB-VC

$191.20 MSRP

Quick-install speaker system for suspended tile ceilings features an 8-inch dual cone driver with dual voltage (25V/70V) transformer, 7-inch square grille centered in 2x2 steel frame, enclosure and adjustable volume control knob. For commercial paging and background music.

Add to Favorites

Compare

Driver (810): 8 in. 15W dual cone driver with 10 oz. magnet, frequency response of 54Hz-11.6kHz (±6dB) and 50Hz-20kHz (±6.6dB), and average sensitivity of 97.9dB measured 1W/1M. Conical dispersion 95 degrees.
Transformer (TLM-572): Dual voltage 25V/70V transformer with taps at .3, .6, 1, 2, 5.5W
Enclosure (8XD4): 0.147 cu.ft. steel backbox with speaker leads that exit through a metal clamp for fast connection. Black.
Grille (2 x 2 Frame): Square 7-inch grille pattern is centered in 2×2 steel frame with white powder coat finish.
Mounting Aids: Restraint tabs.

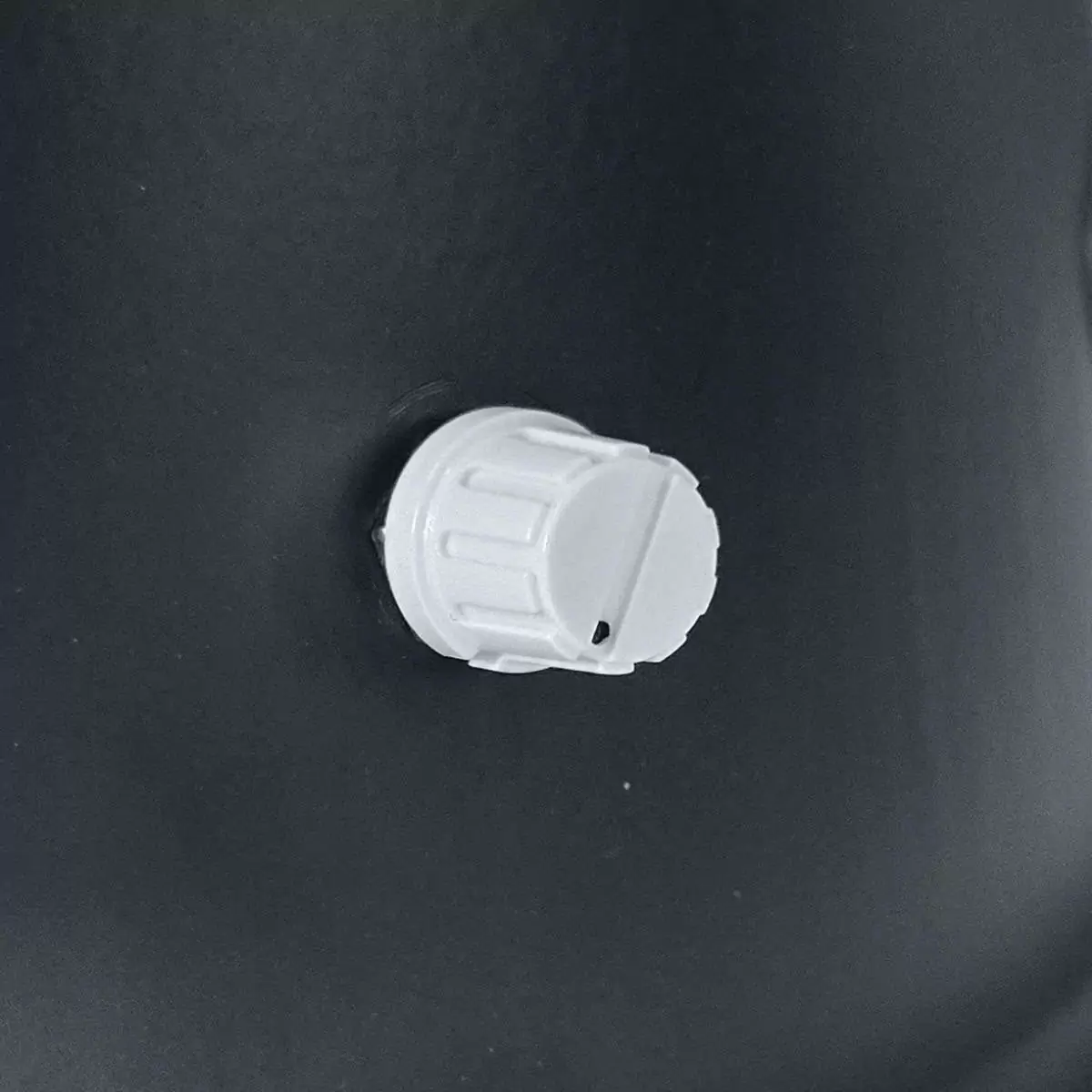

Volume Control

Spec Sheet: 2441-LT2S-Series

TAA compliant
BAA compliant
USA-certified steel
Made in USA

The loudspeaker for suspended lay-in tile ceilings shall be Lowell Model LT2S-810-72-BB-VC. The 2×2 assembly shall directly replace a 2×2 ceiling tile. Each unit shall include a factory-mounted driver mounted to steel grille frame with white powder-coat finish. The driver shall be 8″ dual cone with 15W power rating. It shall have a magnet weight of 10 ozs., frequency response of 54Hz-11.6kHz (±6dB); 50Hz-20kHz (±6.6dB) and average sensitivity of 97.9dB measured 1W/1M. The dual voltage transformer (25V/70V) shall feature primary taps at 0.3, 0.6, 1, 2 and 5.5W. The system shall include a steel backbox (0.147 cu.ft. volume) with leads exiting through a metal clamp, it shall feature a hand-adjustable volume control knob, and it shall have a smooth-black powder-coat finish. The assembly shall be manufactured in the USA using USA-certified steel, and it shall be Trade Agreement Act (TAA) and Buy American Act (BAA) compliant.
