200LVC-RM-DB: Attenuator 200W 70/25V - Image 2

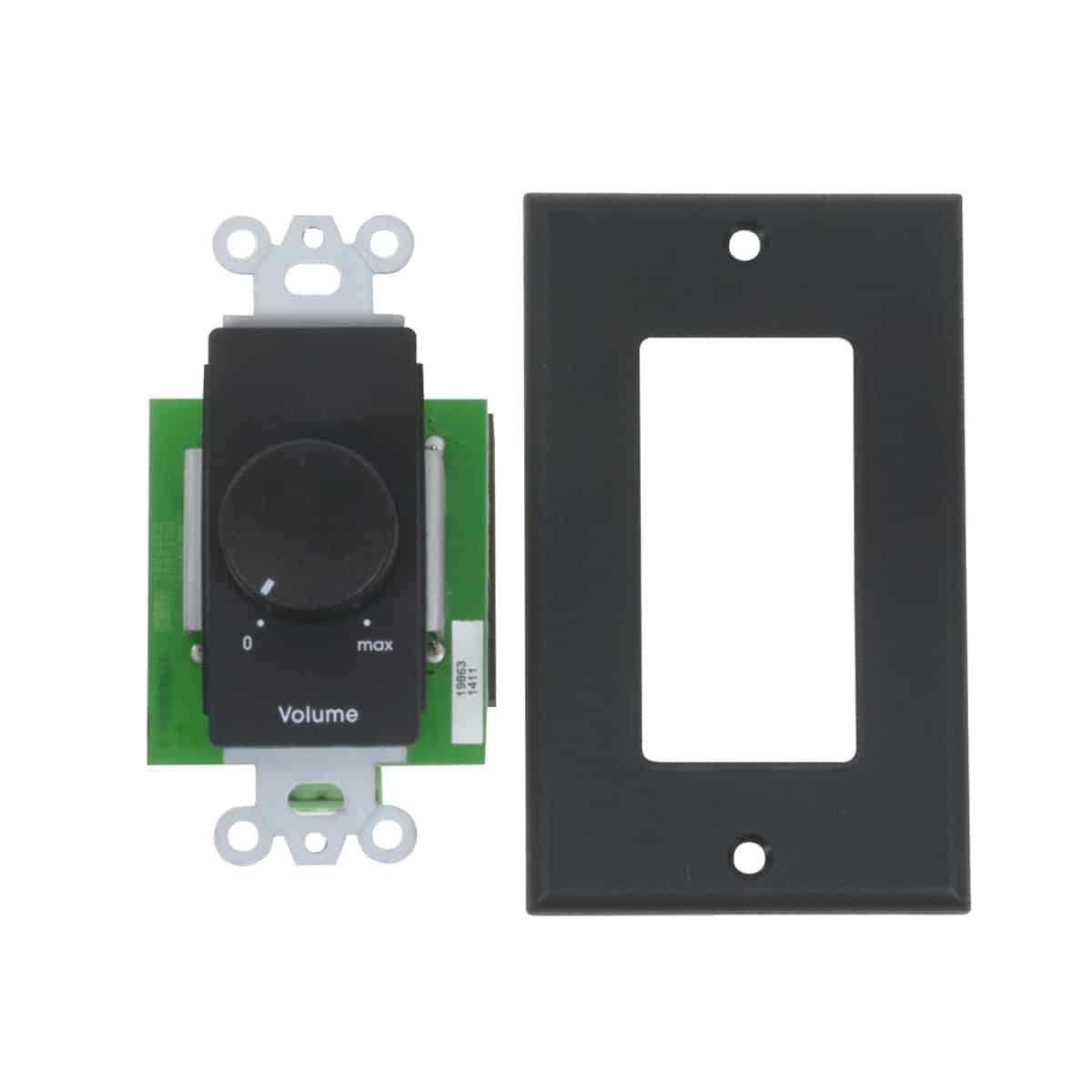

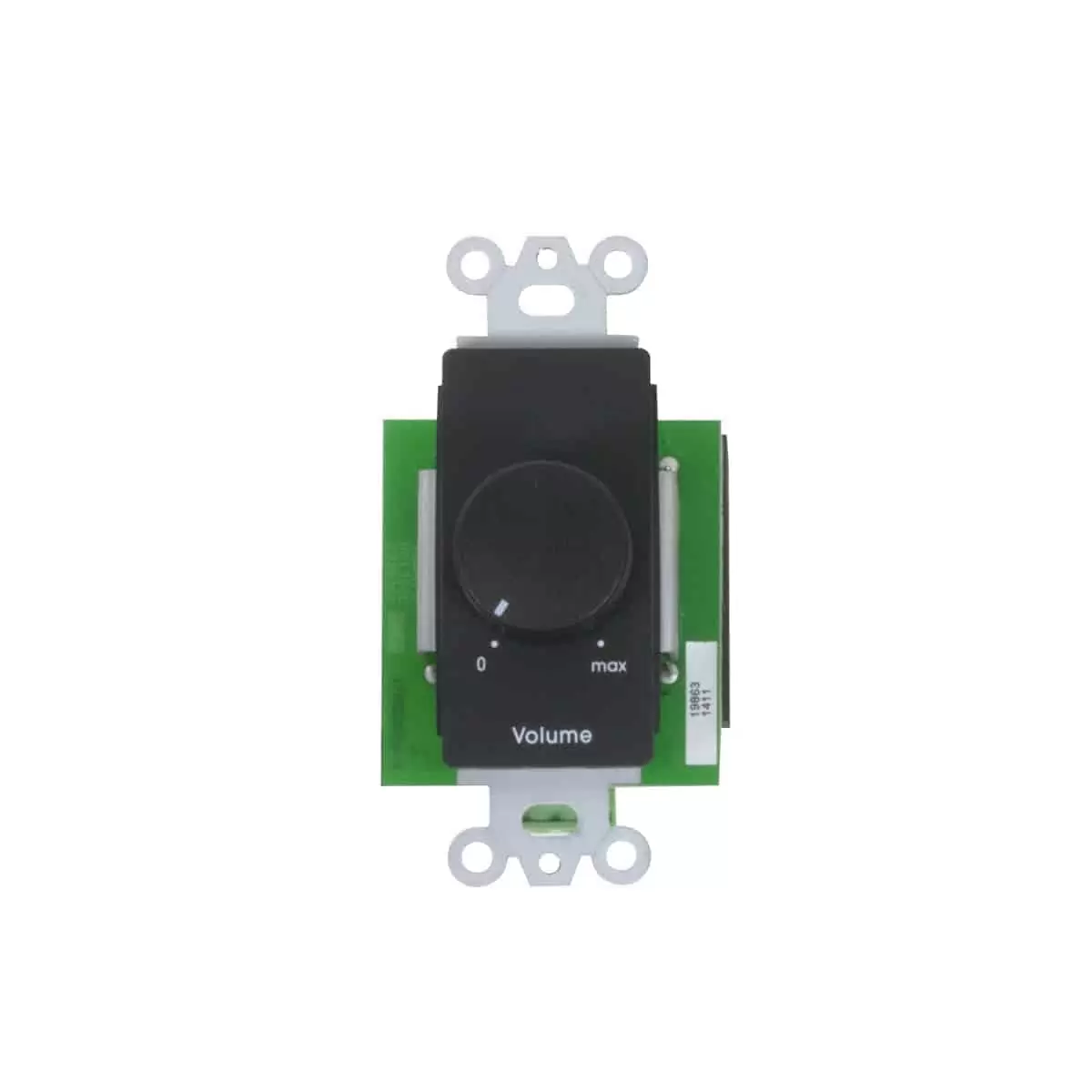

200W Mono Volume Control with Decorator Subplate, Black

Name: 200W Mono Volume Control with Decorator Subplate, Black
SKU: 200LVC-RM-DB
Availability: InStock

200LVC-RMDB

$163.80 MSRP

The 200W mono autoformer attenuator volume control for use with 70V single or multiple speaker lines features a rotary dial, 200W power rating, 3dB per step attenuation (two steps of 6dB each before off) and Phoenix style plug-in screw termination strips. Includes decorator style sub-plate to mount in a rack panel.

Add to Favorites

Compare

Power Rating: 200W
Attenuation: 3dB per step (two steps of 6dB each before off)
Use with: 70V speaker line
Activation: Rotary dial
Volume Positions: 0-10
Termination: Phoenix-style
Wire Capacity: 14-gauge
Decorator style subplate

Spec Sheet: 2235-200LVCRMDB
Install: 20091-200LVC

Assembled in USA, China components
ETL Listed (UL60065, UL2043)

The ETL Listed (UL60065, UL2043) volume control shall be Lowell Model 200LVC-RMDB with 200W power rating, 3dB per step attenuation and two 6dB positions before “Off.” The control shall have plug-in termination for up to 14-gauge wire for 70V input connections from the amplifier and 70V output to the speaker/transformer assemblies. It shall feature a black rotary knob and a black decorator style subplate.

D8P-ID-3: Rackmount panel for attenuator installation
D9P-ID-3: Rackmount panel for attenuator installation
