- Material: 11-gauge steel with smooth black semi-gloss finish

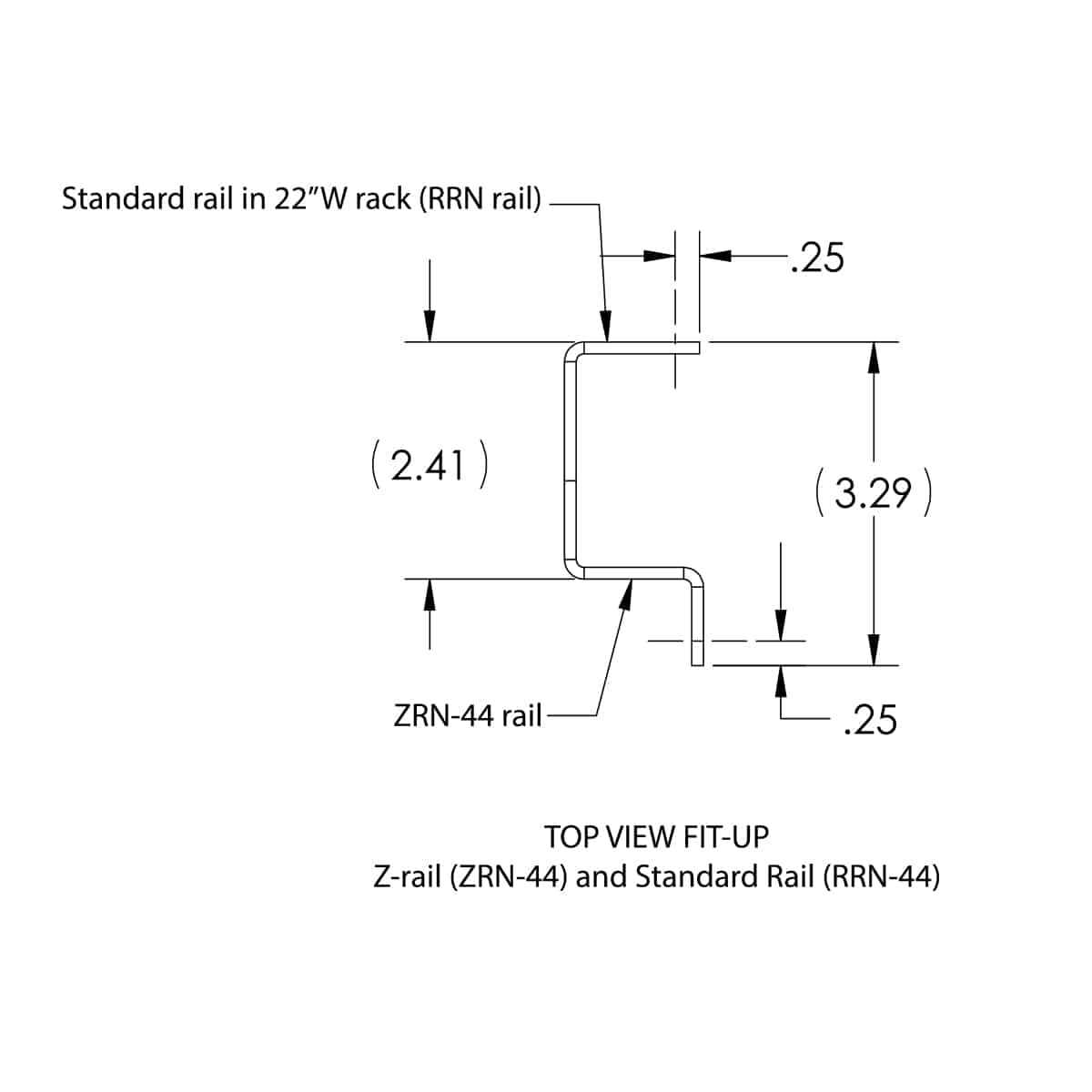

- Dimensions: 1.00 in. x 1.413 in. x 1.00 in. x 77.00 in.
- Printed RU increments to aid equipment mounting
- Vertical array of 1.50 in. x 0.75 in. obrounds for cabling
- Mounting hardware
- Sold in pairs
- Made in the U.S.A.
- Certified U.S. steel

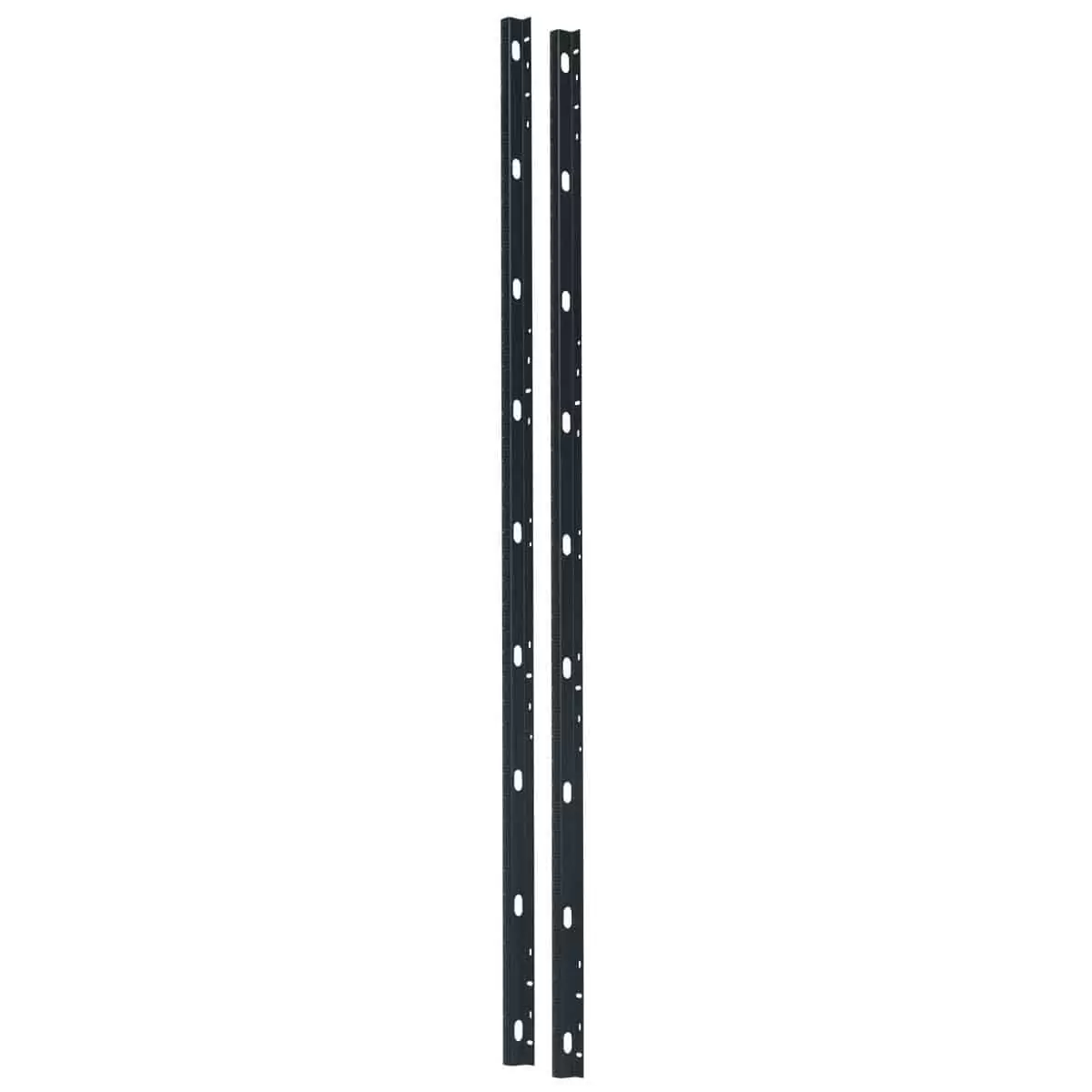

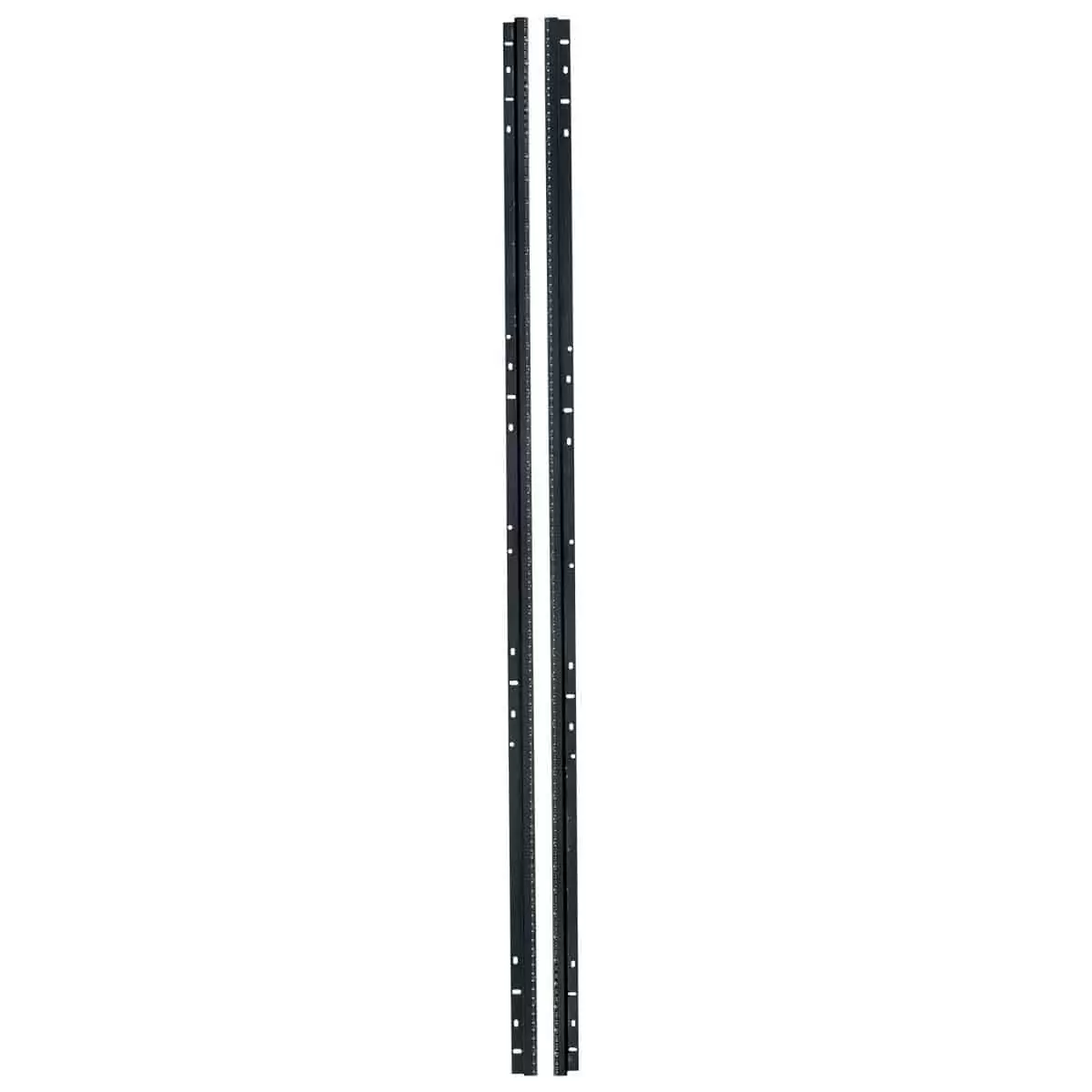

The rack shall include Lowell Model ZRN-44 rail kit, which shall feature two 11-gauge certified US steel “Z” offset rails. Featuring threaded 10-32 holes on E.I.A. spacing with printed RU increments, and a vertical array of 1.50 in. x 0.75 in. obrounds for cabling. Each rail shall measure 1.00 in. x 1.413 in. x 1.00 in. x 77.00 in. and shall weigh 7.1 lbs.
Rack Screws:
- RSP Series: Phillips Finish-head, 5.1 hardness, 10-32 x .875
- RSM Series: Phillips Truss-head, 302 stainless steel, 10-32 x .75
- RS Series: Phillips Truss-head, 10-32 x .75
- RSV Series: Torx star post head, 10-32 x .875
- RSR Series: Robertson square head, 10-32 x .875
Brackets:
- CHB Series: Chassis brackets support heavy equipment in 22″W/23″W racks
