Steel Enclosure for 12 inch Speaker, Recessed

Name: Steel Enclosure for 12 inch Speaker, Recessed
SKU: XCP1210
Price: 204.00 USD
Availability: InStock

XCP-1210 (10.5"D)

$204.00 MSRP

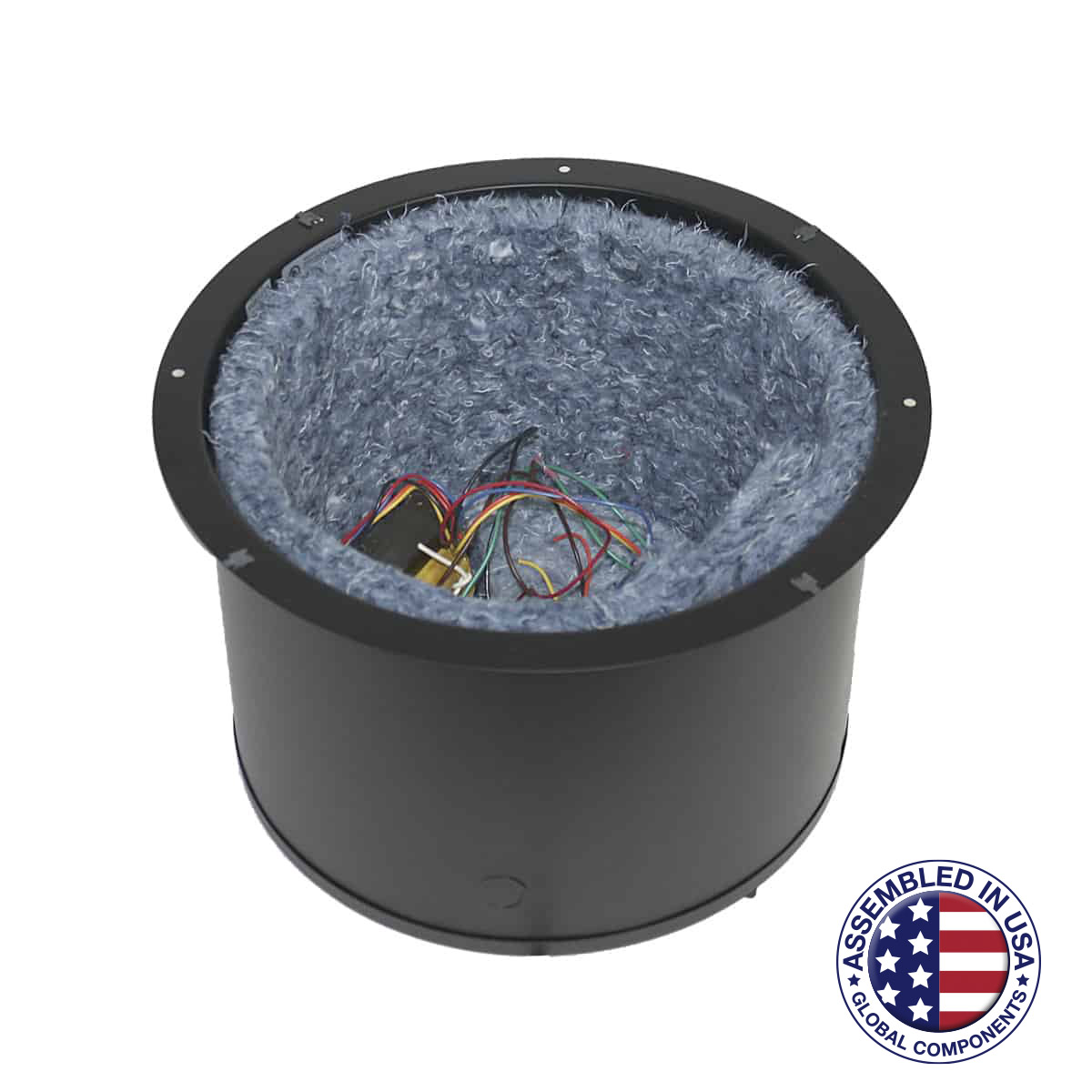

Acoustic enclosure model XCP-1210 with flat grille mounting flange is for recessed installation of 12-inch speaker in new drywall construction or tile ceiling applications where plenum space is limited. The enclosure includes a bracket to mount an optional transformer. U.S. steel with black powder epoxy finish.

Add to Favorites

Compare

Material: Welded 22-gauge unitized steel
Diameter: 14.38 in.
Depth: 10.50 in.
Volume: 0.9 cu.ft.
Acoustical Treatment: Undercoated, 1.5 in. batting
Mounting Aids: U-clip, bracket will accept optional transformer No. TLM-10070A, knockouts
For Grille Type: Screw-mount

Spec Sheet: 1335-XCP1210

Enclosure is made in U.S.A. with certified U.S. steel

The recessed backbox for 12 in. speakers shall be Lowell Model No. XCP1210. It shall be fabricated of 22-gauge steel and undercoated to eliminate acoustic and mechanical resonance. The backbox shall measure 14.38 in. diameter x 10.5 in. deep. It shall be have four 0.5–0.75 in. compound knockouts for conduit and an internal bracket with studs (to mount optional transformer Model No. TLM-10070A). Backbox shall be finished in black powder epoxy and have a flat mounting flange.

Screw-Mount Grilles: RS12-AW, WB-12
