WXR-226 - DISCONTINUED

Name: WXR-226 - DISCONTINUED
SKU: WXR-226
Availability: InStock

SEE ALTERNATIVE: WXR-2212

$329.60 MSRP

DISCONTINUED | Out of Stock
Recommended Alternative: WXR-2212

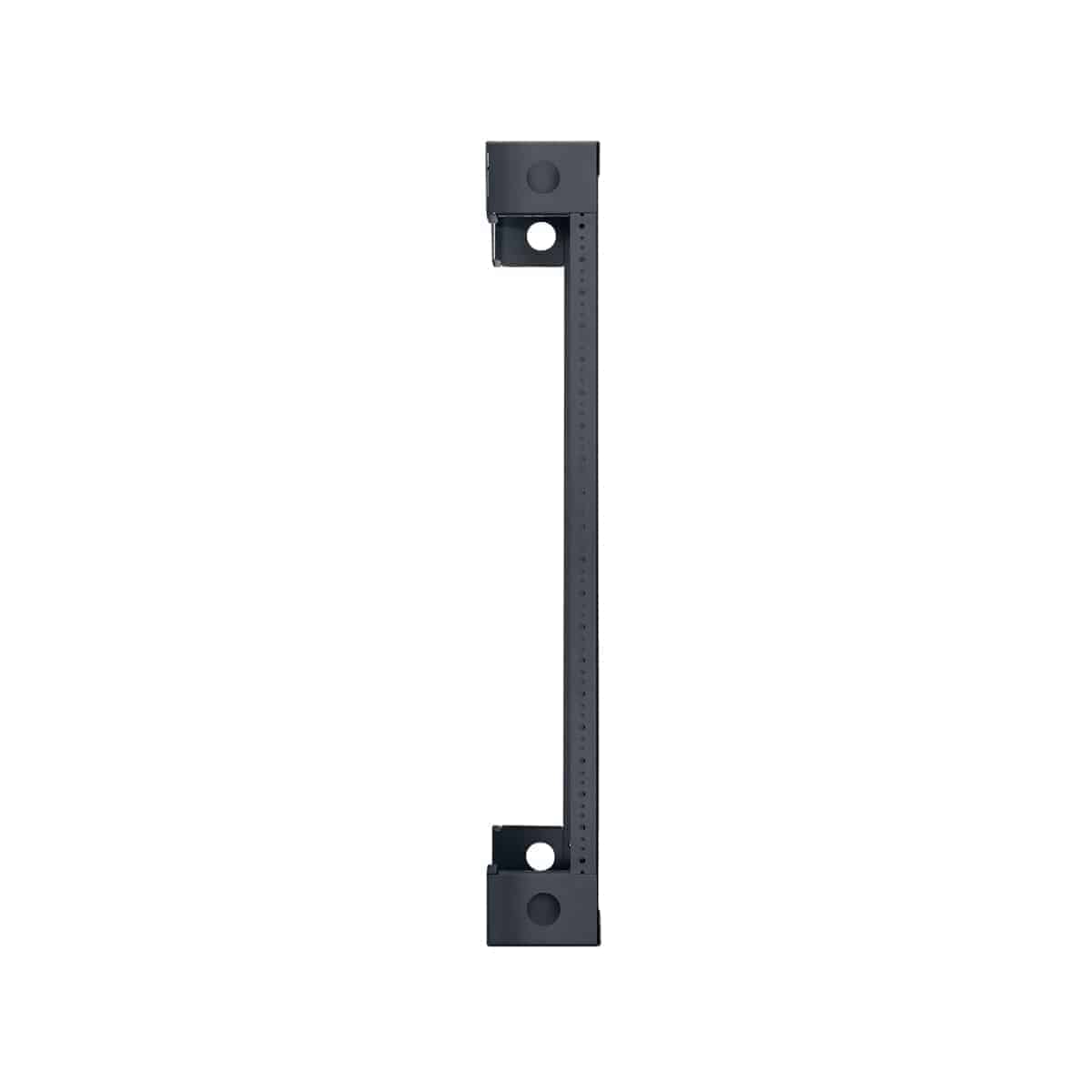

Slim open-frame wall rack mounts 19-inch equipment to a wall or backboard. Top and base are heavy gauge steel that can be mounted on 16-inch centers to form a stable platform for patch panels, routers, switches, telecommunications, or computer equipment. Steel with black powder epoxy finish. Ships unassembled.

Add to Favorites

Compare

14-gauge steel top and base
11-gauge steel corner post rails tapped 10-32 (1 pr.)
Upper and lower front vents
Open sides with obrounds in top/base for cable management
Smooth black powder epoxy finish
Load Capacity: 200 lbs.
Ships unassembled

Rack Space: 22U
Height: 42.28 in.
Width: 19.21 in.
Depth: 6.00 in. (5.85 usable)

Spec Sheet: 2049-WXR226
Install: 23504A-WXR
CAD Drawings: WXR-226

>The slim open frame wall-mount rack shall be Lowell WXR-2218 with overall dimensions of 42.28″H x 6.00″D x 19.21″W. It shall provide 22 rack units of panel space. Rack construction shall be 14-gauge steel top/base with (1 pr.) 11-gauge steel corner post rails tapped 10-32 on E.I.A. spacing, with smooth black powder epoxy finish. The rack shall be manufactured in the U.S.A. with certified U.S. steel. It shall have a load capacity of 200 lbs. when properly mounted. It shall ship unassembled.

Cable management
