Rack Shelf with Adjustable Width | VWS-218 - CLOSEOUT

Name: Rack Shelf with Adjustable Width | VWS-218 - CLOSEOUT
SKU: VWS-218
Availability: InStock

Special Pricing - While Supplies Last

$115.40 MSRP

CLOSEOUT | Call 800-325-9660 for Availability

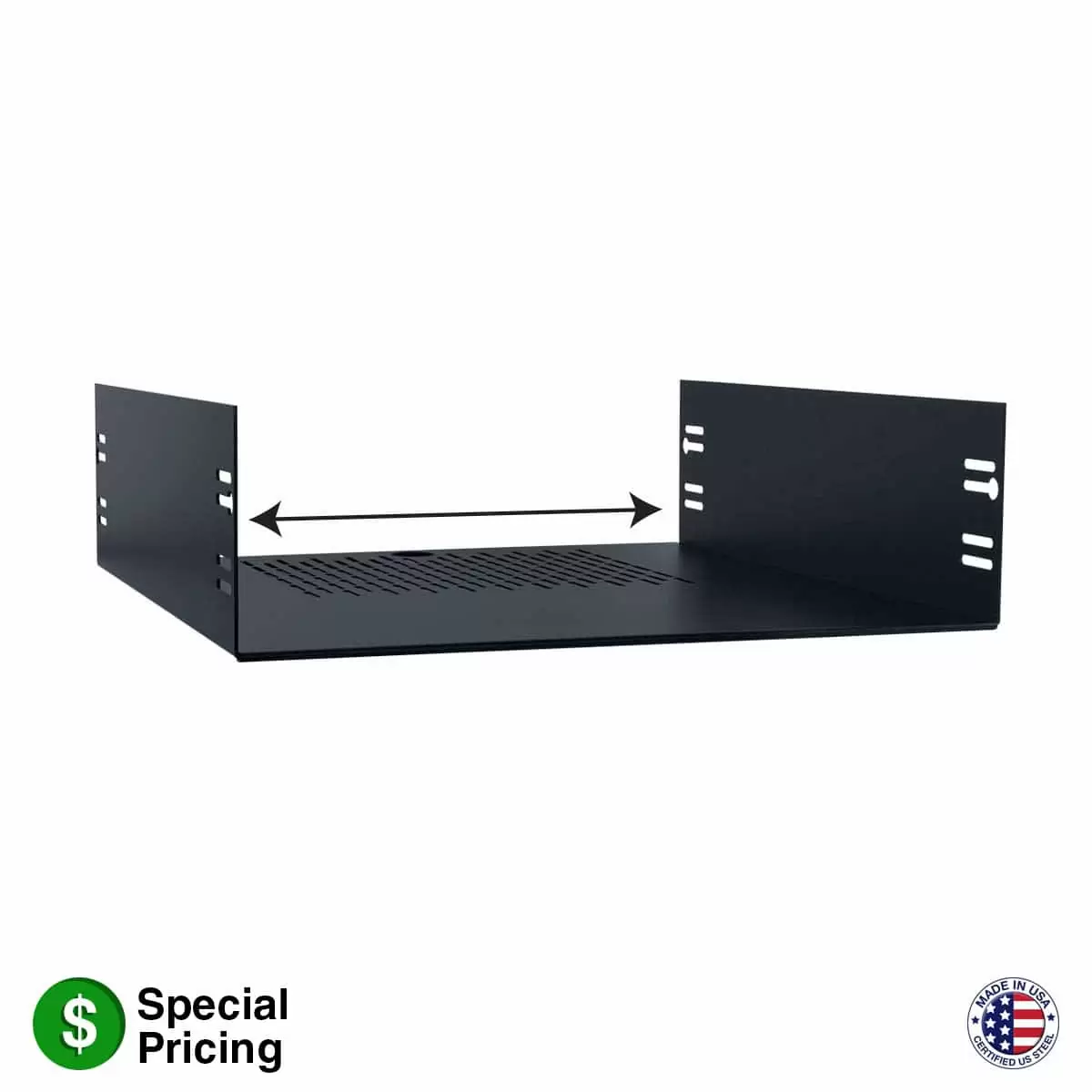

Three-piece rack shelf for wide equipment has side supports to expand from 17.5 to 22 inches. It provides extra mounting width behind the rack's front rails. Steel with black powder epoxy finish. For use with racks that are 21 rack units or taller.

Add to Favorites

Compare

Mounts behind front rack rails (screws into holes on inside angle of rails) using two standard rack screws with nuts on inside slots of each side.
Height: Side supports can be installed with long or short side up to emulate 2U or 3U panel space
Depth: 18 in.
Center section is 16-gauge steel; side supports are 14-gauge steel.
Bottom vents and cable access opening
10-32 mounting screws with nuts
Load Capacity: 50 lbs.

Spec Sheet: 1372-VWS218
Install Sheet: 17242

The rackmount shelf shall be Lowell Model No. VWS-218 which shall have a depth of 18 inches, adjustable width of 17.5–22 in. and panel space of 2 or 3 rack units, depending on how it is assembled. Load capacity shall be 50 lbs. The shelf shall include provisions for cable entry and wire lacing. The center section shall be formed from 16-gauge US steel; side supports shall be formed from 14-gauge US steel. The shelf shall be finished in black powder epoxy paint. It shall include six 10-32 mounting screws with nuts.
