Rackmount power panel, hooded light, 8 outlets

PDU with 8–15A Outlets, Hooded Light | U181RL-LC

Name: PDU with 8–15A Outlets, Hooded Light | U181RL-LC
SKU: U181RL-LC
Availability: InStock

Special Pricing - While Supplies Last

$145.00 MSRP

Call 800-325-9660 for Availability
Recommended Alternative: ACR-1506-LTS

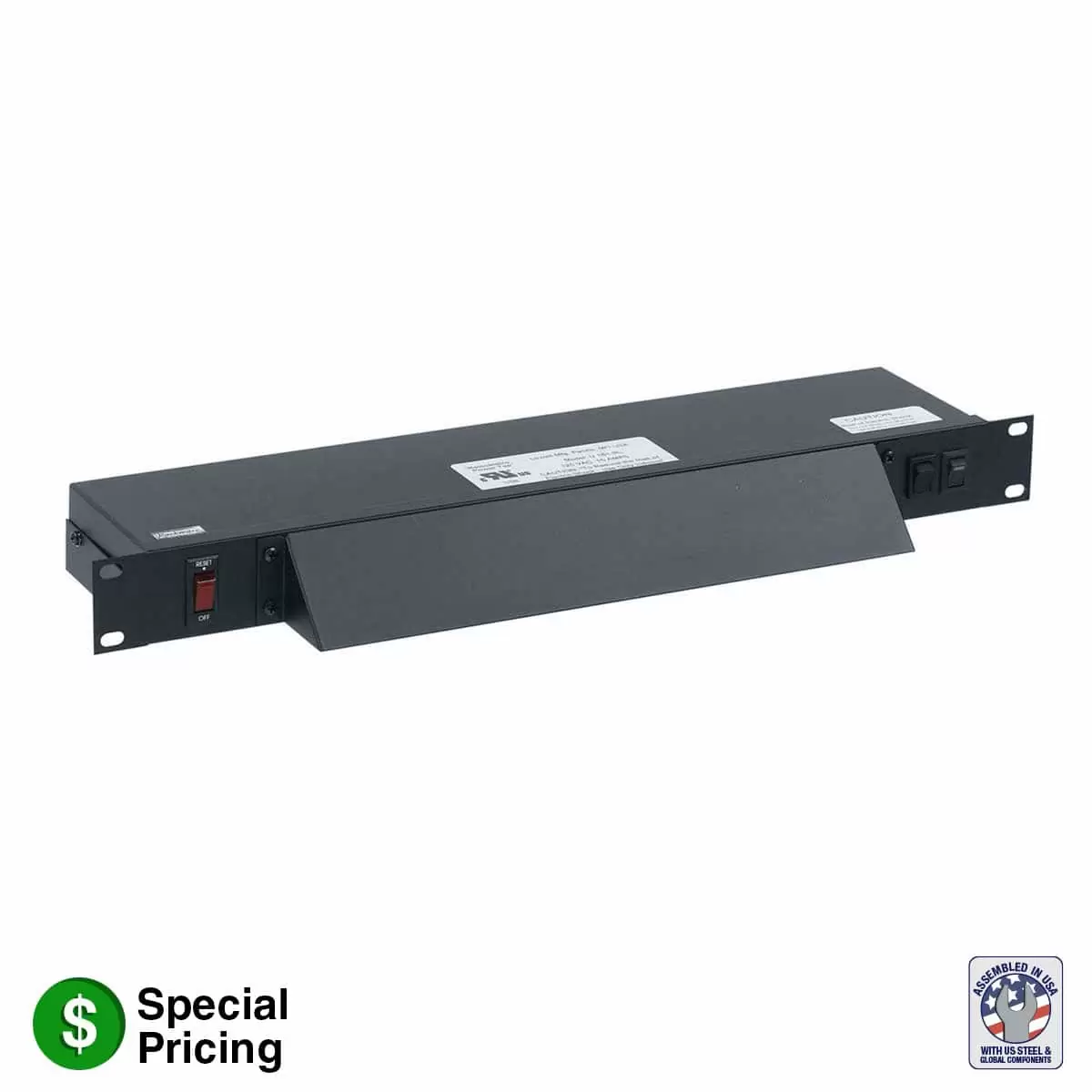

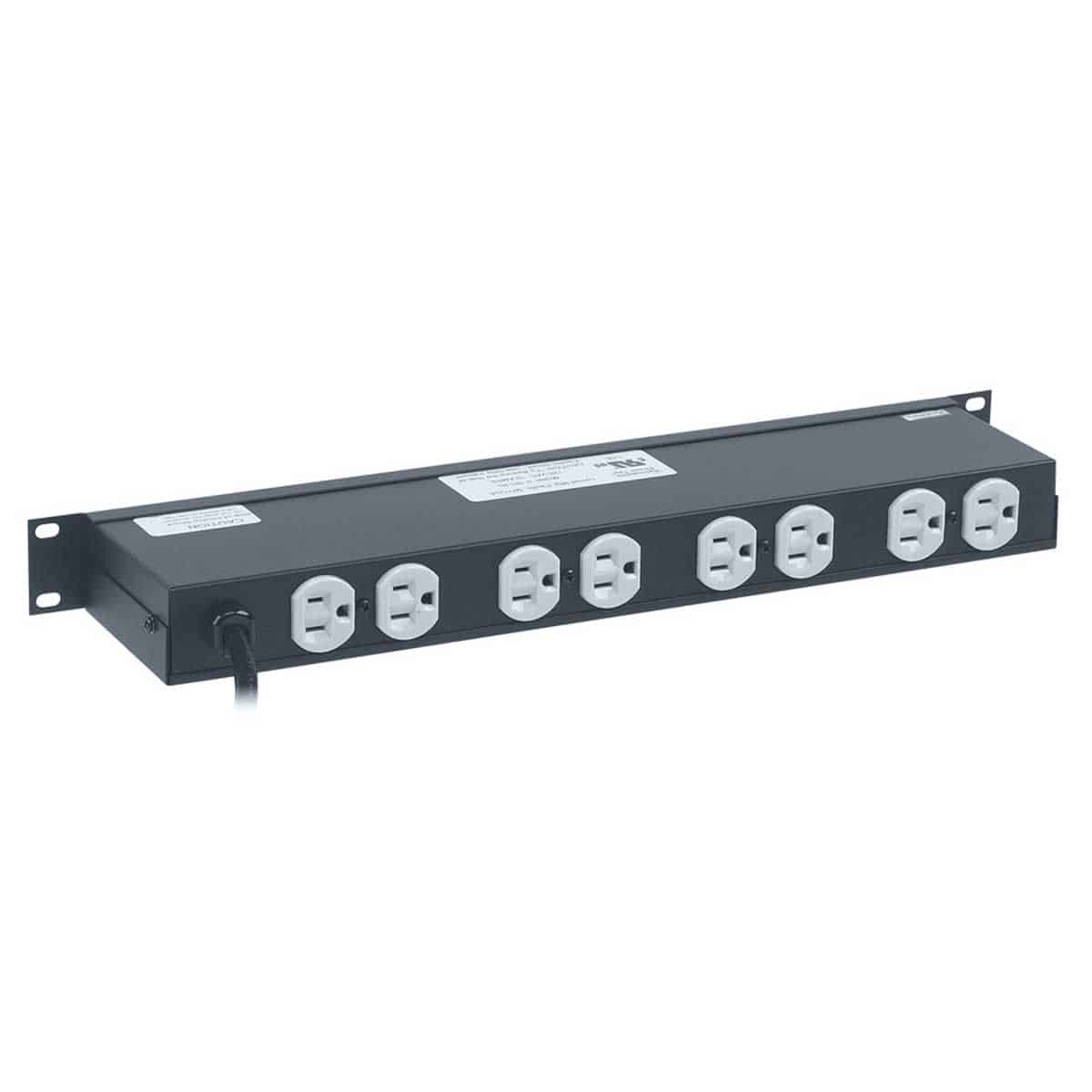

PDU model U181RL-LC is a shallow 4-1/2 inch rack-mount panel with a hooded white light. The light is controlled by a front on/off switch and a high/low brightness switch for intensity. The panel has eight (8) NEMA 5-15R receptacles in the rear, which are all controlled by the front switch. Includes a 15-ft. cord with NEMA 5-15P plug.

Add to Favorites

Compare

Power Rating: 120 VAC, 60 Hz, 15A, 1800W
Outlets: 8 (15A) outlets in rear are controlled by a lighted rocker switch on front.
Termination: 15 ft. attached cord with NEMA 5-15P plug
Chassis: 19 in. x 4.375 in. x 1.75 in. (1U)
Single hooded light produces white light. On/off switch plus hi/low brightness switch for lamps. Includes two bulbs.
Made in U.S.A. with global components

Spec Sheet: 1914-U181RLLC

EIA/TIA Compliant
Certified U.S. Steel
Assembled in U.S.A. with global components

The rackmount panel shall be Lowell U181RL-LC with 15 ft. cord. It shall feature a 15W power rating and include hooded white lights in front and (8) 15A NEMA outlets in back. The front shall feature a lighted rocker power switch, (2) 6W lamps under a hood, and switches for power outlets (on/off), lamp (on/off), and lamp (brightness). The chassis shall be steel construction with black powder epoxy finish, measuring 19″W x 1.75″H x 4.375″D plus 1.5″D for front projection hood assembly.
