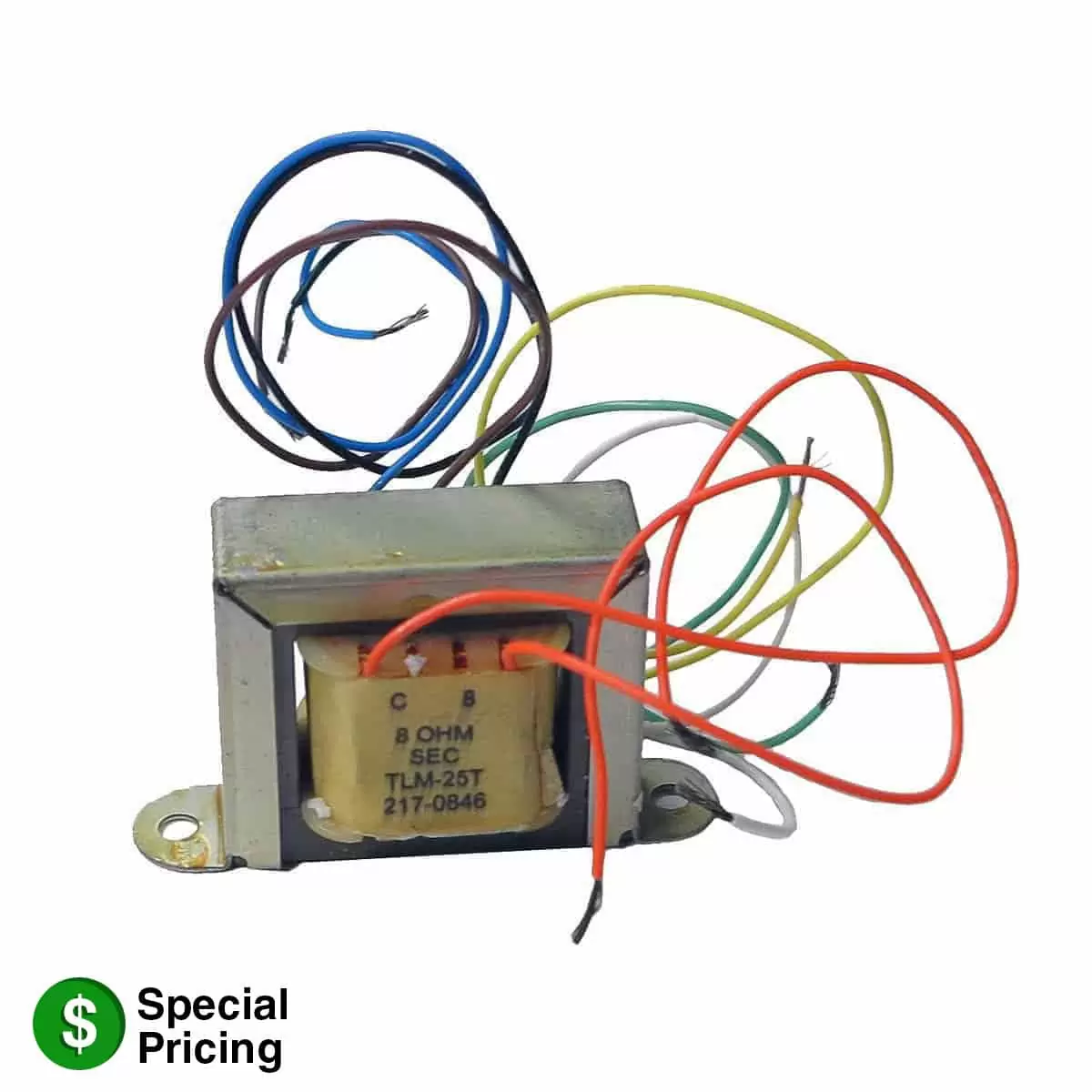

Line Matching Transformer, 25V 4W | TLM-25T - CLOSEOUT

Name: Line Matching Transformer, 25V 4W | TLM-25T - CLOSEOUT
SKU: TLM-25T
Availability: InStock

Special Pricing - While Supplies Last

$15.60 MSRP

CLOSEOUT | Call 800-325-9660 for Availability

Lowell transformers have been developed for high quality audio and general purpose paging. The wide frequency response, low insertion loss, and high power handling are critical considerations.

Add to Favorites

Compare

Primary Voltage: 25V
Power Rating: 4W
Primary Taps: .5, 1, 2, 4W
Secondary Impedance: 8ohms
Frequency Response: 60Hz–15kHz (±1dB)
Lead Length: 8 in.
Color-coded
Teflon-coated

Spec Sheet: 2191-TLM25T

The line matching transformer shall be Lowell model TLM-25T. Primary voltage shall be 25V with a power rating of 4 watts. Primary taps shall be available at 4, 2, 1 and .5 watts. Secondary impedance taps shall be available at 8ohms. Taps shall have color-coded, teflon-coated leads. Frequency response of the transformer shall be 60Hz–15kHz ±1dB with insertion loss not to exceed 0.8dB.
