SVP Series, 1U panel with staggered hole vent pattern -- 35% open area

SVP-4 | Steel Vent Panel with 35% Open Area - CLOSEOUT

Name: SVP-4 | Steel Vent Panel with 35% Open Area - CLOSEOUT
SKU: SVP4
Availability: InStock

Special Pricing - While Supplies Last

$37.20 MSRP

CLOSEOUT | Call 800-325-9660 for Availability
Recommended Alternative: SVP-2

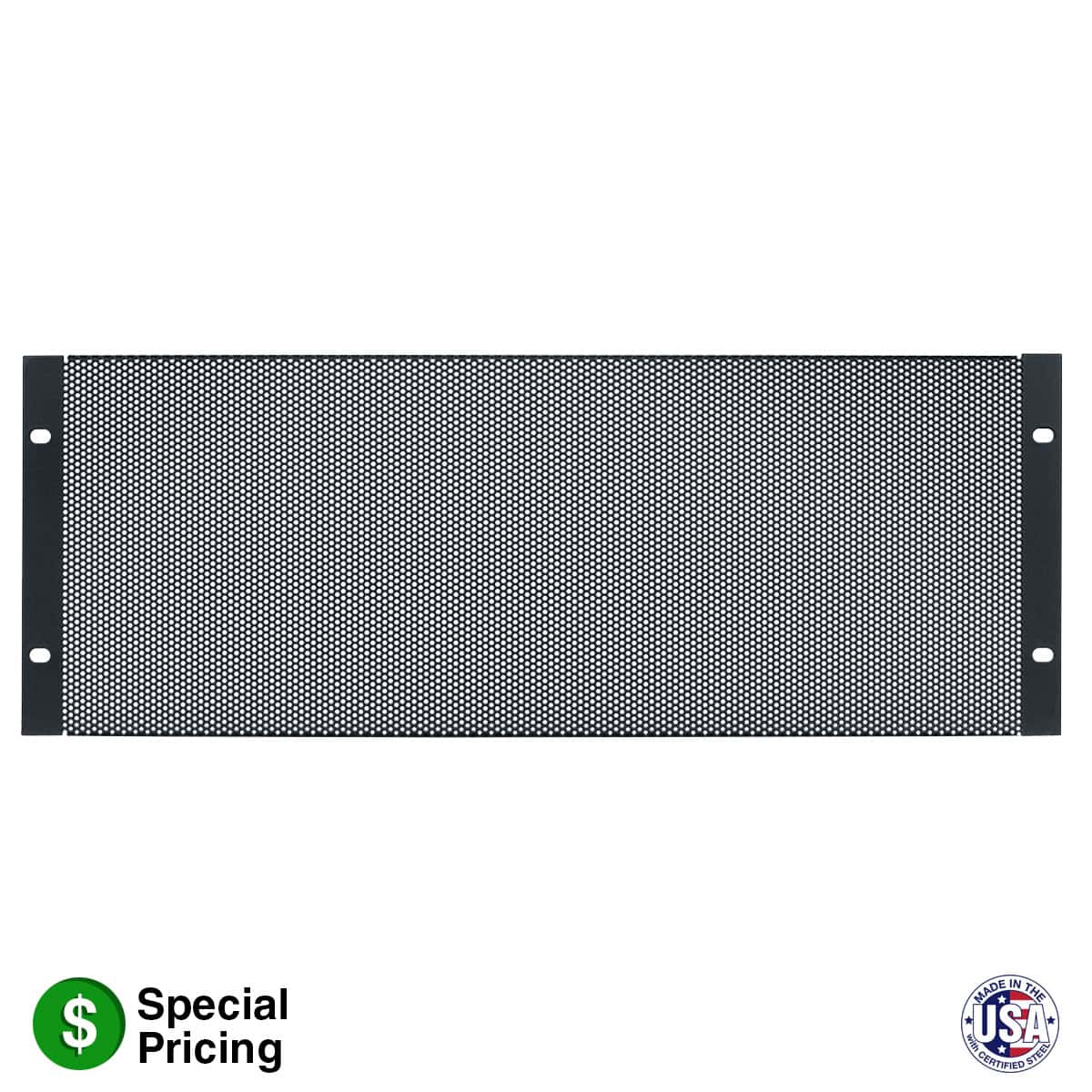

Rack vent panel is steel with a black powder epoxy finish. The panel features small staggered holes for passive ventilation (35 percent open area). Available in single or multi-pack cartons.

Add to Favorites

Compare

Material: 18-gauge steel
Finish: Smooth black semi-gloss
Flange: 0.625 in.

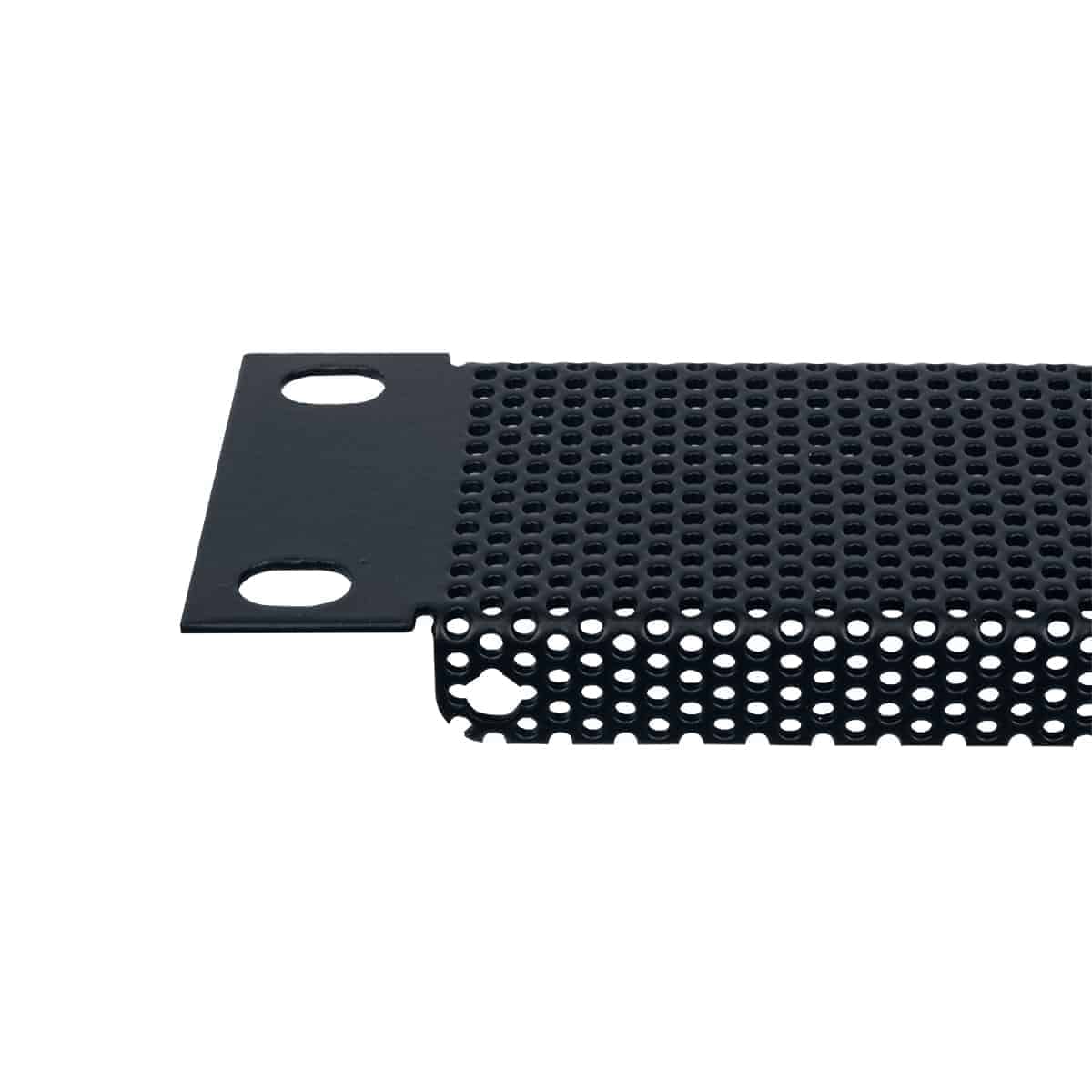

Small Holes: 0.0781 in. diameter on 0.125 in. staggered centers
Open Area: 35 percent
Width: 19 in.
Height: 4U

Spec Sheet: 1061-SVP
CAD drawing: SVP-1

TAA Compliant
EIA/TIA Compliant
Certified U.S. Steel
Made in U.S.A. (BAA)

The rackmount vent panel shall be Lowell Model SVP-4, which shall be 18-gauge certified U.S. steel perforated with 0.0781 in. diameter holes on 0.125 in. staggered centers creating 35 percent open area. The panel shall feature a 0.625 inch flange and smooth black semigloss powder epoxy finish. The panel shall measure 19 in. wide x 4U.
