CB84-SGVPA (4"D) - DISCONTINUED

Name: CB84-SGVPA (4"D) - DISCONTINUED
SKU: CB84-SGVPA
Availability: InStock

SEE ALTERNATIVE: CB84-SGVPO

$96.80 MSRP

DISCONTINUED | Out of Stock
Recommended Alternative: CB84-SGVPO

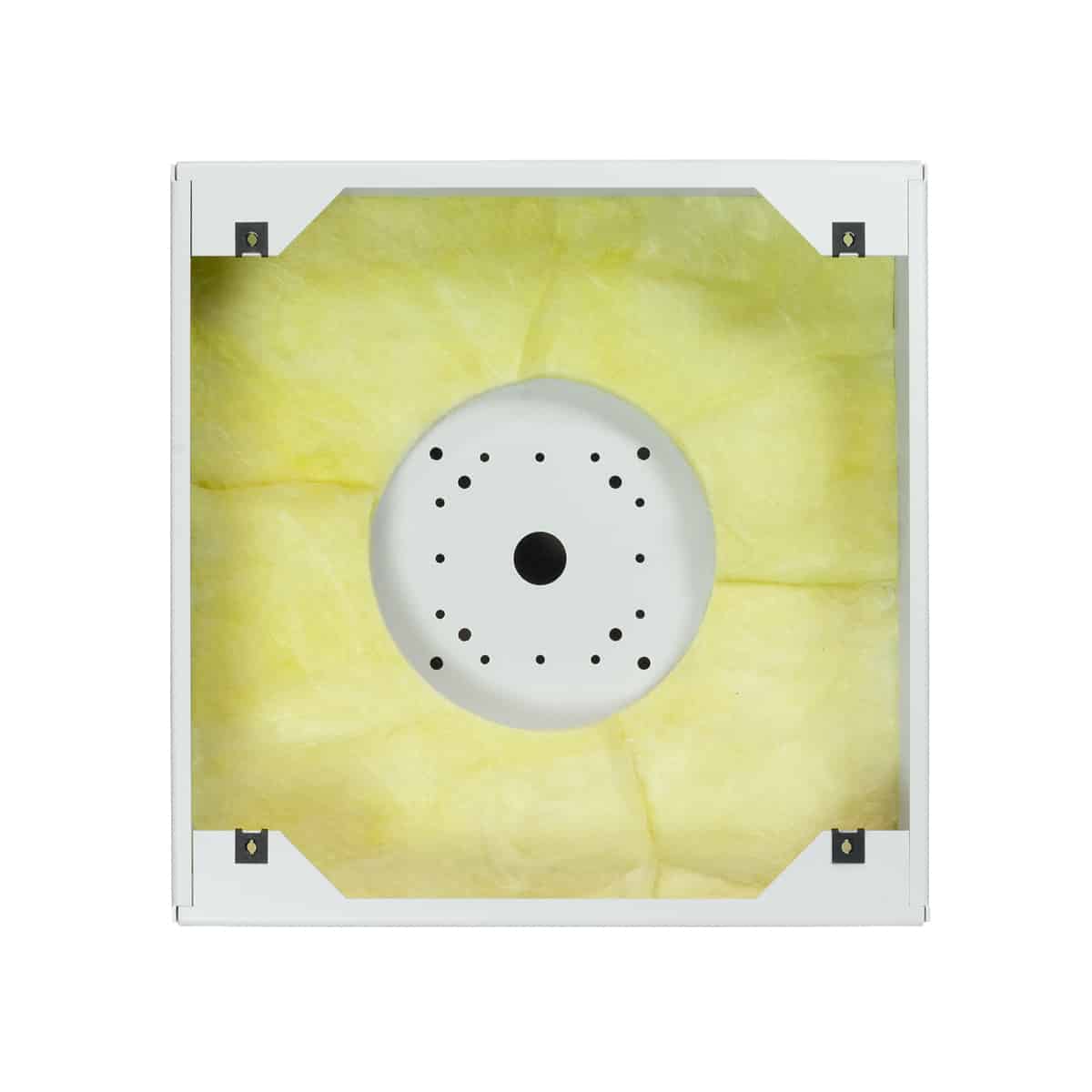

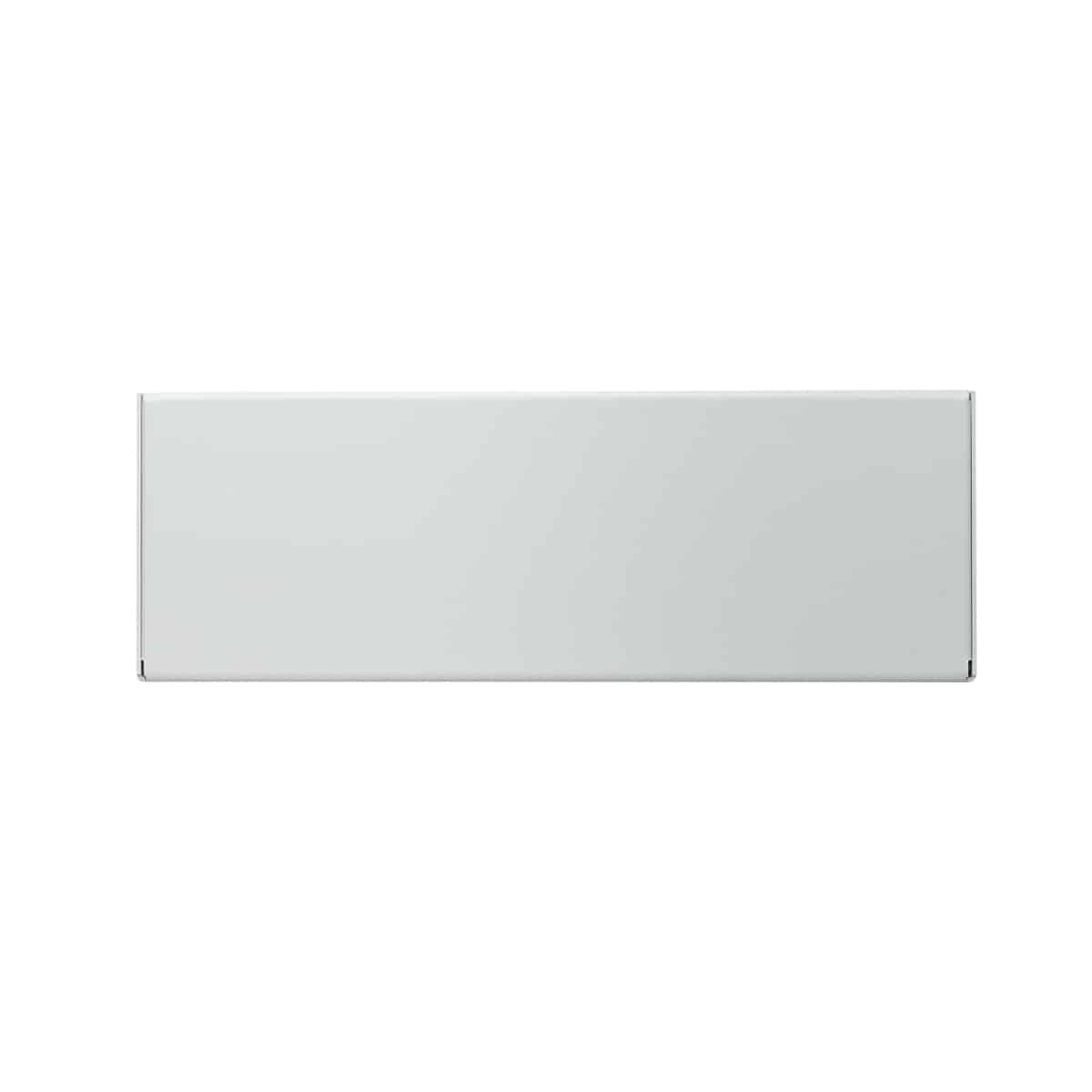

Model CB84-SGVPA is a surface-mount enclosure made to hold an 8-inch speaker and vandal-resistant grille model SG-8VP (order separately). The steel enclosure has a white powder epoxy finish. It includes one-inch thick batting. For indoor applications only. Measures 11.5 in. square x 4 in. deep.

Add to Favorites

Compare

Material: 16-gauge one-piece steel, welded seams, white finish
Length: 11.50 in.
Width: 11.50 in.
Depth: 4.00 in.
Volume: 0.306 cu.ft.
Acoustical Treatment: 1 in. thick batting
For Grille Type: Screw-mount, tamper-resistant

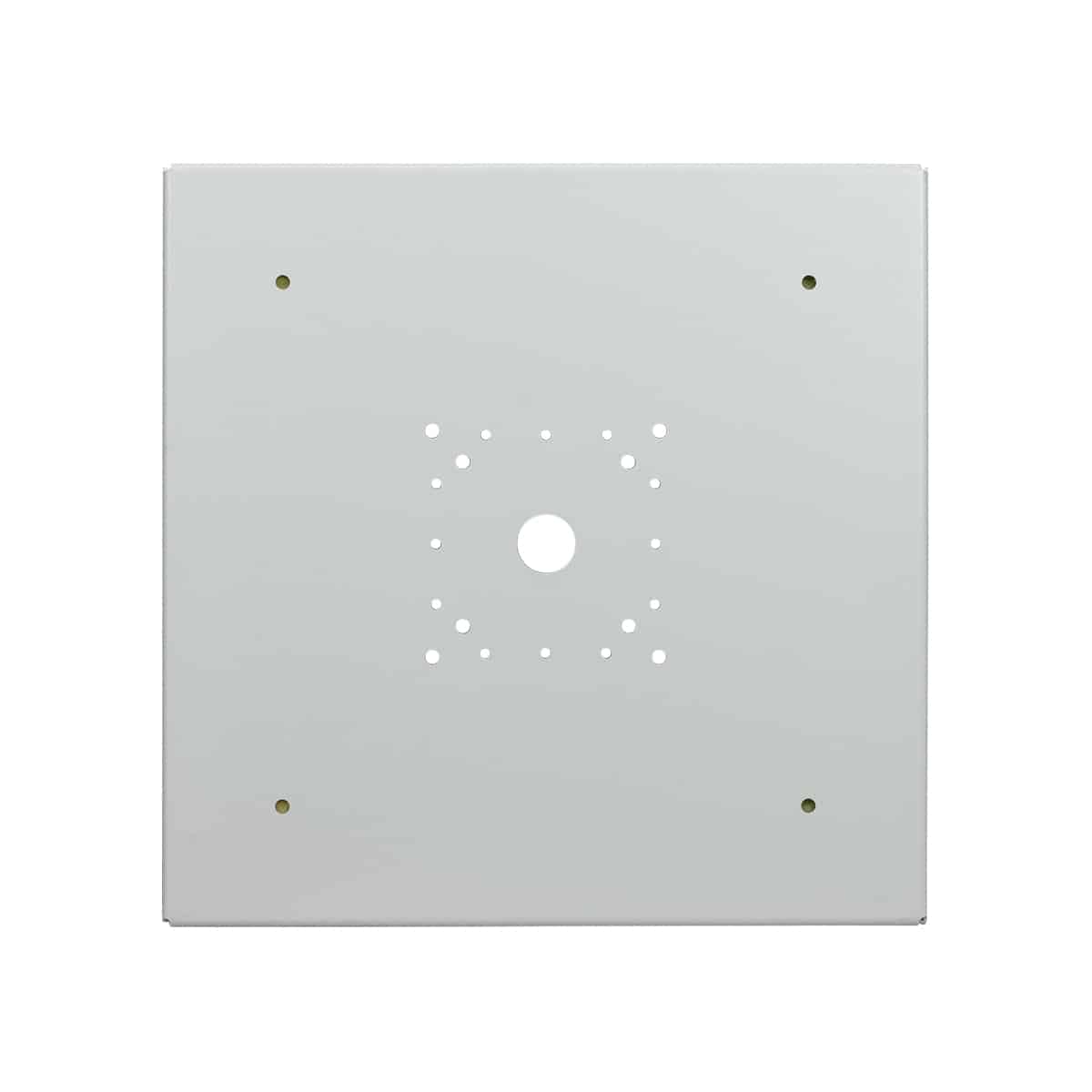

Mounting Aids: U-clips, holes for a tamper-resistant grille, universal mounting pattern for E.O. box, 0.875 in. hole for conduit

Spec Sheet: 2290-CB84SGVPA

Made in U.S.A.
Certified U.S. steel

The vandal-resistant surface-mount enclosure for indoor installation of an 8″ speaker shall be Lowell model CB84-SGVPA, which shall be fabricated U.S. steel with white powder epoxy finish measuring 11.5″ square x 4″D. It shall feature a rear hole (.875 dia.) for 1/2″ conduit or wire access and provisions to mount to an electrical box (4″ square, 4″ octagon, 1-gang or 2-gang – not included). It shall also feature four mounting holes and 8-32 U-clips at flanged corners to accept the specified screw-mount grille. The enclosure shall include 1″ thick acoustic batting.

Grille: SG-8VP
