SVPL-4CC - DISCONTINUED

Name: SVPL-4CC - DISCONTINUED
SKU: SVPL4CC
Availability: InStock

SEE ALTERNATIVE: SVPL-2CC

$209.28 MSRP

DISCONTINUED | Out of Stock
Recommended Alternative: SVPL-2CC

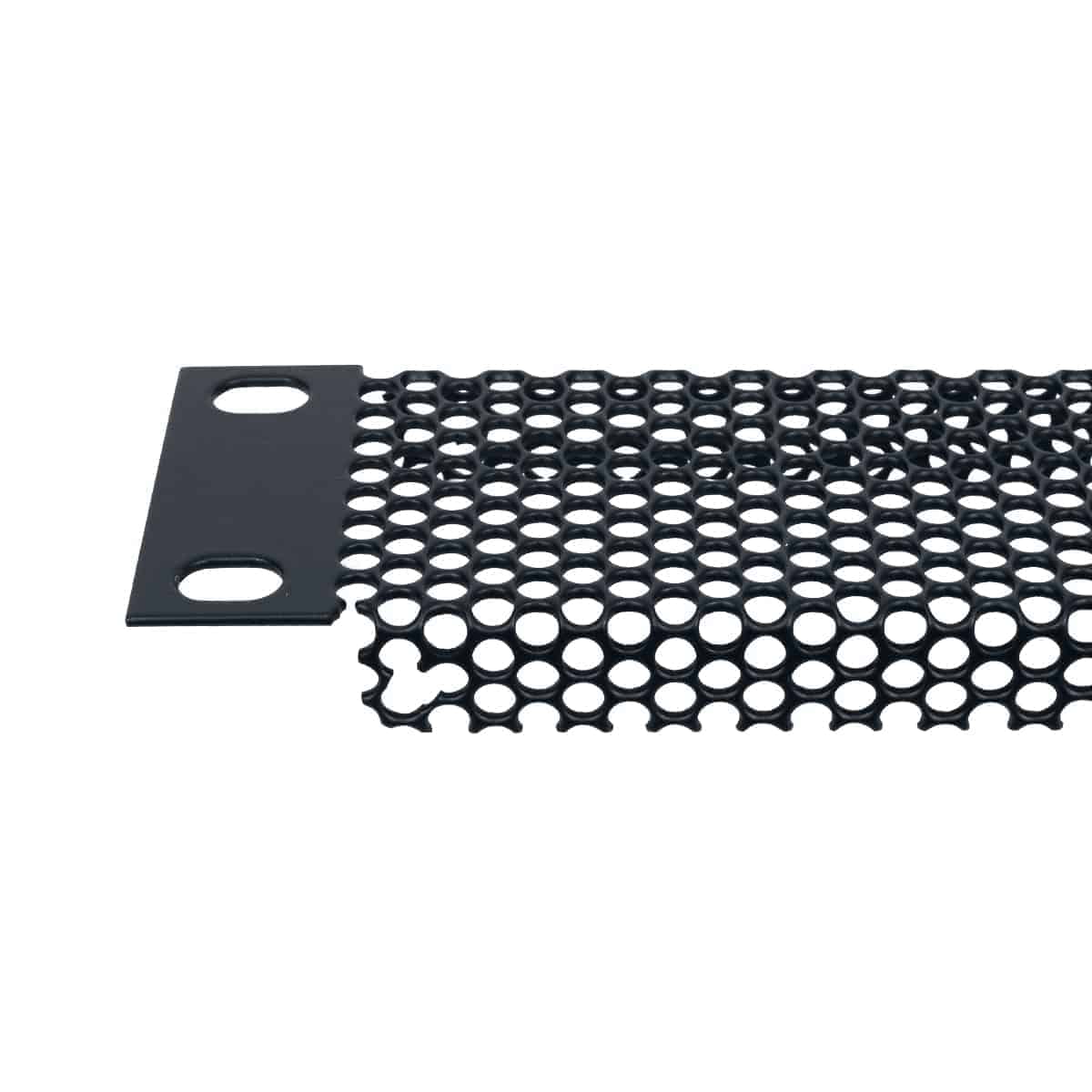

The steel vent panel with black powder epoxy finish mounts in 19-inch equipment racks. Panel features large staggered holes for passive ventilation (63 percent open area). Multi-pack cartons.

Add to Favorites

Compare

Material: 18-gauge steel
Finish: Smooth black semi-gloss
Flange: 0.5 in.
Staggered Holes: 0.156 in. diameter, staggered pattern
Open Area: 63 percent
Width: 19 in.
Height: 4U
Multi-pack carton

Spec Sheet: 1198-SVPL

TAA Compliant
EIA/TIA Compliant
Certified U.S. Steel
Made in U.S.A. (BAA)

The rackmount vent panel shall be Lowell Model SVLP-4CC, which shall be 18-gauge certified U.S. steel perforated with 0.156 in. diameter holes on 0.187 in. staggered centers creating 63% open area. The panel shall feature 0.5 in. flange and smooth black semi-gloss powder epoxy finish. The panel shall measure 19 in. wide x 4U.
