SR SERIES | SR-2012 | 20U x 12"D Swing Gate Wall Rack

Name: SR SERIES | SR-2012 | 20U x 12"D Swing Gate Wall Rack
SKU: SR-2012
Availability: InStock

Special Pricing - While Supplies Last

$272.20 MSRP

Call 800-325-9660 for Availability
Recommended Alternative: SR-2018

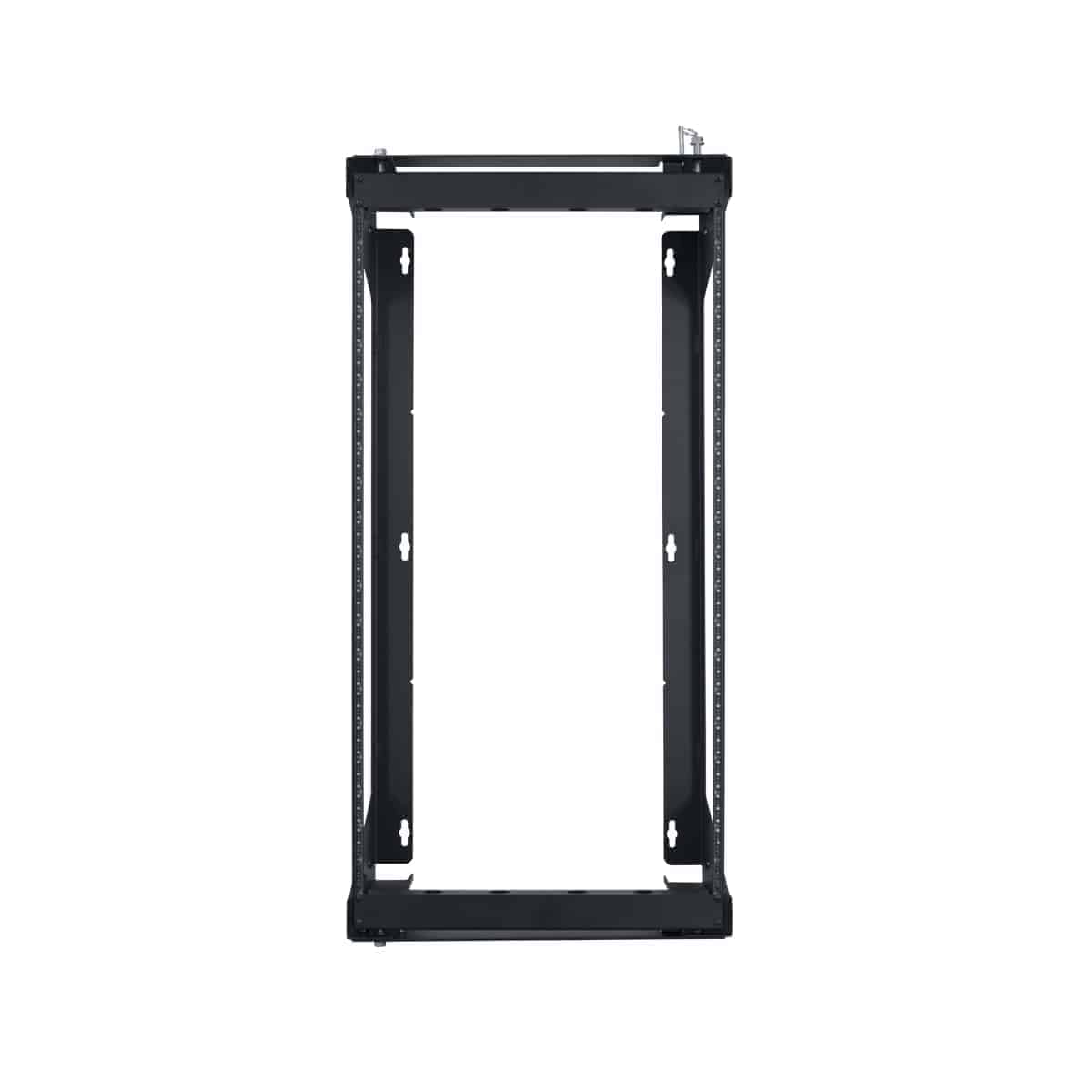

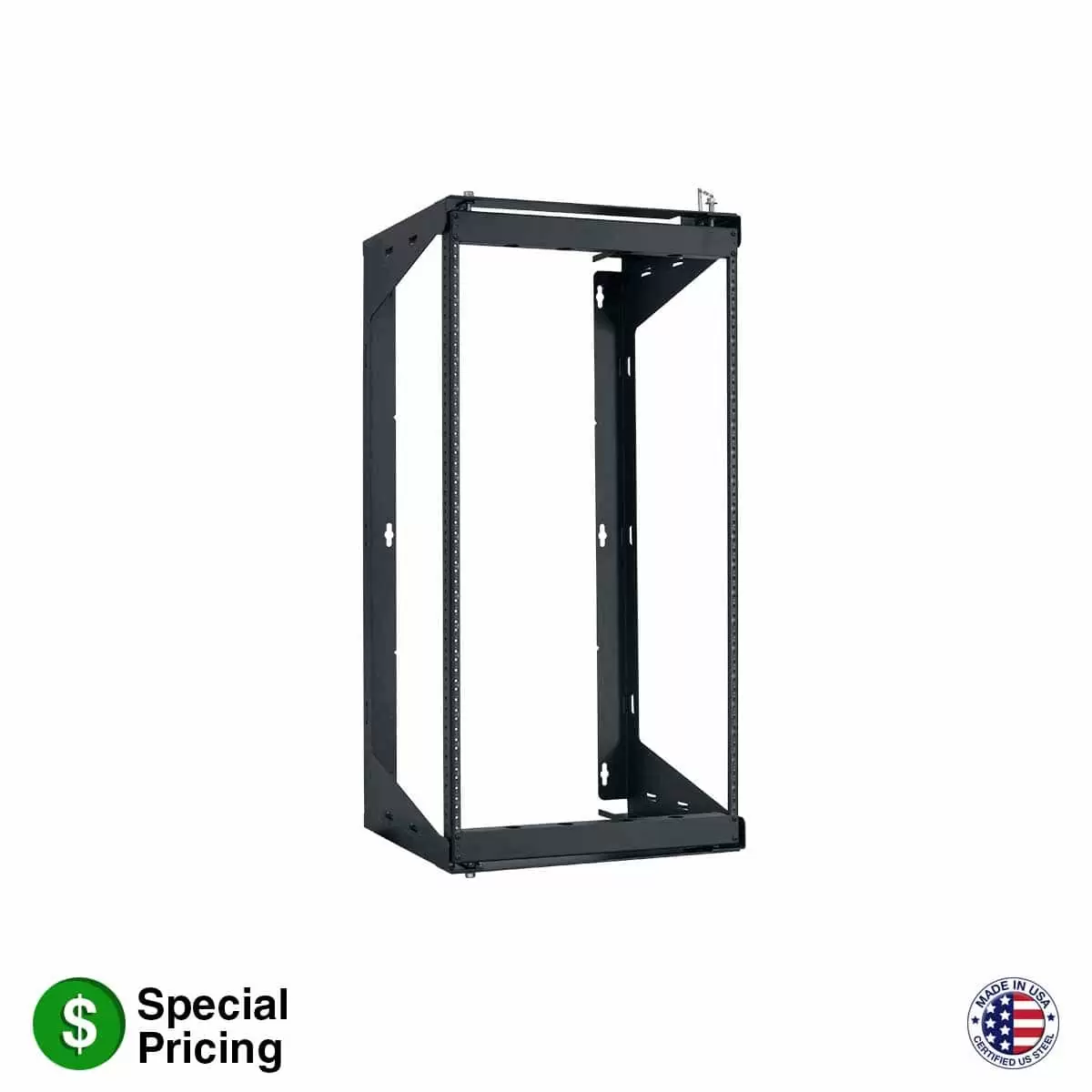

Open frame swing gate wall rack is a cost-effective solution for 19-inch network and security equipment kept in telecommunications rooms and similar secure areas. The versatile, swing-open frame allows easy access to equipment and cables. Steel with black powder epoxy finish. Ships unassembled.

Product Video

Add to Favorites

Compare

Heavy gauge steel construction
Front gate swings open 90 degrees (left or right)
Quick release detent pins secure frame closed
Mounting holes on 16 in. centers
Open sides and multiple tie loop points for cable routing
One pair fixed position rails tapped 10-32
Smooth black powder epoxy finish
Ships unassembled

Rack Space: 20U
Height: 40.24 in.
Width: 19.75 in.
Depth: 12.00 in. (11.88 usable)
Load Capacity: 100 lbs.

Spec Sheet: 1763-SR2012
Install: 21676-SR
CAD drawings: SR-2012

The swing gate wall rack shall be Lowell Model SR-2012, which shall measure 40.24″H x 19.75″W x 12.00″D. It shall be constructed of heavy gauge certified U.S. steel with smooth black powder epoxy finish. The front frame shall swing open 90 degrees (left or right orientation) to allow access to the rear of mounted equipment. The rack shall feature 20 rack units of panel space, quick release detent pins to secure the frame closed, tie loop points, and one pair of fixed-position mounting rails tapped 10-32 on E.I.A. spacing. Load capacity shall be 100 lbs.

Cable management
