- Heavy-gauge steel construction

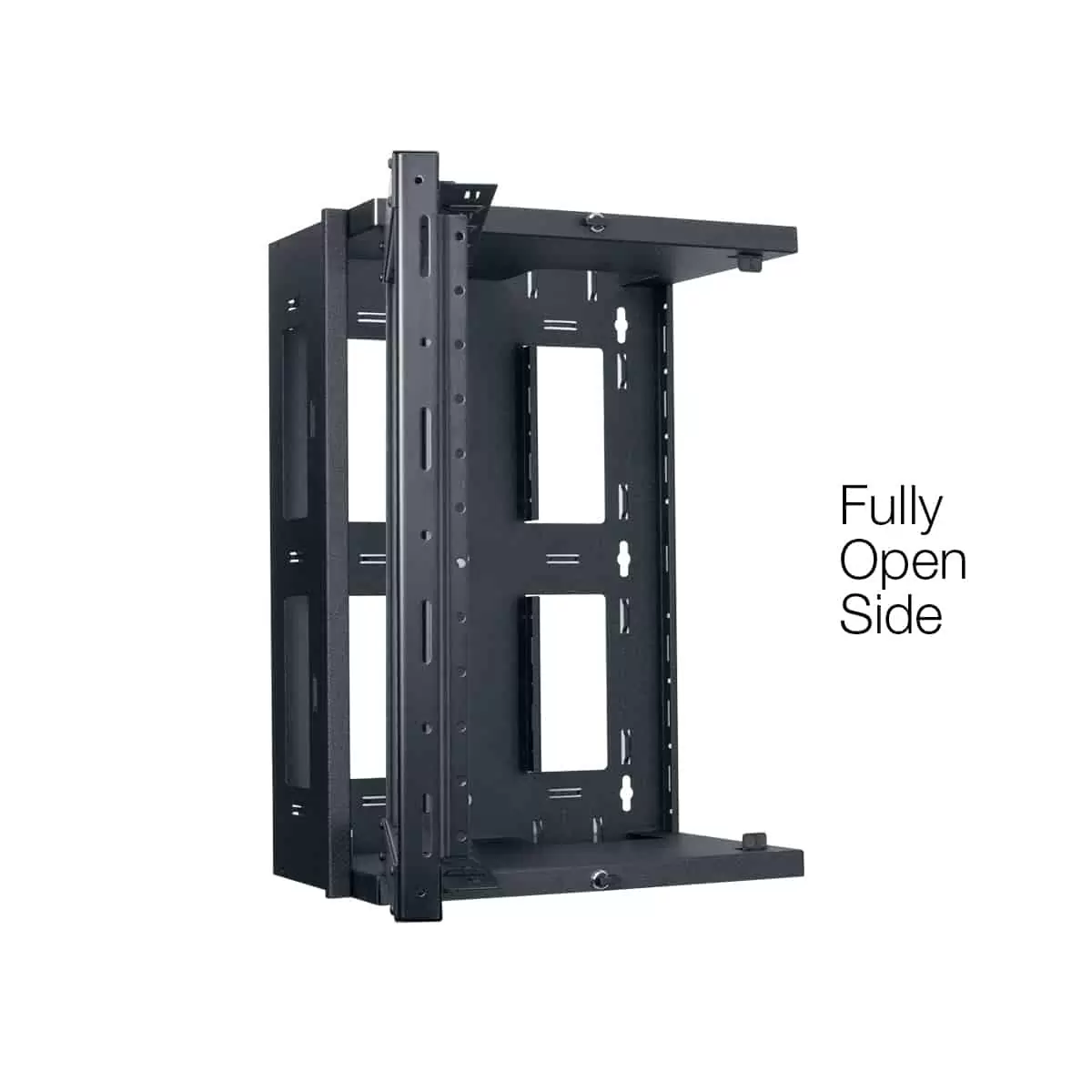

- Front gate swings open 90 degrees (left or right orientation)
- Thumb latch secures frame
- Mounting holes on 16 in. centers
- Abundant cable paths and tie points
- One-pair fixed position rails tapped 10-32
- Smooth-black powder-coat finish
- Two-piece field assembly
- Rack Space: 12U
- Height: 27.48 in.
- Width: 20.03 in.
- Depth: 13.21 in. (11.6 usable)
- Load Capacity: 150 lbs.
- TAA compliant
- BAA compliant
- EIA/TIA compliant
- USA-certified steel
- Made in USA

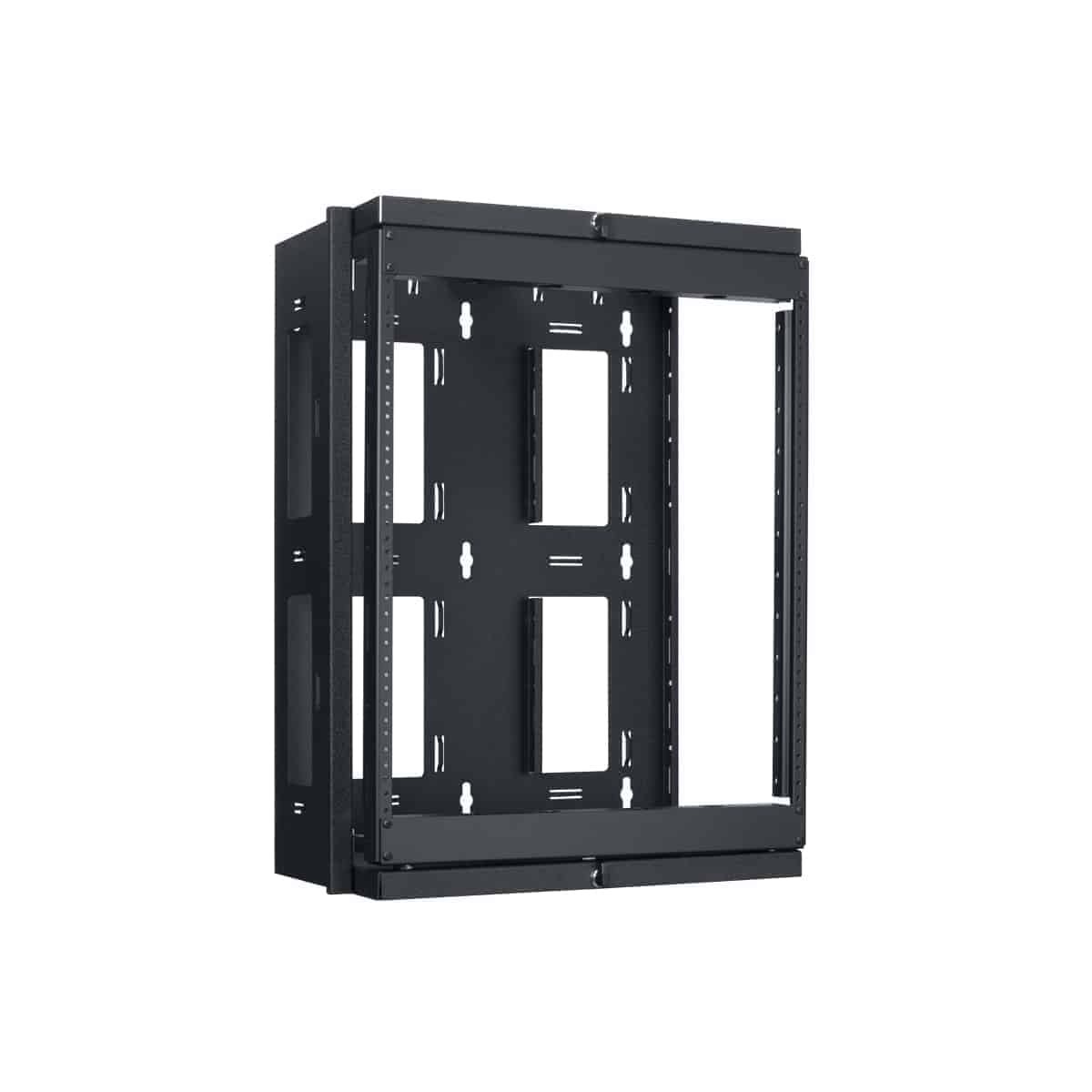

The swing gate wall rack shall be Lowell Model SGR–1212 which shall measure 27.48″H x 20.03″W x 13.21″D, which shall be constructed of heavy-gauge steel with combination textured- and smooth-black powder-coat finish. It shall feature one fully-open side and a swing gate that shall open 90 degrees to access mounted equipment. A thumb latch shall secure the frame closed. The rack shall provide 12 rack units of panel space and include cable paths, tie points, and one-pair of fixed position mounting rails tapped 10-32. Load capacity shall be 150 lbs. The rack shall be manufactured in the USA using USA-certified steel. It shall be Trade Agreement Act (TAA) compliant and Buy American Act (BAA) compliant.
