- Chassis: Steel rackmount chassis with black finish, 19.00 in. x 9.00 in. x 1.75 in. (1U)
- Activation: Rocker switch
- LED status indicators
- Adjustable delay allows 0.5 to 10 seconds between steps.

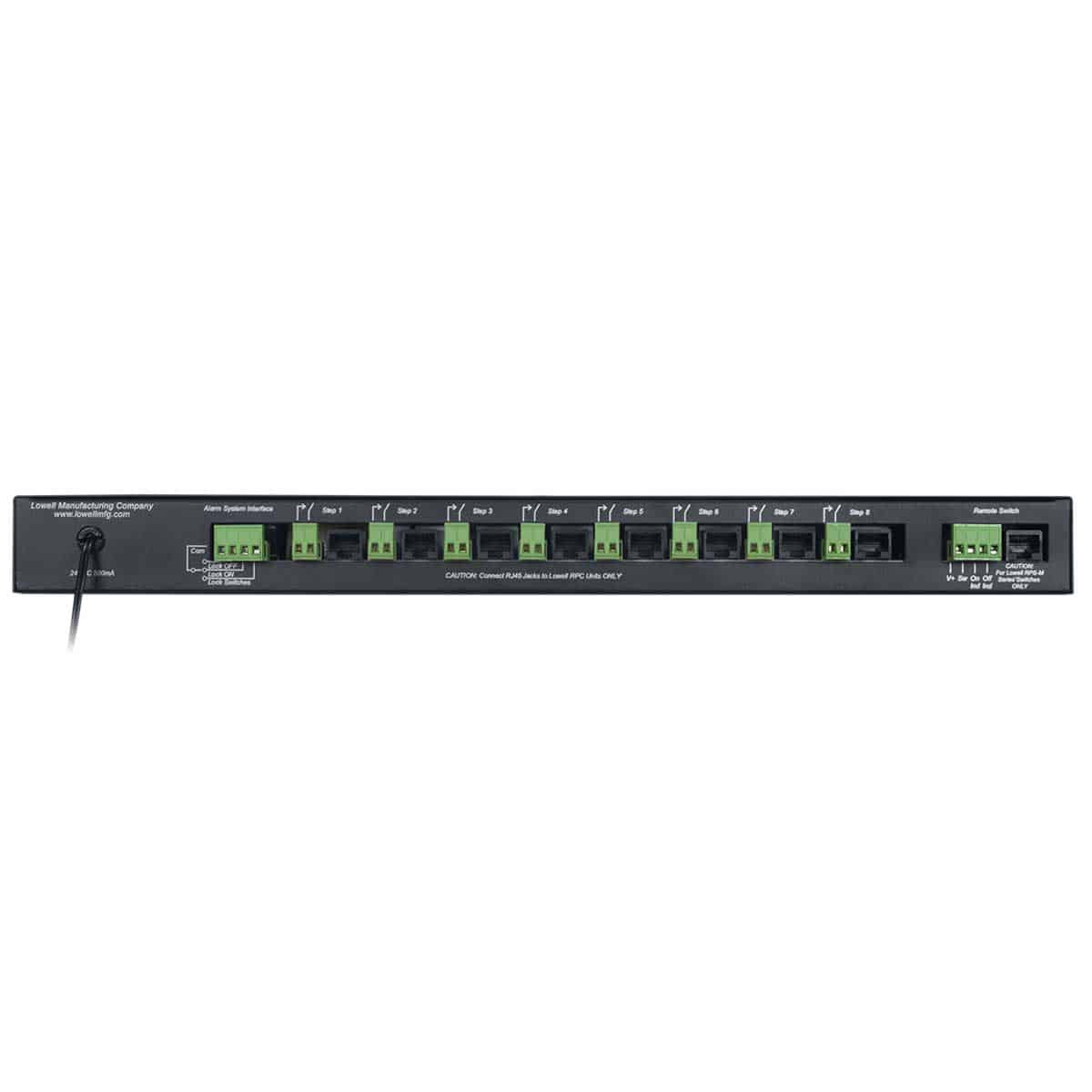

- Eight rear panel barrier strip control outputs

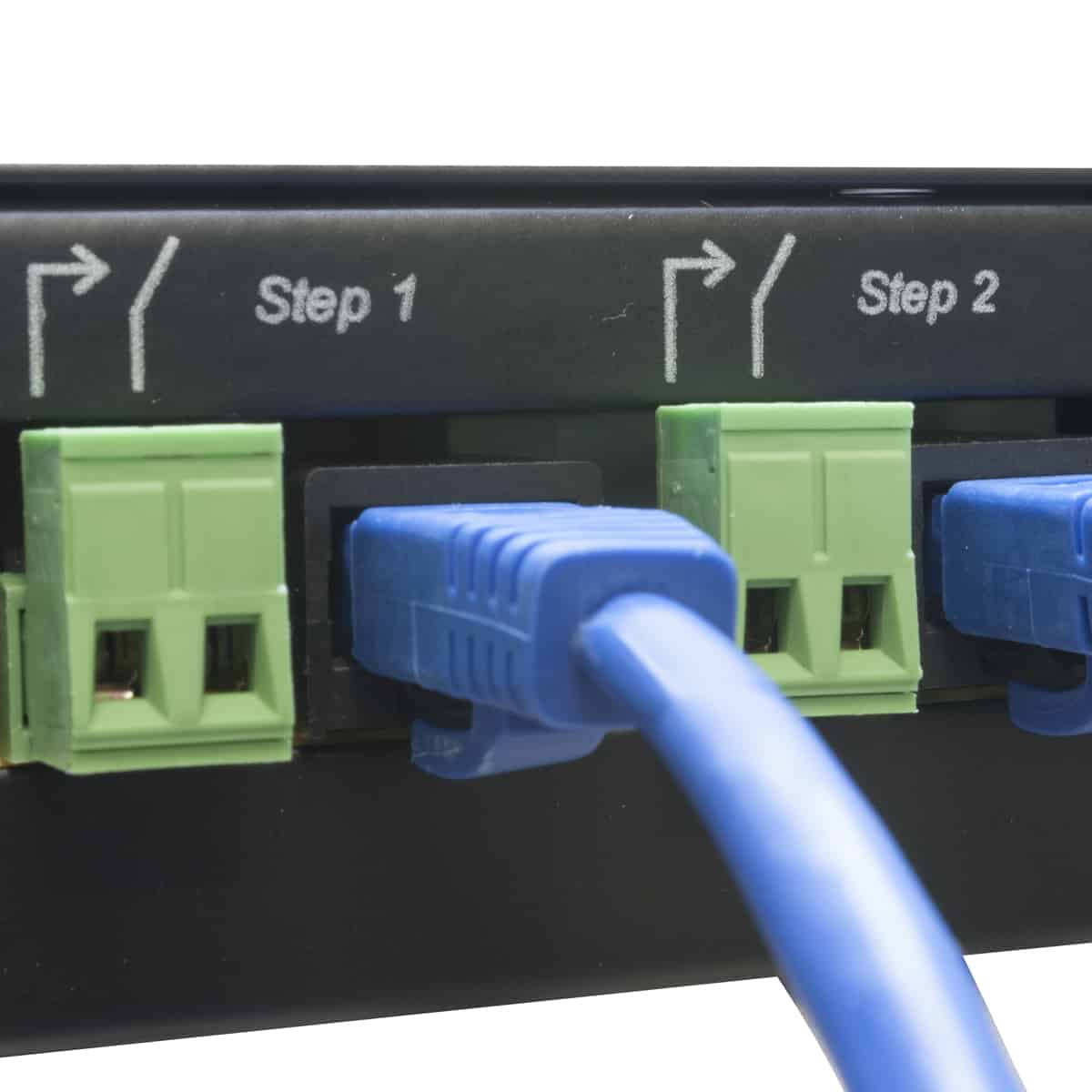

- Eight rear panel RJ45 connectors
- Alarm Interface: Integral override facilitates use in life safety applications where fire code mandates an alarm interface.
- EIA/TIA Compliant
- Certified U.S. Steel
- Assembled in U.S.A. with global components
- UL Listed power supply with input 100-240VAC, output 24VDC, 500mA, 6 ft. cord and four plug adaptors (NEMA 1-15, Schuko CEE 7/16, BS1362, AS3112)
The device for sequentially activating equipment shall be Lowell rackmount Model No. SEQR-8RJ which shall feature a rocker activation switch, LEDs and front accessible trim pot for delay adjustment of sequence operation. Rear panel shall include Phoenix-style removable terminals and parallel RJ45 jacks for each SPST relay contact closure output. It shall have a separate alarm interface connection. Equipment to be controlled shall be connected to the sequencer using 2-conductor wire and Lowell’s Remote Power Control __________ (RPC Series required, order separately). Rear panel shall include Phoenix-style removable terminal with parallel RJ45 jack to connect momentary switch ________ (RPSW-M, RPSB-M Series optional, order separately) for remote operation of sequencer.
