RY-P2 DPDT relays with pass-through jacks

RY-P2 - DISCONTINUED

Name: RY-P2 - DISCONTINUED
SKU: RY-P2
Availability: InStock

SEE ALTERNATIVE: RY-P1

$353.80 MSRP

DISCONTINUED | Out of Stock
Recommended Alternative: RY-P1

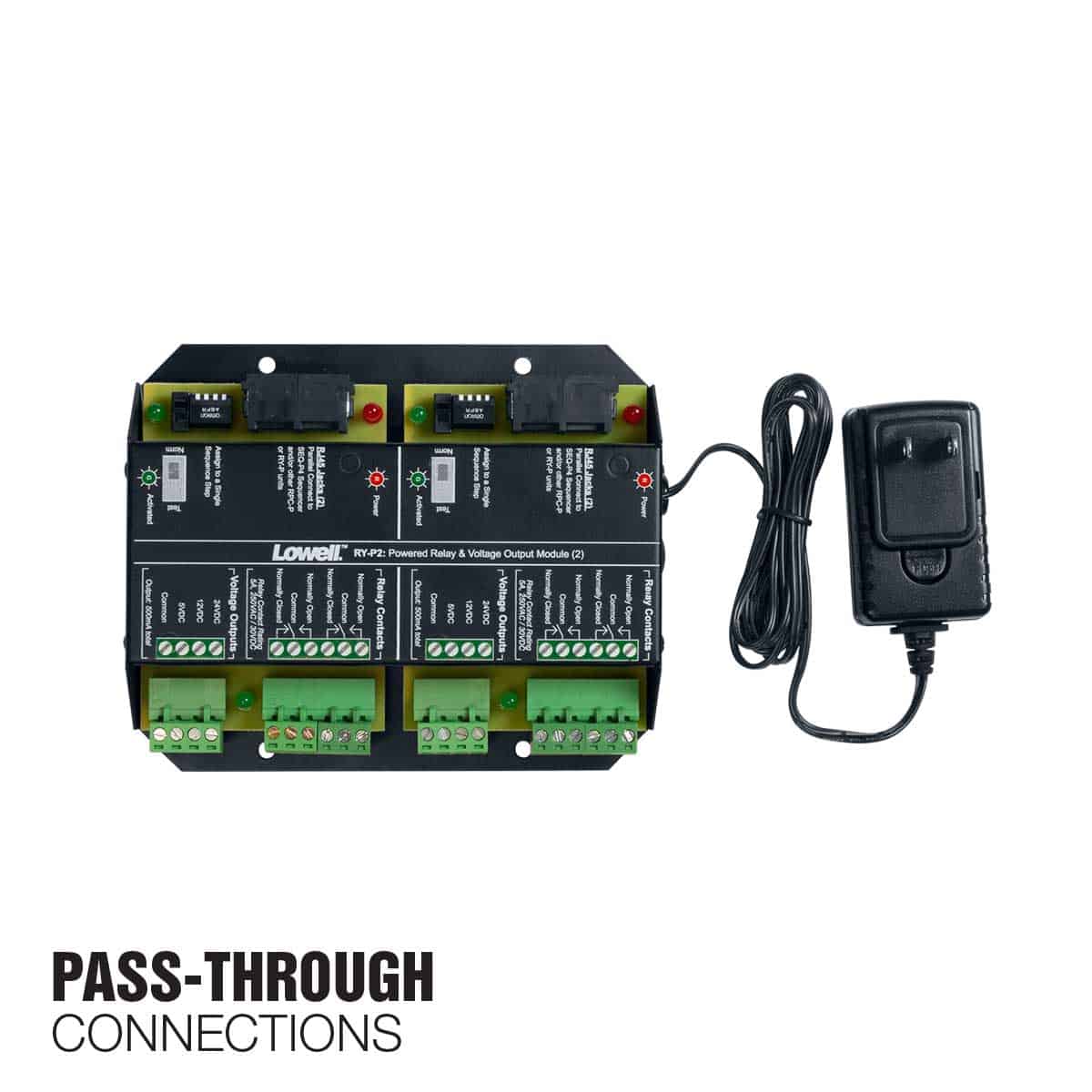

The RY-P2 relay module features two "pass-thru" RJ45 jacks for quick connections to a compatible sequencer (SEQ-P4 or SEQR-P4). It features 5VDC, 12VDC, and 24VDC independent outputs (500mA total), which can be used to control any device requiring a DC voltage trigger. Learn about products with pass-thru connections by watching the video.

Product Video

Add to Favorites

Compare

Relay is activated by sequencer SEQ-P4 or SEQR-P4 (order separately)
Switch any load, AC or DC, up to 5A’
Relay contact rating: 5A, 250VAC/30VDC
Includes (2) DPDT relays
Steel Chassis: 5.00 in. x 1.69 in. x 6.25 in.
Voltage outputs: 5VDC, 12VDC, 24VDC. Outputs can be used to control any device requiring a DC voltage trigger.
Quick connections with RJ45 jacks using Cat5 or Cat6 cable.
Power supply (100-240VAC input, 24VDC 500mA output, 6 ft. cable with NEMA 1-15 plug and adaptors)

Spec Sheet: 2310-RYP2

Certified U.S. Steel
Assembled in U.S.A. with global components

The system shall include Lowell relay module RY-P2, which shall have a contact rating of 5A, 250VAC/30VDC with two DPDT relays activated by an external sequencer (SEQ-P4j or SEQR-P4, ordered separately). Independent voltage outputs shall be 5VDC, 12VDC and 24VDC, which can be used to trigger any device requiring a DC voltage trigger. The relay module shall have RJ45 jacks to connect to remote power control (RPC-P Series), sequencer (SEQ-P4 or SEQR-P4), or another relay #RY-P1 or #RY-P2). The unit shall have a steel chassis (5″L x 1.69″H x 6.25”W) with black finish and mounting holes. It shall include a power supply (100-240VAC input, 24VDC 500mA output) with 6 ft. cable and NEMA 1-15 plug (with several adaptors).
