RCC SERIES | RCC-3436 | 36"H Remote Consolidation Cabinet, Dual Bay

Name: RCC SERIES | RCC-3436 | 36"H Remote Consolidation Cabinet, Dual Bay
SKU: RCC-3436
Availability: InStock

Special Pricing - While Supplies Last

$392.40 MSRP

Call 800-325-9660 for Availability
Recommended Alternative: RCC-2228

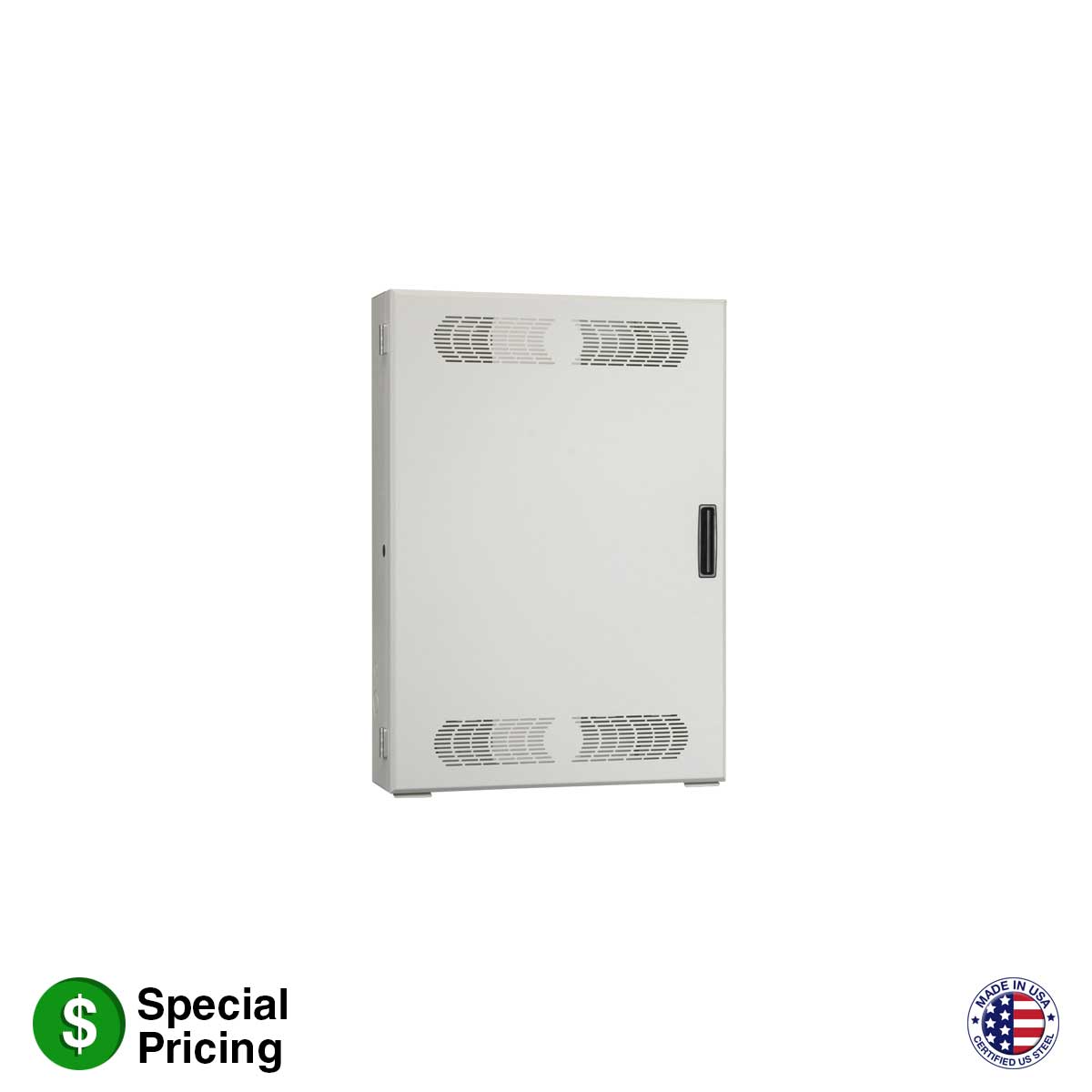

Low profile wall-mount cabinet secures network equipment with minimal intrusion into the room, maximizing internal space with two mounting bays and separate rail sets. The unit features a 3U upper bay to horizontal-mount a shallow panel (not included) and a 4U lower bay to vertical-mount 19-inch equipment (up to 30.2 inches deep). Includes reversible front door (left or right swing) and electrical box in base. Made in the USA with 16-gauge USA-certified steel. Network-Grey powder-coat finish.

Product Video

Add to Favorites

Compare

16-gauge steel construction with rear cutouts to fit over wall obstructions and aid cable management.
11-gauge rails in the 3U top section will accommodate a shallow patch panel. Rails pivot down for access.
11-gauge rails in the 4U bottom section will vertically-mount 19” equipment.
Dual-punch rails: All rails have holes tapped 10-32 (for use with included screws) plus square openings for alternate hardware (12-24 or 6mm screws, not included).
Vented front door with beveled edges and inset handle
Knockouts in top and base
Multiple bridge lances
Vents in base accommodate (optional) single fan kits
Includes EO box in base
Side key lock
Network-Grey powder-coat finish

Rack Space: 3U horizontal plus 4U vertical
Measurements: 25.5”W x 36”H (30.2”D usable) x 7.5”D
Load Capacity: 150 lbs.

Spec Sheet: 1897-RCC3436
CAD drawings: RCC-3436

TAA compliant
BAA compliant
EIA/TIA compliant
USA-certified steel
Made in USA

The wall cabinet shall be Lowell Model RCC-3436, which shall feature two mounting areas. Overall measurements shall be 25.5 x 36 x 7.5 inches. The 3U top section shall have 11-gauge rails that allow pivot-down access for a horizontally-mounted shallow panel (not included). The 4U bottom section shall have 11-gauge adjustable rails to vertically-mount 19” equipment up to 30.2 inches deep. The cabinet shall feature knockouts and bridge lances for cable management. The shallow front door shall have vents, beveled edges and an inset handle. The door shall be field-reversible for left or right-hand swing. The cabinet shall include an E.O. box in the base and a side lock. It shall be manufactured in the USA using USA-certified steel and have a Network-Grey powder-coat finish. It shall be Trade Agreement Act (TAA) compliant and Buy American Act (BAA) compliant.
