- 16-gauge steel construction with rear cutouts to fit over wall obstructions and aid cable management.
- 11-gauge rails in the 2U top section will accommodate a shallow patch panel. Rails pivot down for access.
- 11-gauge rails in the 2U bottom section will vertically-mount 19” equipment.
- Dual-punch rails: All rails have holes tapped 10-32 (for use with included screws) plus square openings for alternate hardware (12-24 or 6mm screws, not included).
- Vented front door with beveled edges and inset handle
- Knockouts in top and base
- Multiple bridge lances
- Vents in base accommodate (optional) single fan kits
- Includes EO box in base
- Side key lock
- Network-Grey powder-coat finish
- Rack Space: 2U horizontal plus 2U vertical
- Measurements: 25.5”W x 36”H (30.2”D usable) x 5”D
- Load Capacity: 150 lbs.
- TAA compliant
- BAA compliant
- EIA/TIA compliant
- USA-certified steel
- Made in USA

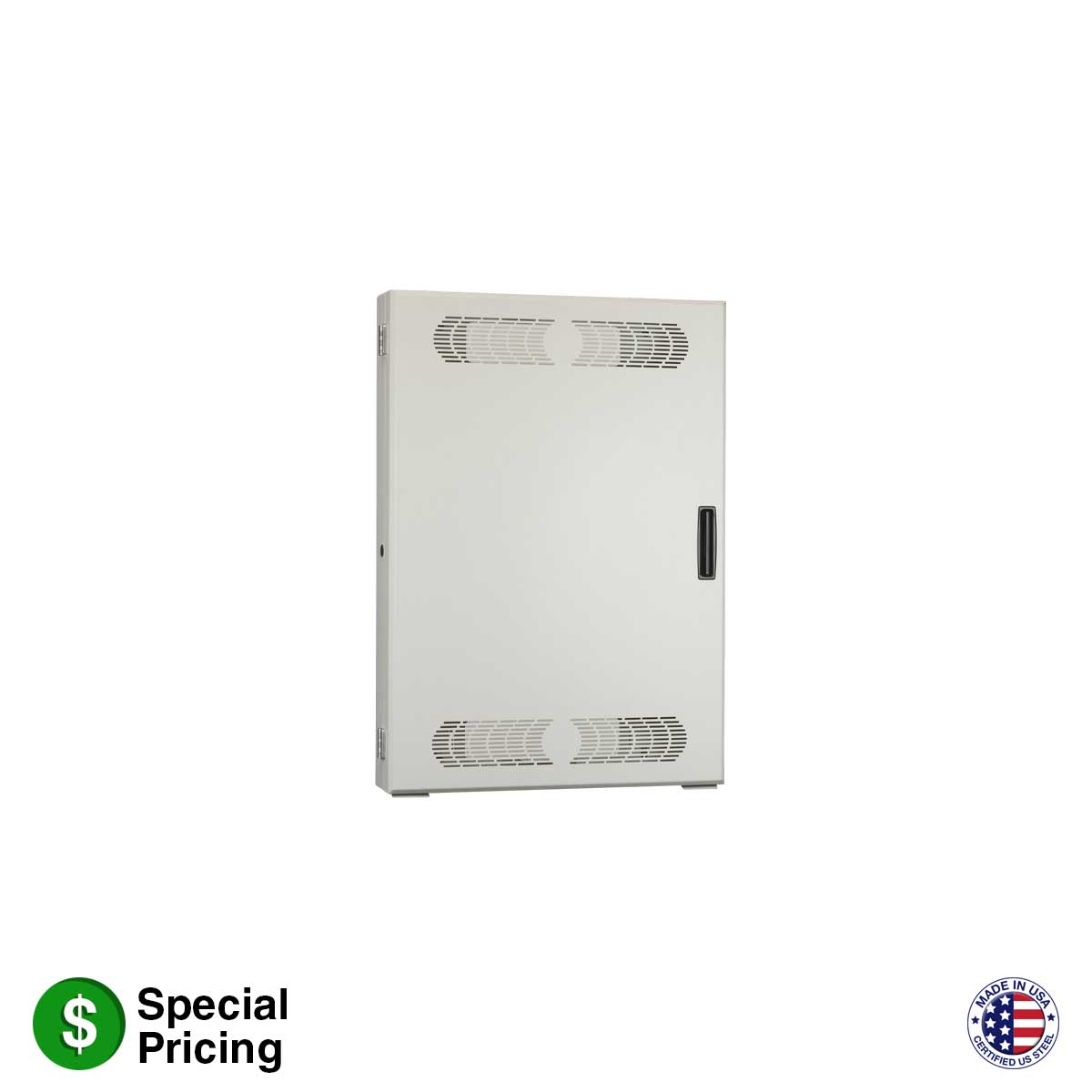

The wall cabinet shall be Lowell Model RCC-2236, which shall feature two mounting areas. Overall measurements shall be 25.5 x 36 x 5 inches. The 2U top section shall have 11-gauge rails that allow pivot-down access for a horizontally-mounted shallow panel (not included). The 2U bottom section shall have 11-gauge adjustable rails to vertically-mount 19” equipment up to 30.2 inches deep. The cabinet shall feature knockouts and bridge lances for cable management. The shallow front door shall have vents, beveled edges and an inset handle. The door shall be field-reversible for left or right-hand swing. The cabinet shall include an EO box in the base and a side lock. It shall be manufactured in the USA using USA-certified steel and have a Network-Grey powder-coat finish. It shall be Trade Agreement Act (TAA) compliant and Buy American Act (BAA) compliant.
