Rack Top w/3U Knockout Panel + 9U Four Fan Panel

Name: Rack Top w/3U Knockout Panel + 9U Four Fan Panel
SKU: RTK2
Availability: InStock

RTK-2

$732.40 MSRP

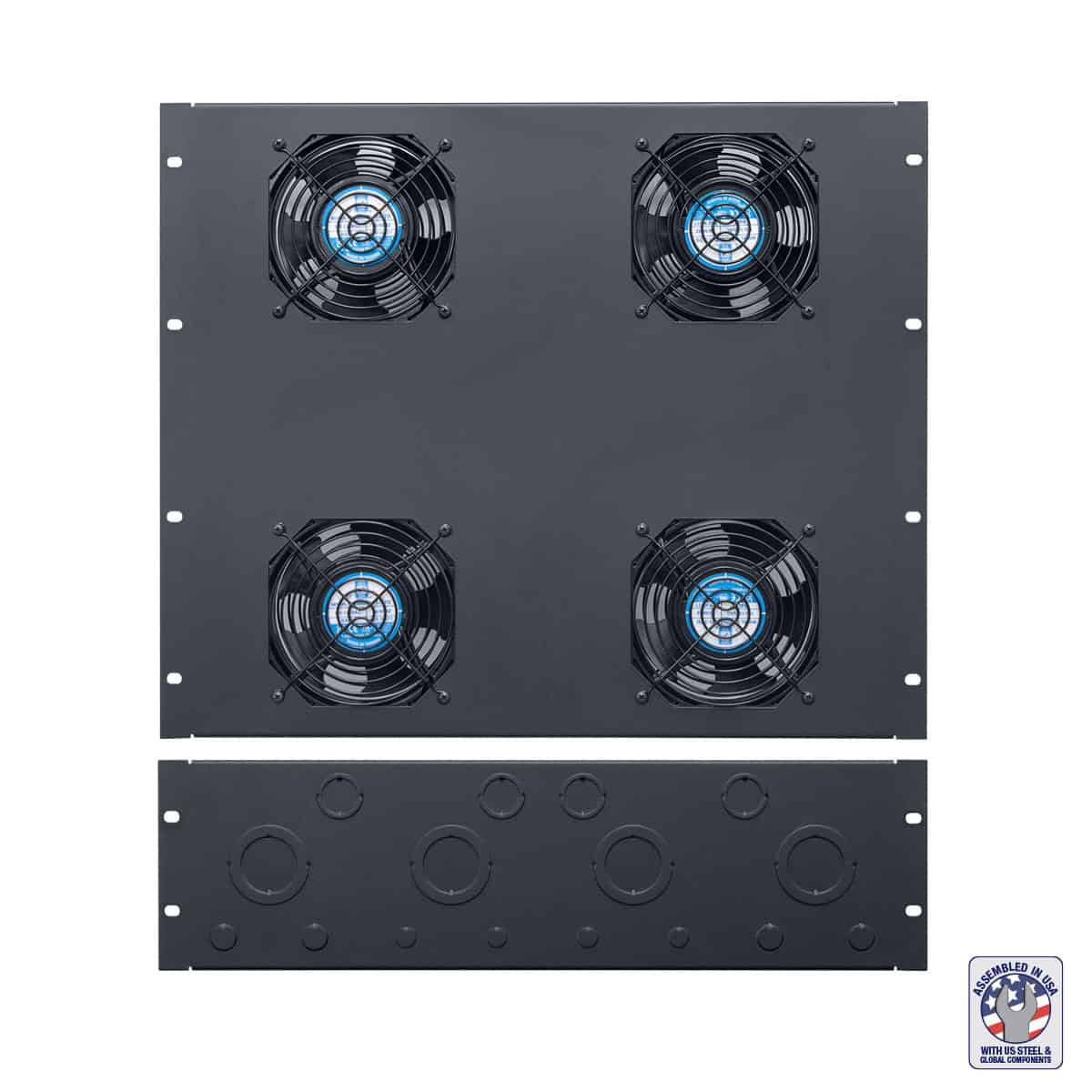

RTK-2 includes a 3U cable knockout panel and a 9U fan panel with four whisper fans. Both panels feature a black powder coat finish. RTK series rack tops are designed to fit Lowell LER and LGR racks with 12U configurable tops that feature 10-32 threaded rails on 19" EIA spacing.

Add to Favorites

Compare

3U Cable Knockout Panel:

18-gauge steel panel
Series of combination knockouts for cable management
Black powder coat finish
Mounting hardware

Whisper Fan Panel:

16-gauge steel panel
19″W x 2″D x 9U
Four mounted fans with guards
- 4.7″ fan diameter
- 50 cfm airflow rating (per fan)
- 28 dBA noise rating (per fan)
- 5.5 watts power required (per fan)
6-ft. green “thermo-cord” with integral thermostat probe to control fan operation – automatically turning on/off when ambient temperature hits pre-set points. Fan activates when temperature reaches 86˚F and deactivate when temperature reaches 72˚F
Fan Orientation: Exhaust* (pulls air out)

SPEC SHEET: RTK Series

EIA/TIA Compliant
Certified U.S. Steel
Assembled in U.S.A. with global components

The rack shall include Lowell rack top model RTK-2 which shall include a cable knockout panel and four fan panel. The cable knockout panel shall measure 3U x 19″W and feature combination knockouts for cable management. The fan panel shall be 16-gauge steel panel with black powder coat finish. It shall measure 9U x 19″W and include 4 whisper fans with fan guards. Each fan shall have a 4.7″ diameter with 50 cfm airflow and 28 dBA noise rating. The unit shall include a 6-ft. cord with plug. The cord shall be green and shall feature an integral thermostat probe to automatically control fan activation. The whisper fan panel shall be assembled in the U.S.A. with certified U.S. steel and global components.
