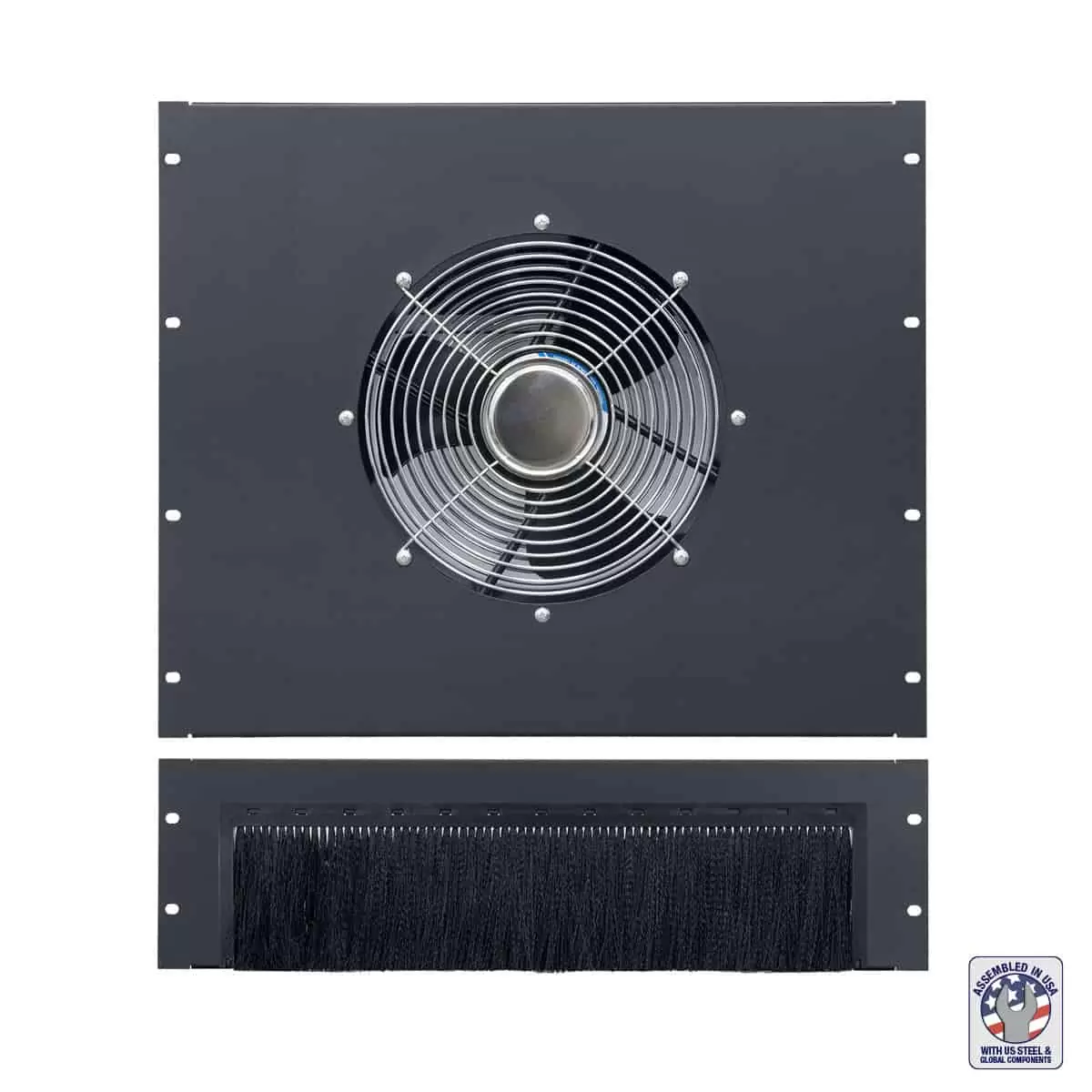

Rack panel with cable brush panel and turbo fan panel

Rack Top w/3U Brush Panel + 9U Turbo Fan Panel

Name: Rack Top w/3U Brush Panel + 9U Turbo Fan Panel
SKU: RTB3
Availability: InStock

RTB-3

$825.60 MSRP

RTB-2 includes a 3U brush panel (Lowell model CBP-3) and a 9U turbo panel. Both panels feature a black powder coat finish. RTB series rack tops are designed to fit Lowell LER and LGR racks with 12U configurable tops that feature 10-32 threaded rails on 19" EIA spacing.

Add to Favorites

Compare

3U Brush Panel (model CBP-3):

18-gauge steel frame
Snap-in brush strip w/three sided steel frame
Black powder coat finish
Mounting hardware

9U Turbo Fan Panel:

16-gauge steel panel
19″W x 4″D x 9U
Single mounted tubeaxial fan with guards

10″ fan diameter
550 cfm airflow rating
50.8 dBA noise rating
61 watts power required
Operates on 115 VAC 50/60 Hz

6-ft. green “thermo-cord” with integral thermostat probe to control fan operation – automatically turning on/off when ambient temperature hits pre-set points. Fan activates when temperature reaches 86˚F and deactivate when temperature reaches 72˚F
Fan Orientation: Exhaust* (pulls air out)

SPEC SHEET: RTB Series

EIA/TIA Compliant
Certified U.S. Steel
>Assembled in U.S.A. with global components

The rack shall include Lowell rack top model RTB-3 which shall include a cable brush panel and turbo fan panel. The cable brush panel shall measure 3U x 19″W and feature a snap-in brush strip and one open side. The fan panel shall be 6-gauge steel with black powder coat finish. It shall measure 9U x 19″W with a 10″ x 3.75″D tubeaxial fan, which shall include front and rear fan guards. The fan shall provide 550 cfm airflow and have a 50.8 dBA noise rating. The unit shall include a 6-ft. cord with plug. The cord shall be green and shall feature an integral thermostat probe to automatically control fan activation. The turbo fan panel shall be assembled in the U.S.A. with certified U.S. steel and global components.
