- 18-gauge steel
- Three (3) punches for 1-gang decorator style devices mounted horizontally
- Smooth black semi-gloss powder coat finish
- Kep nut hardware
- Rack Space: 1U
- Height: 1.75 in.
- Width: 19.00 in.
- Depth: 0.50 in. flange

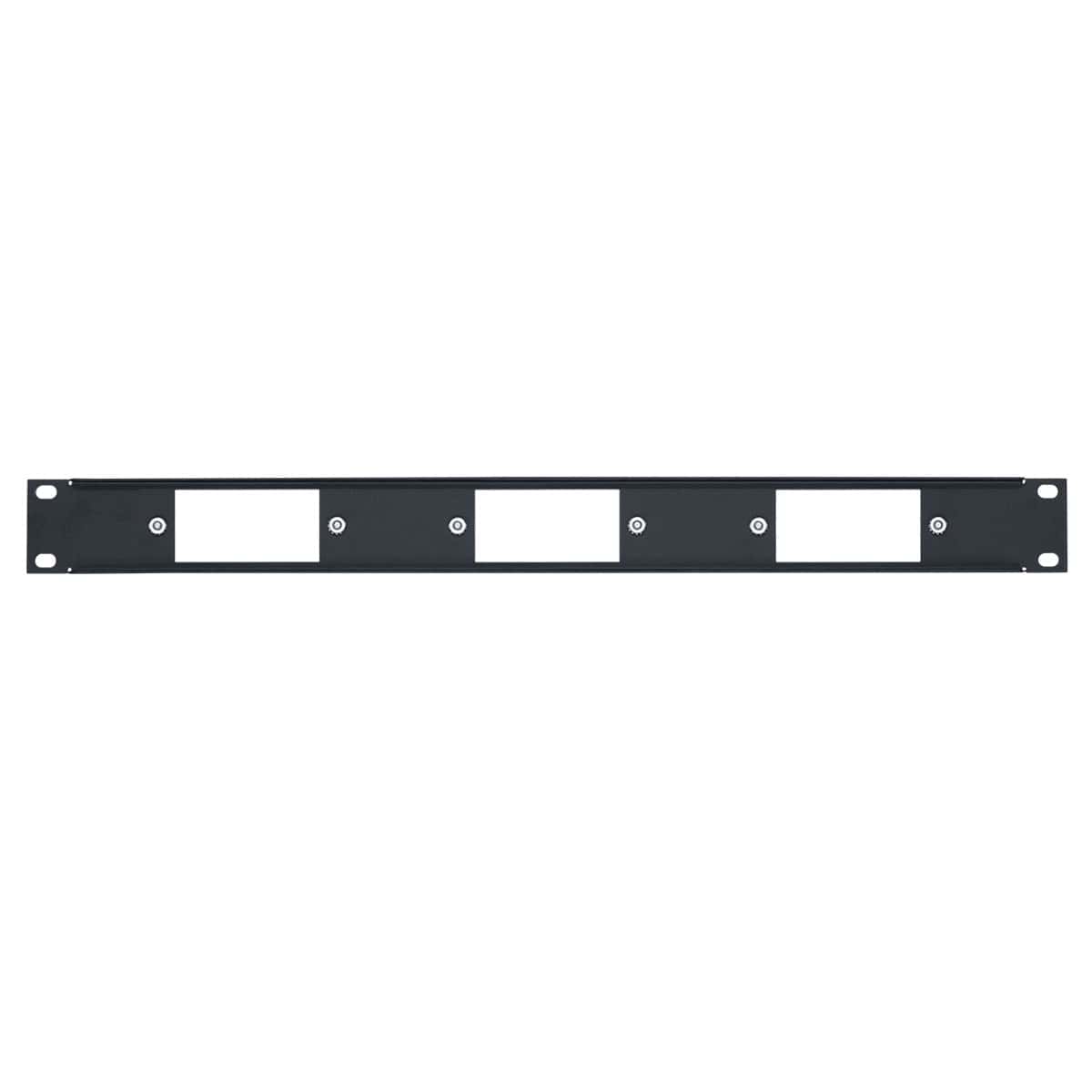

The rackmount panel for decorator style devices shall be Lowell Model No. D3P-1 and shall measure 19″W x 1.75″H (1U). It shall feature a black semi-gloss powder coat finish and be formed steel construction with punched openings to hold up to three (1-gang) decorator style devices, mounted horizontally. The panel shall include Kep nut hardware. Switches and blank filler plates shall be ordered separately.
- RPS Series: Low voltage switches (decorator style only, remove the wall plate before installing switch in panel)
- LVC Series: Volume control switches (decorator style only, remove the wall plate before installing switch in panel)
- Potentiometers (decorator style only, remove the wall plate before installing switch in panel)
- DBB-4: Blank filler plate for empty space
