Power Supply, 3 Output (5VDC/12VDC/24VDC)

Name: Power Supply, 3 Output (5VDC/12VDC/24VDC)
SKU: PS5124
Price: 436.00 USD
Availability: InStock

PS-5124

$436.00 MSRP

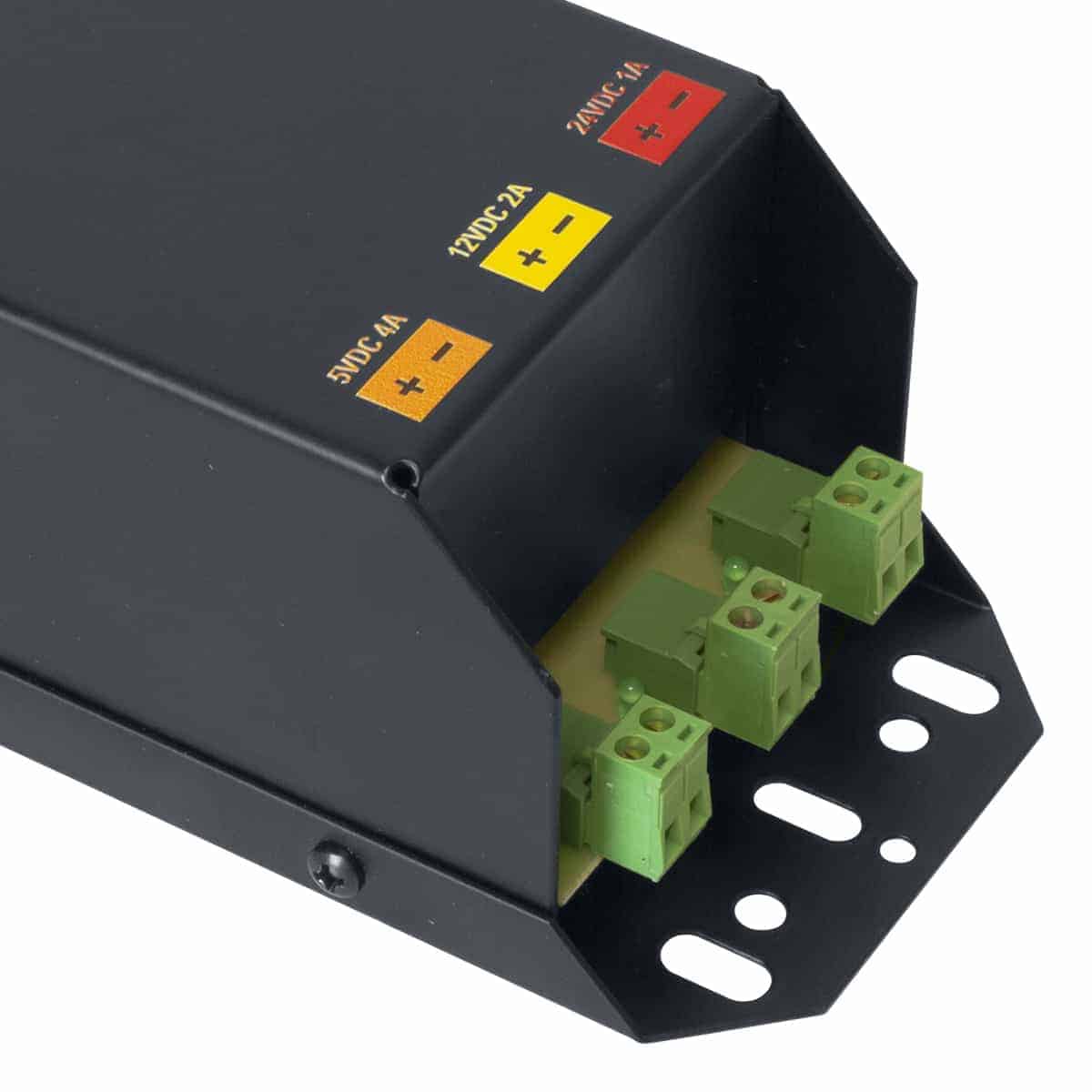

This heavy duty power supply features universal input (100-240VAC) and three independent outputs that can be used simultaneously. The 7-1/2 inch chassis is punched for installation. The IEC C14 power inlet can be used with a locally-compatible cord (not included). Phoenix-style output connections (5VDC@4A, 12VDC@2A, and 24VDC@1A).

Add to Favorites

Compare

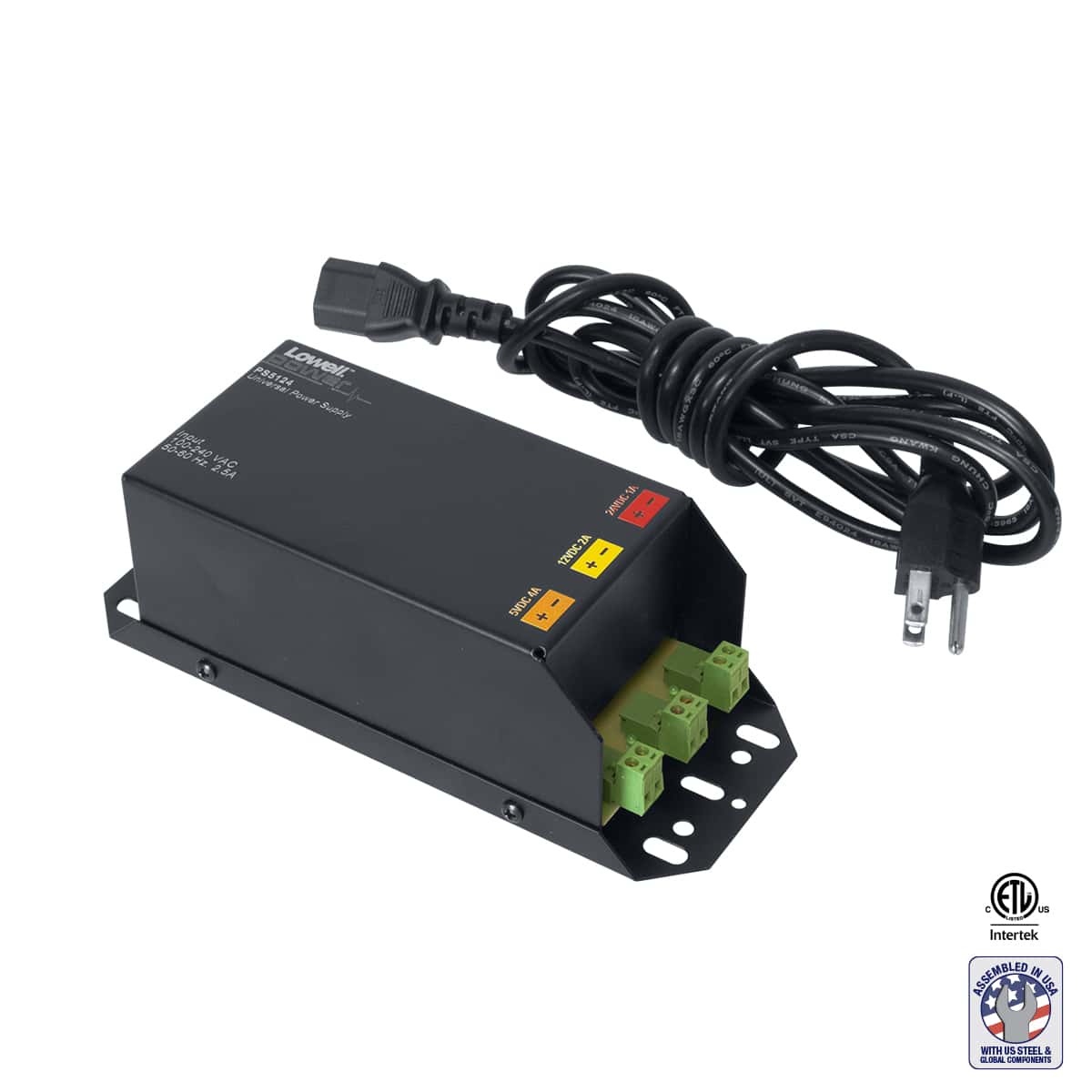

Universal Input: IEC C14 power inlet, 100-240VAC, 50/60 Hz, 6 ft. cord (C13 to NEMA 5-15P).
Independent Outputs (3): 5VDC@4A, 12VDC@2A, 24VDC@1A
LED status indicator on each output
Detachable terminals
Steel Chassis: 7.5 in. x 3.25 in. x 3.625 in.

Spec Sheet: 1953-PS5124

ETL Listing (UL 60065)
Certified U.S. Steel
Assembled in U.S.A. with global components

The heavy duty power supply shall be Lowell model PS5124, which shall be designed for continuous operation and feature three independent outputs: 5VDC@4A, 12VDC@2A, 24VDC@1A. The power supply shall have a steel chassis with black powder epoxy finish and mounting holes. The unit shall include an LED status indicator for each output, detachable Euro style terminal connections, and 6 ft. power cord (C13 to NEMA 5-15P).
