PFR SERIES | PFR-812 | 8U x 12"D Pivot Frame Wall Rack - CLOSEOUT

Name: PFR SERIES | PFR-812 | 8U x 12"D Pivot Frame Wall Rack - CLOSEOUT
SKU: PFR-812
Availability: InStock

Special Pricing - While Supplies Last

$276.80 MSRP

CLOSEOUT | Call 800-325-9660 for Availability
Recommended Alternative: PFR-818

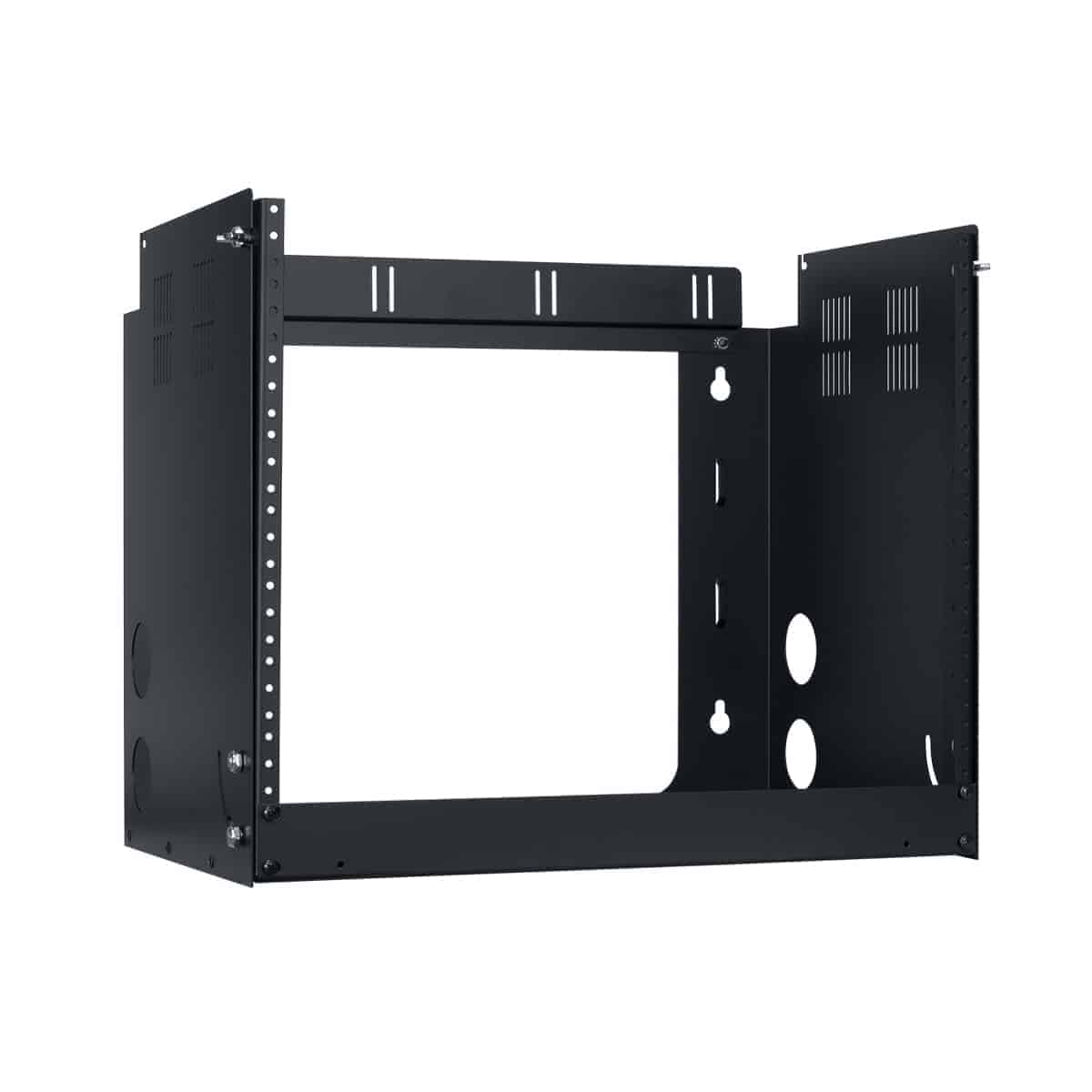

The PFR creates a platform for voice/data equipment (patch panels, routers, hubs, network switches) for a structured, organized cabling system. The hinged panel mounting frame pivots down 90 degrees, with an absolute stop, providing rear access to equipment for punch-down interconnects while in the fully open position.

Product Video

Add to Favorites

Compare

Heavy gauge steel
Integral tie loop points for cinch straps or wire ties
Removable rear panel mounts over wall obstructions
Vented base and sides
One-pair fixed position mounting rails tapped 10-32
Black semi-gloss powder epoxy finish
Pilot Point rack screws

Rack Space: 8U
Height: 16.25 in.
Width: 19.30 in.
Depth: 12.00 in. (11.97 usable)
Load Capacity: 60 lbs.

Spec Sheet: 1752-PFR812
CAD drawings: PFR-812

The 19” rack shall be Lowell Model PFR-812, which shall measure 16.25″H x 19.30″W x 12.00″D and provide 8 rack units of panel space. The hinged panel mounting frame shall pivot to 90 degrees with an absolute stop providing rear access to equipment for punch-down interconnects while in the fully open position. The rack shall be constructed of heavy duty certified U.S. steel with a black semi-gloss powder epoxy finish and load capacity of 60 lbs. It shall feature one pair of fixed position mounting rails tapped 10-32 on E.I.A. spacing, integral tie loop points, and a removable rear panel to facilitate mounting over and around existing wall obstructions.

Cable management
