PFR Series | PFR-66 | Pivot Frame Rack

Name: PFR Series | PFR-66 | Pivot Frame Rack
SKU: PFR-66
Availability: InStock

Special Pricing - While Supplies Last

$100.80 MSRP

Call 800-325-9660 for Availability
Recommended Alternative: PFR-818

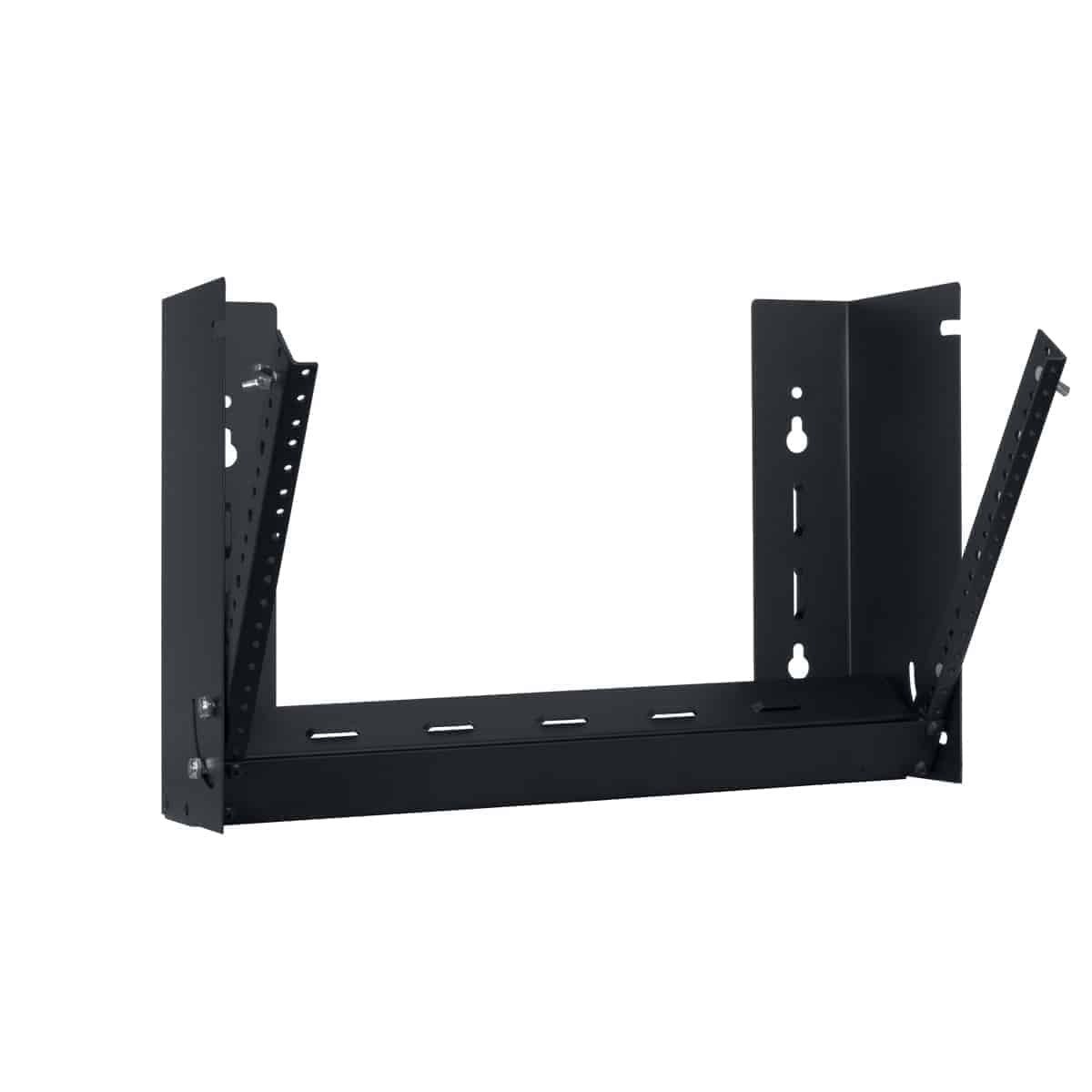

The PFR creates a platform for voice/data equipment (patch panels, routers, hubs, network switches) for a structured, organized cabling system. The hinged panel mounting frame pivots down 90 degrees, with an absolute stop, providing rear access to equipment for punch-down interconnects while in the fully open position.

Product Video

Add to Favorites

Compare

Heavy gauge steel
Integral tie loop points for cinch straps or wire ties
Open base
Solid sides
One pair fixed-position mounting rails, tapped 10-32
Black semi-gloss powder epoxy finish
Pilot Point rack screws

Rack Space: 6U
Height: 12.75 in.
Width: 19.30 in.
Depth: 6.00 in. (5.97 usable)
Load Capacity: 30 lbs.

Spec Sheet: 1750-PFR66
CAD drawings: PFR-66

The 19” rack shall be Lowell Model PFR-66, which shall measure 12.75″H x 19.30″W x 6.00″D and provide 6 rack units of panel space. The hinged panel mounting frame shall pivot to 90 degrees with an absolute stop providing rear access to equipment for punch-down interconnects while in the fully open position. The rack shall be constructed of heavy duty certified U.S. steel with a black semi-gloss powder epoxy finish and load capacity of 30 lbs. It shall feature one pair of fixed position mounting rails tapped 10-32 on E.I.A. spacing, integral tie loop points, and an open rear to facilitate mounting over and around existing wall obstructions.

Cable management
