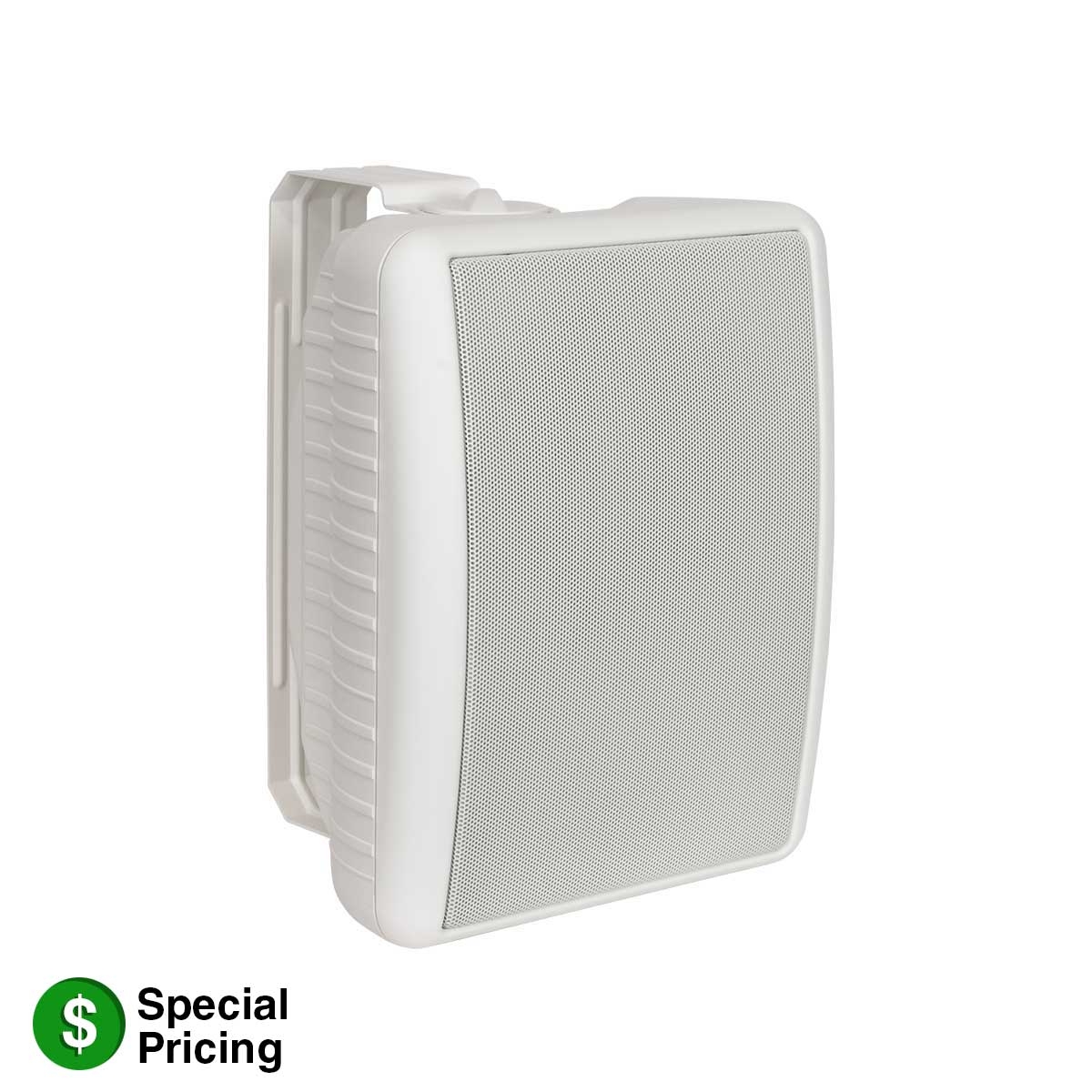

6 inch Two-Way Indoor Outdoor Speaker | OS-100TW - CLOSEOUT

Name: 6 inch Two-Way Indoor Outdoor Speaker | OS-100TW - CLOSEOUT
SKU: OS-100TW
Availability: InStock

Special Pricing - While Supplies Last

$149.00 MSRP

CLOSEOUT | Call 800-325-9660 for Availability Recommended Alternative: 0S-50TW

For commercial/residential indoor or protected outdoor applications, this compact assembly with 100W power rating meets specifications for high quality indoor or protected outdoor music. The two-way speaker features a 6.5-in. mica coated woofer with rubber surround and 1-in. silk-domed tweeter. It includes a screwdriver-adjustable switch for direct 8ohm or distributed 25V, 70V or 100V tap positions. Model OS-100TW features molded plastic housing, fine mesh aluminum grille, weather-resistant terminal cover, and an adjustable U-bracket. White.

Add to Favorites

Compare

High-fidelity music
Excellent sound reproduction at 8ohms, 25V, 70V or 100V
Indoor or protected (covered) outdoor installation

Driver: 6.5 in. mica coated woofer with rubber surround and 1 in. silk domed tweeter. 100W. Frequency response 97Hz–20kHz (±6dB). Average sensitivity 87.8dB (1W/1M). 120˚ H x 120˚ V conical dispersion.
Transformer: 25V/70V/100V
Enclosure: Molded plastic with white finish. 10.83 in. x 8.66 in. x 6.62 in.
Grille: Fine mesh aluminum grille. White.
Mounting Aids: Adjustable U-shaped bracket for horizontal or vertical installation allows speaker to rotate 90 degrees, depending on install orientation. White.

Spec Sheet: 1703-OS100TW
Instructions: Install-OS100
Revit Models: OS-100TW

The speaker for indoor/protected outdoor (covered) foreground music application shall be Lowell Model OS-100TW. The speaker shall have a 6.5 in. mica coated woofer with 1 in. silk domed tweeter. It shall have a 100W power rating with a screwdriver-adjustable switch for direct 8ohm or distributed 70V, 25V or 100V application. It shall have a frequency response of 97Hz–20kHz (±6dB) and a sensitivity of 87.8dB measured 1W/1M. Housing shall be molded plastic with a fine mesh aluminum grille with white finish. The assembly shall include an adjustable U-bracket for vertical or horizontal installation and shall feature slots for mounting to a single gang E.O. box. Each speaker shall measure 10.83 in. x 8.66 in. x 6.62 in. (without bracket), 11.15 in. x 8.66 in. x 8.5 in. (with included bracket) and weigh 7.35 lbs. Housing shall be equipped with 1/4 in.–20 threaded inserts on 3 in. centers to accept Lowell omni-directional bracket Model OS-BRKT-B (order separately).

OS-BRKT-(B/W): Omni-directional bracket (black or white)
