Mobile base for narrow 27-inch deep LGNR or LGVR racks

Mobile Base for 22"W x 27"D Rack | LMNB-27 - CLOSEOUT

Name: Mobile Base for 22"W x 27"D Rack | LMNB-27 - CLOSEOUT
SKU: LMNB27
Availability: InStock

Special Pricing - While Supplies Last

$286.80 MSRP

CLOSEOUT | Call 800-325-9660 for Availability

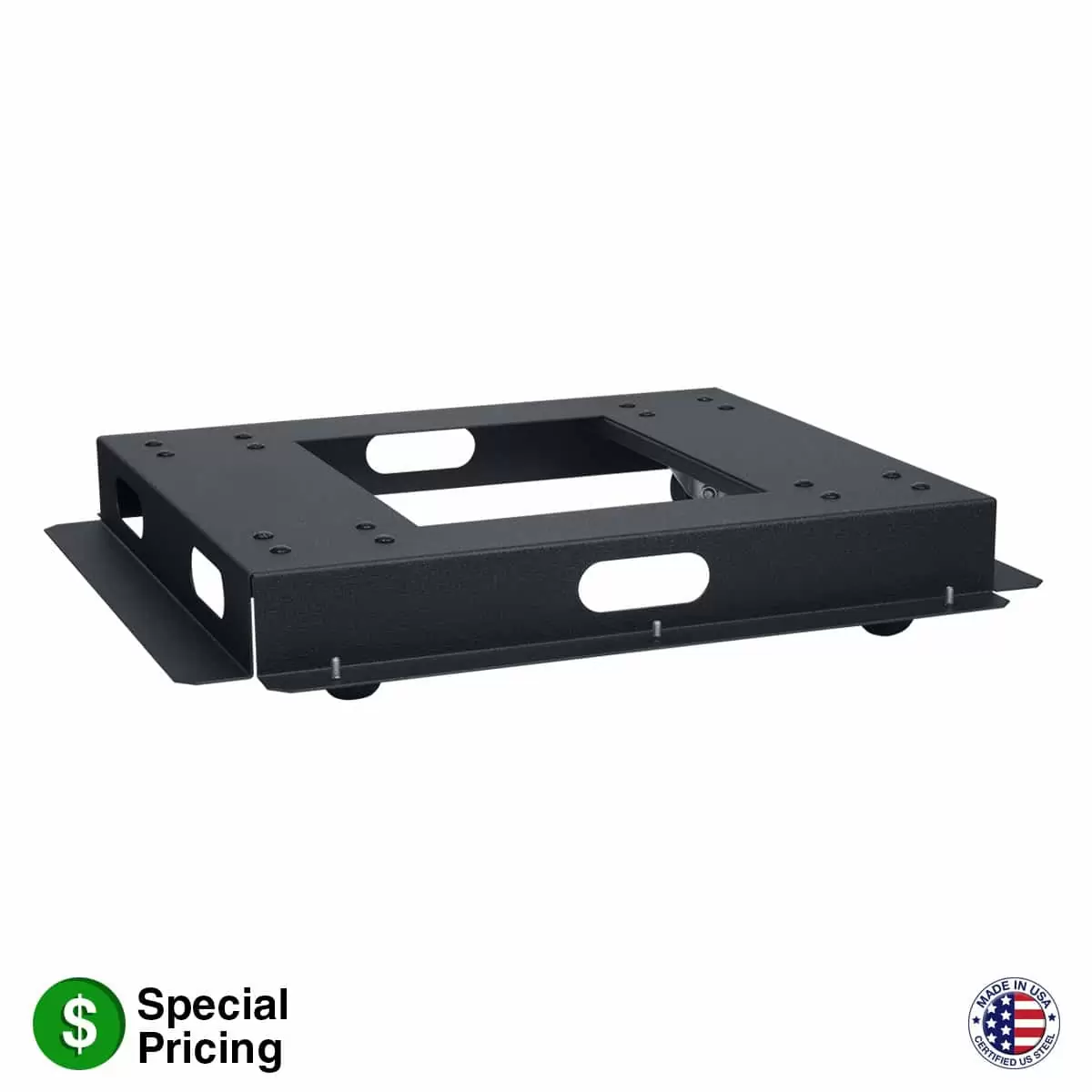

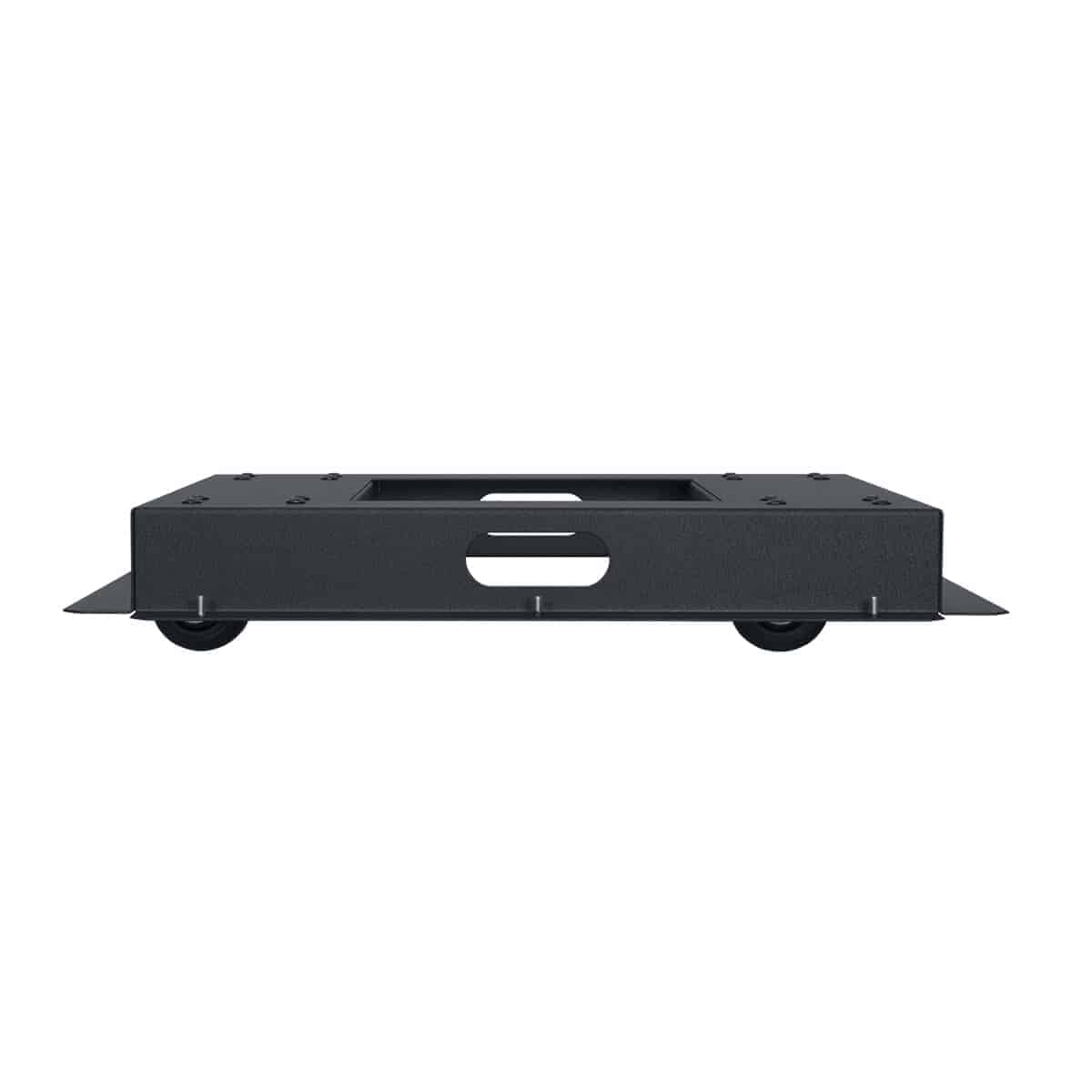

The mobile base designed for 22-inch wide x 27-inch deep racks (LGNR, LGVR Series) mounts inside the rack frame, providing a floor positioned flush to bottom rack space. This model is often specified to support extra heavy equipment mounted in the lowest rack position. Steel with black powder epoxy finish.

Add to Favorites

Compare

For use with 27-in. deep LGNR and LGVR Series racks
Fully-welded 14-gauge steel construction
Black wrinkle powder epoxy finish
Center opening for cable management
Side pass-through openings
Hardware for bolt-on installation
3 in. swivel casters (1400 lbs. load rating, increases rack height 1.25 in.)

SPEC SHEETS:

27″D Narrow Base: 1321-LMNB27

CAD DRAWINGS:

27″D Narrow Base: LMNB-27

INSTRUCTIONS:

Assembly: 9009-RackBase

The rack’s mobile base shall be Lowell Model LMNB-27, which shall be of an inner platform design that mounts inside the rack frame, adding a floor positioned flush to bottom rack space. Construction shall be 14-gauge welded steel with a center opening and black wrinkle powder epoxy finish. Side openings for cable pass-through. Four heavy-duty (3 in.) non-locking swivel casters shall be positioned inside the platform providing a total load rating of 1400 lbs. Increase in overall rack height shall be 1.25 inches. Mounting hardware shall be included.
