- 16-gauge steel
- PocketID™ polycarbonate window for paper label (not included)
- Eight (8) punches for volume controls. Accepts up to 8 standard volume controls (or 4 wide body in alternate positions)
- Hardware and black plugs for unused positions
- Rear lacing flange for wire management
- Smooth black powder epoxy finish
- Rack Space: 2U
- Height: 3.50 in.
- Width: 19.00 in.
- Depth: 0.625 in.

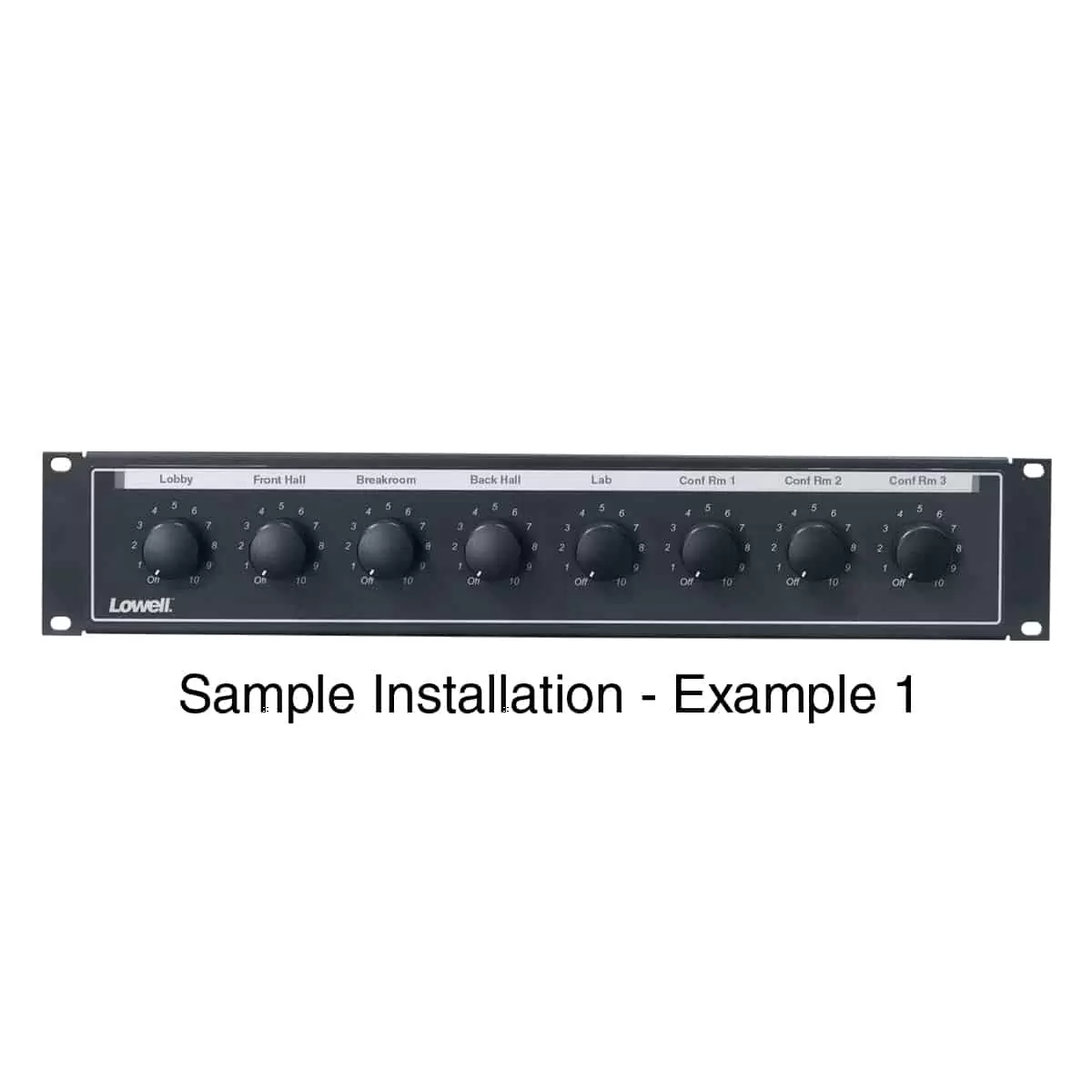

The rackmount panel for volume controls shall be Lowell Model LVC8P-ID-2. It shall be formed steel construction with a smooth black epoxy finish and 8 punched holes. Overall measurements shall be 19″W x 2U. The panel shall include hardware and a clear plastic overlay for labels.
Standard Volume Controls:
Wide Body Volume Controls:
These VCs require a blank space on either side (max. 4 per panel)
