15W Paging Horn
LUH-15TX / Unihorn™
$274.00 MSRP
$274.00 MSRP

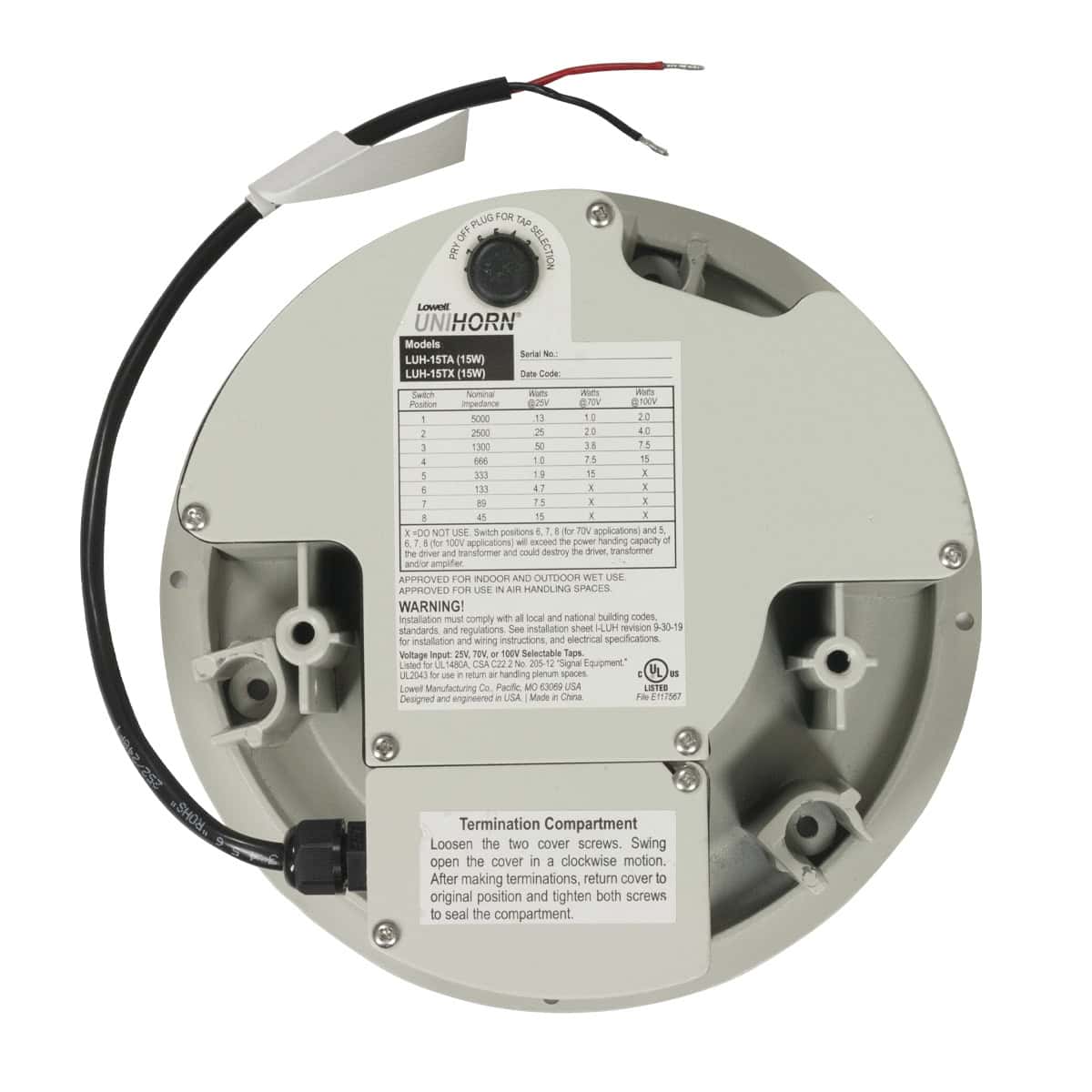

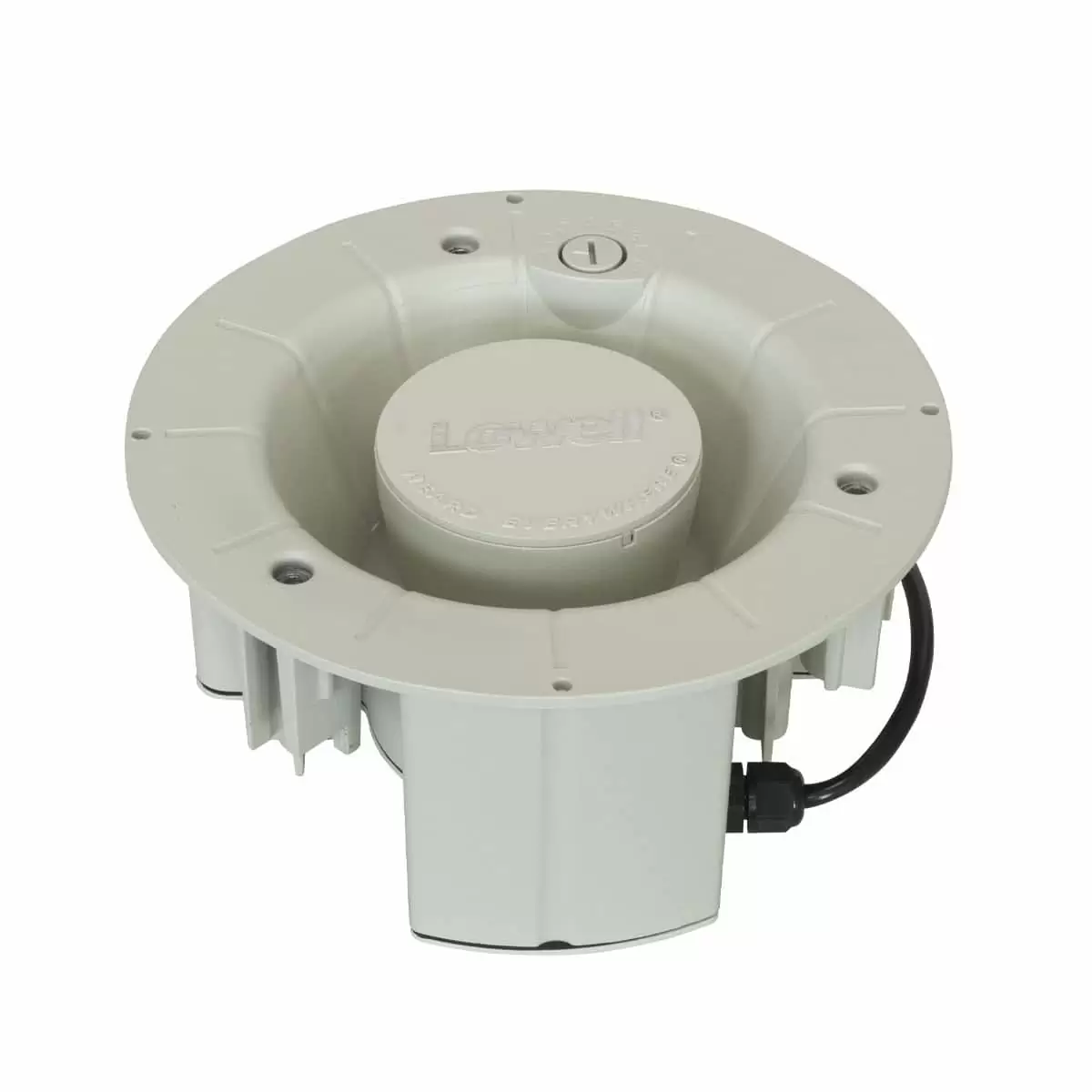

The general signaling paging horn shall be Lowell Model LUH-15TX, which shall include a self-contained compression driver in cast aluminum weather-resistant housing that can be installed in 4 inch deep (minimum) space. Power rating shall be 15 watts continuous. Frequency response shall be 740Hz–7.4kHz (±6dB). Sound pressure level shall be 105dB (1W1M) average, 116.8dB SPL (max) 15W/1M calculation based on power rating and measured sensitivity. Dispersion shall be 80 degrees conical @2000Hz (-6dB). Unit shall include a 100/70/25V transformer with taps selectable on front and rear of horn, and includes an 8ohm transformer bypass input. The horn will ship ready for standard two-wire connection with cable exiting through a rear waterproof gland-type connector. Housing shall be 7.1 in. diameter at its widest measure with an 8 in. diameter flat face and feature Network Grey powder epoxy finish. The assembly shall mount with a U-style mounting bracket (Lowell Model LUH-BRKT, ordered separately), a separate grille and backbox (for standard 8 in. speaker, 4 in. minimum depth, ordered separately), or custom rigging hardware (by others).
Note: This model requires some accessories for installation — either a U-bracket, backbox with grille, or custom rigging hardware.
