- Power Rating: 10W
- Attenuation: Continuous
- 1500 ohm impedance
- Use With: Audio line
- Activation: Rotary knob
- Volume Positions: Continuous (stops at min./max.)
- Termination: Pigtails
- Wall Plate: 1-gang standard
- Finish: Stainless
- Assembled in USA (US and China components)

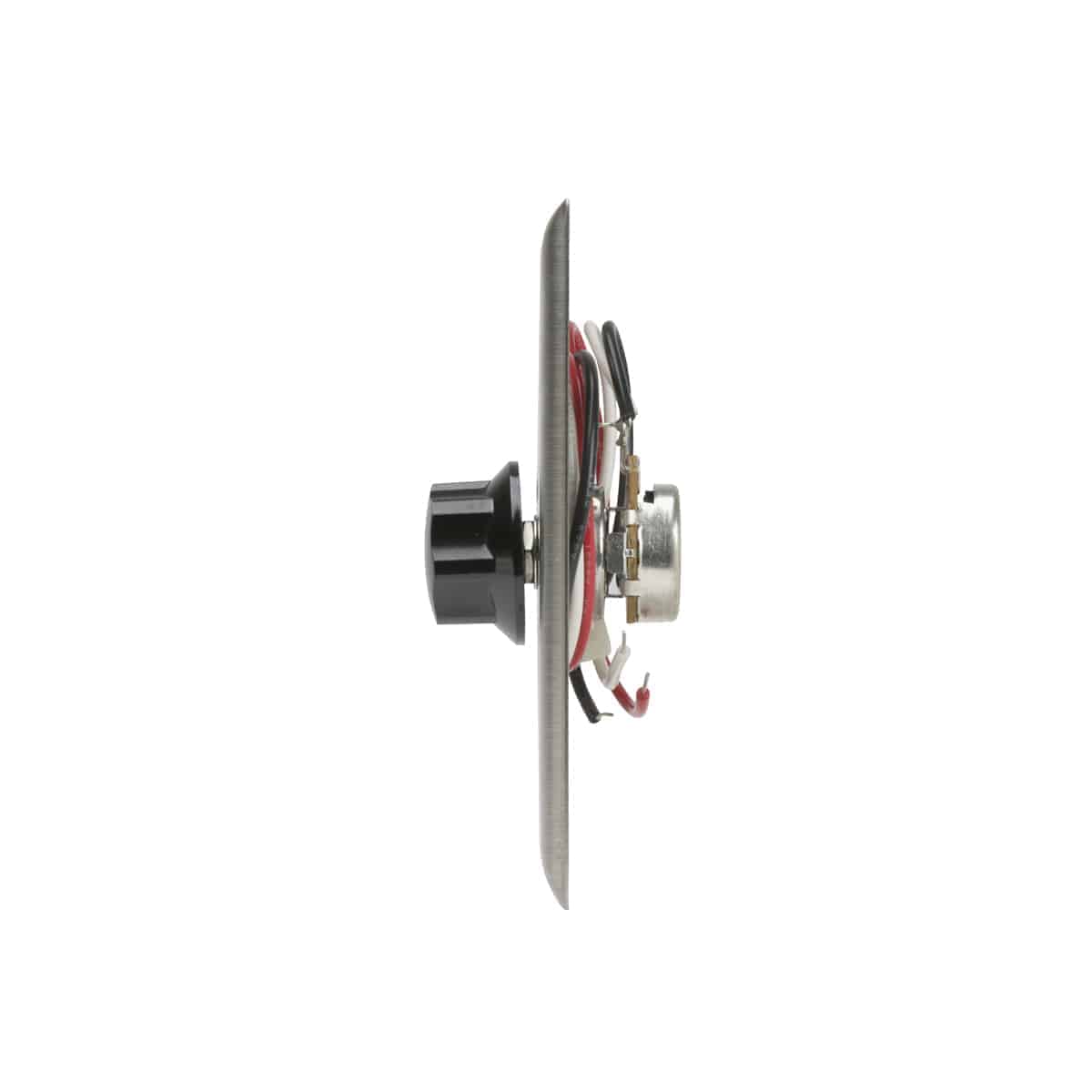

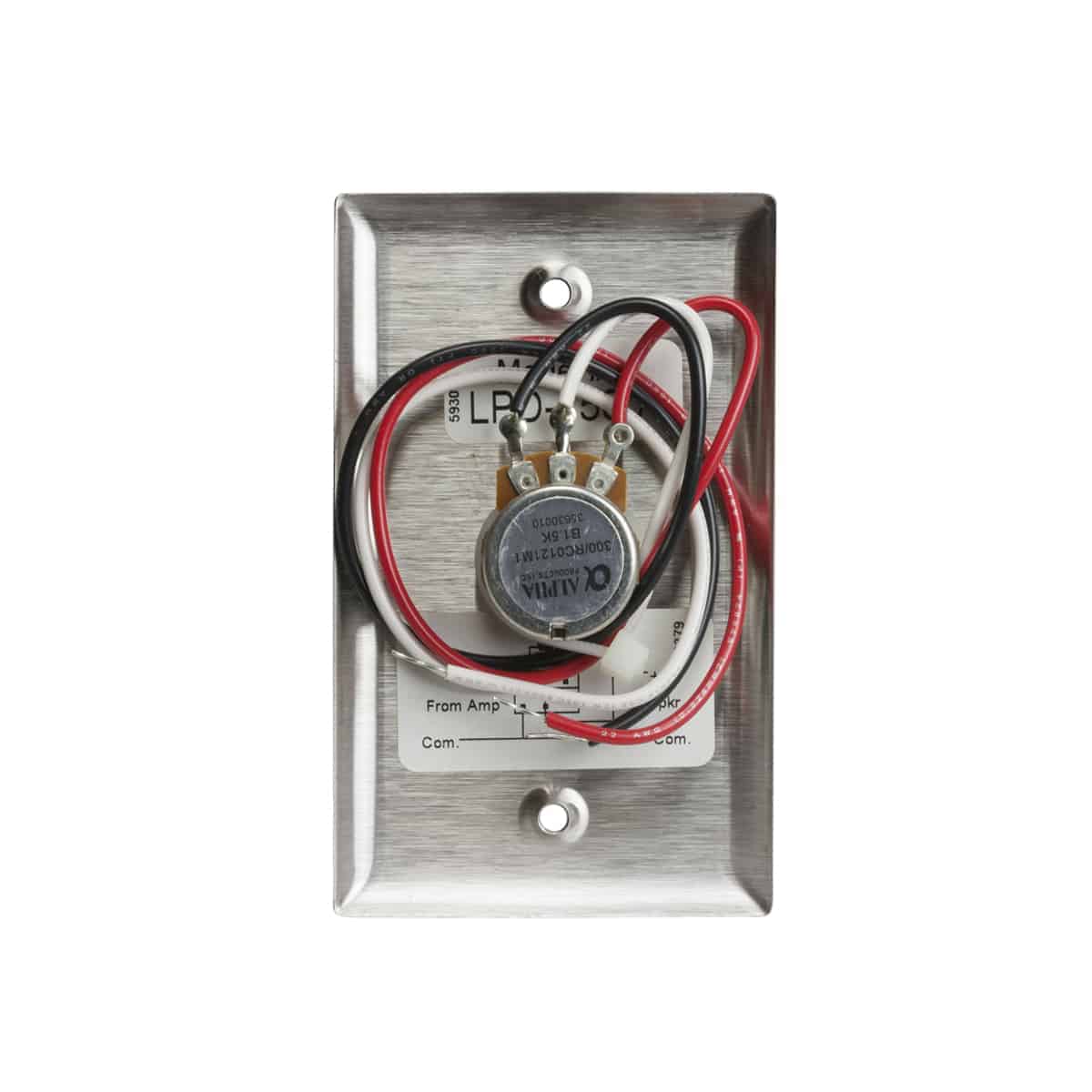

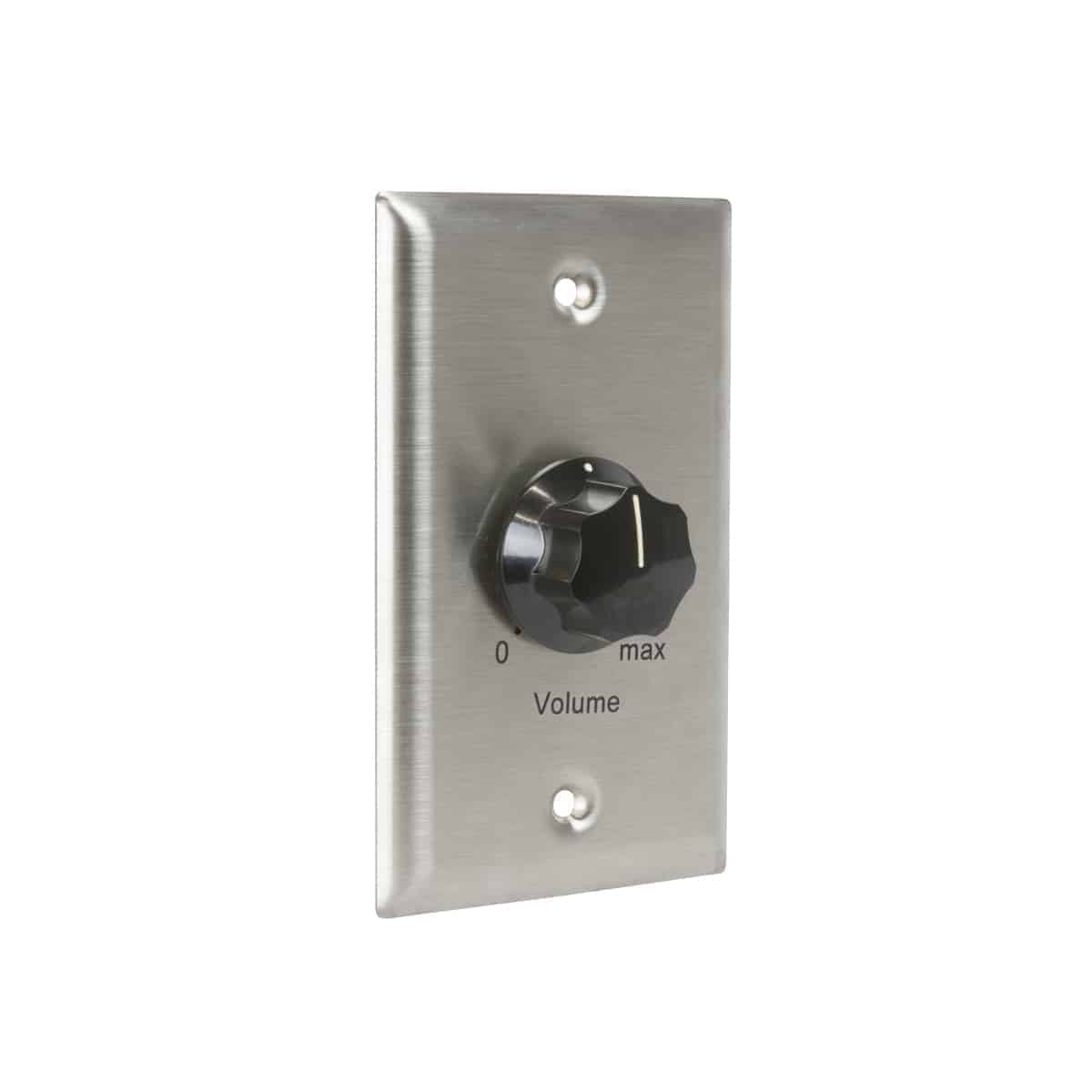

The wirewound L-pad control shall be Lowell Model LPD-1500S, which shall provide a contant 1500 ohm load to the power source. Attenuation shall be continuous with a stop at minimum and maximum. The attached one-gang, stainless steel faceplate shall feature a stamped and paint filled dial scale, fluted black knob and mounting screws.
- P1X: Surface-mount wall box, 1-gang
