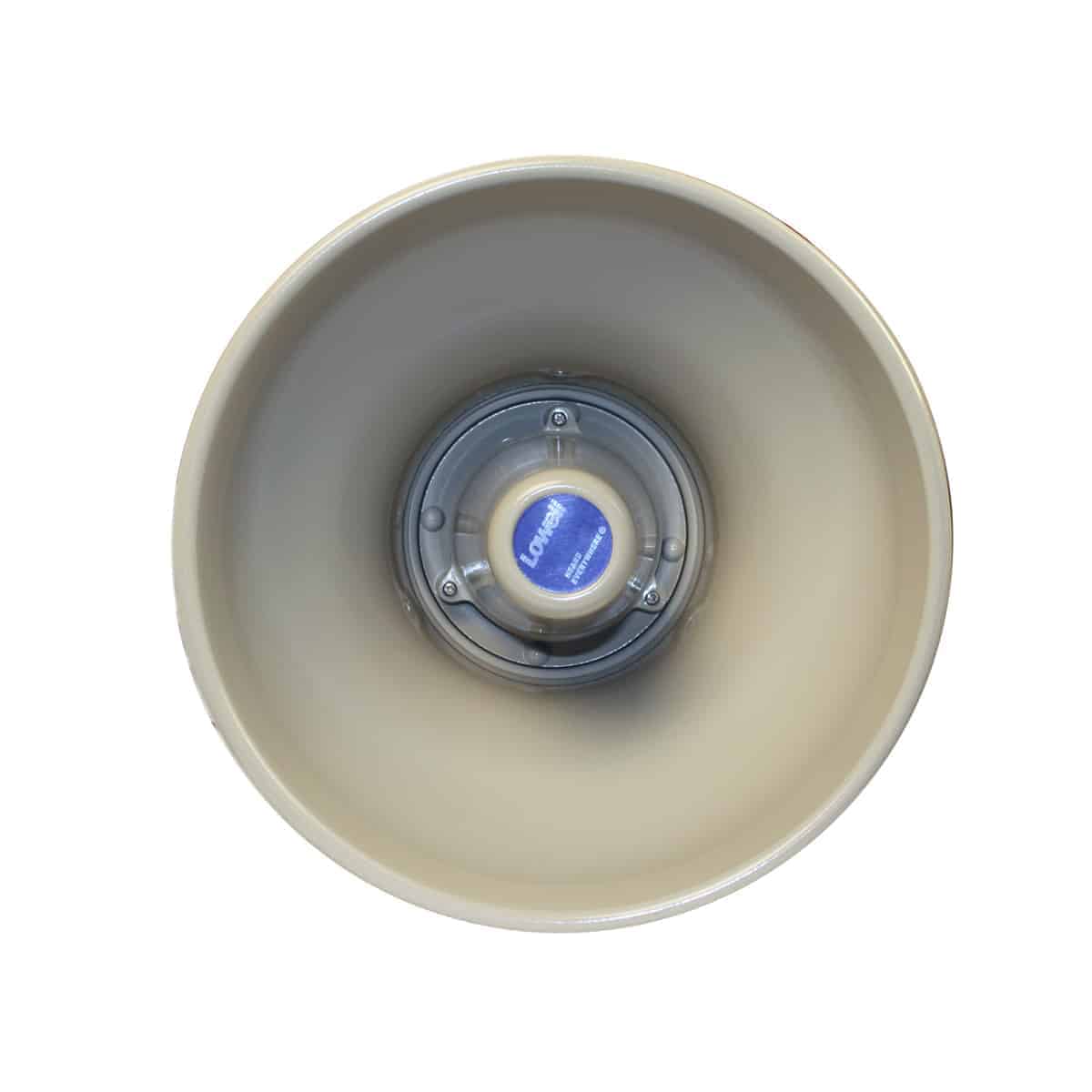

15W Reentrant Horn with Xfmr, Enclosure, Bracket
LH-15TA
$210.00 MSRP
$210.00 MSRP
The horn shall be Lowell Model LH-15TA, which shall be a re-entrant design with a high efficiency 15W compression driver, round bell and universal swivel-style base. Power rating shall be 15 watts continuous. Frequency response shall be 537Hz-4.5kHz (±6dB) with a sensitivity of 112.2dB log average (1W/1M) 124.0dB maximum SPL (calculated based on power rating and measured sensitivity). Dispersion shall be 50 degrees conical (2kHz Octave Band). Impedance shall be 5000, 2500, 1300, 670, 330, 90, 45 ohms. Horn shall include a 25/70/100V transformer with screwdriver selectable taps. Taps for 25V use shall be: .13, .25, .48, .93, 1.9, 6.9, and 13.9W. Taps for 70V use shall be: 1, 2, 3.8, 7.5, and 15W. Taps for 100V use shall be: 2, 4, 7.7 and 15W. Transformer connections shall be protected by a plastic cover with strain relief. The horn assembly shall measure 8.94 in. dia. x 9.38 in. deep and shall be weather-resistant metal construction painted in corrosion-resistant beige epoxy.
