Rack:
- Configurable top has 15U opening for 19 in. panels.
- Recessed solid steel rear door with key lock
- Two pairs of fully adjustable rails tapped 10-32 with printed RU scale
- Cable Management: multiple lacing points, holes, knockout panels
- Grounding stud
- Threaded inserts (for leg levelers)
- Beveled corners
- Black wrinkle textured powder epoxy finish
- Pilot Point screws with captive washers
Accessory Bundle:
- Solid front door with key lock
- Side panels
- Power strip with 24 outlets (15A/20A), surge suppression, 12 ft. cord
- Fan panel with 10 in. turbo fan (7U)

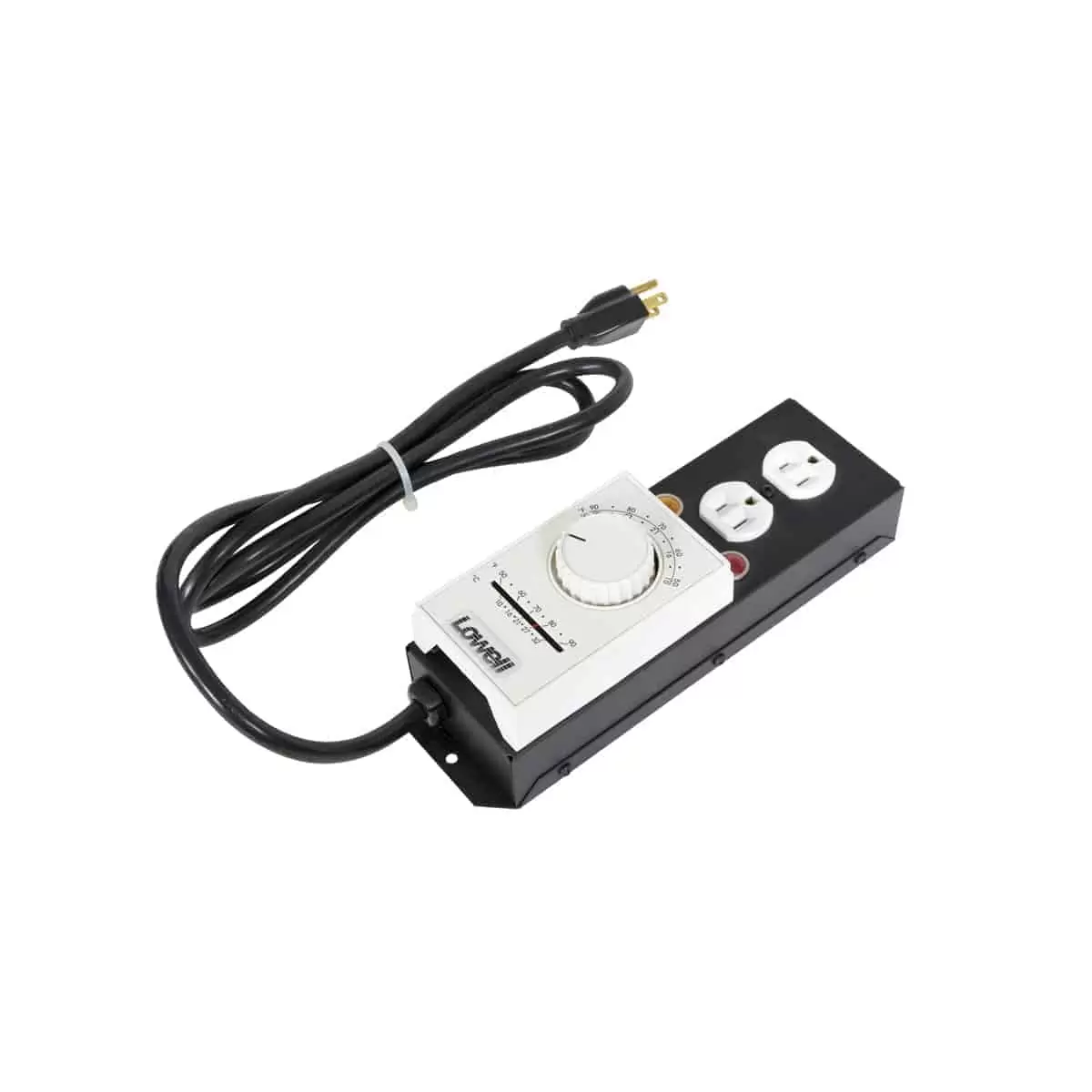

- Thermostat control for fan
- Slotted cable managers, 4 straight, 2 offset
- Vertical cable manager
- Heavy-duty leg levelers
- Extra rack screws
- Velcro cable wraps
- Rack Space: 44U
- Rack Height: 83.13 in.
- Rack Width: 22.00 in.
- Rack Depth: 32.00 in.
- Useable Depth: 29.34 in.
The EIA/TIA compliant, UL Listed gangable equipment rack shall be Lowell Model LGNR-4432-BAV, which shall measure 22”W x 32”D x 83.13”H (44U). The rack shall be UL Listed in the U.S. and Canada with a load capacity of 3150 lbs. Construction shall be fully welded 16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced at loadbearing junctions and finished with a durable black powder epoxy coating. The rack shall feature a solid steel rear door with key lock, two pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing, a rear frame with removable knockout panels, combination knockouts (1/2”, 3/4”, 1”, 1-1/2”) for conduit wiring, BNC knockouts for UHF/VHF antenna, grounding stud, and integral top rails with mounting holes tapped 10-32. The rack shall ship with a bundle of accessories (not installed) including a solid steel front door, one pair side panels, a 10” turbo fan in a 7U rackmount panel, thermostat, 20A power strip with 24 outlets, six horizontal cable managers, one vertical cable manager, bag of velcro cable wraps, four leg levelers and two extra bags of Pilot Point screws.
