KOP-B Series:  Knockout Panel w/Blower Fans

KOP-B Series: Knockout Panel w/Blower Fans

$139.16$165.10 MSRP

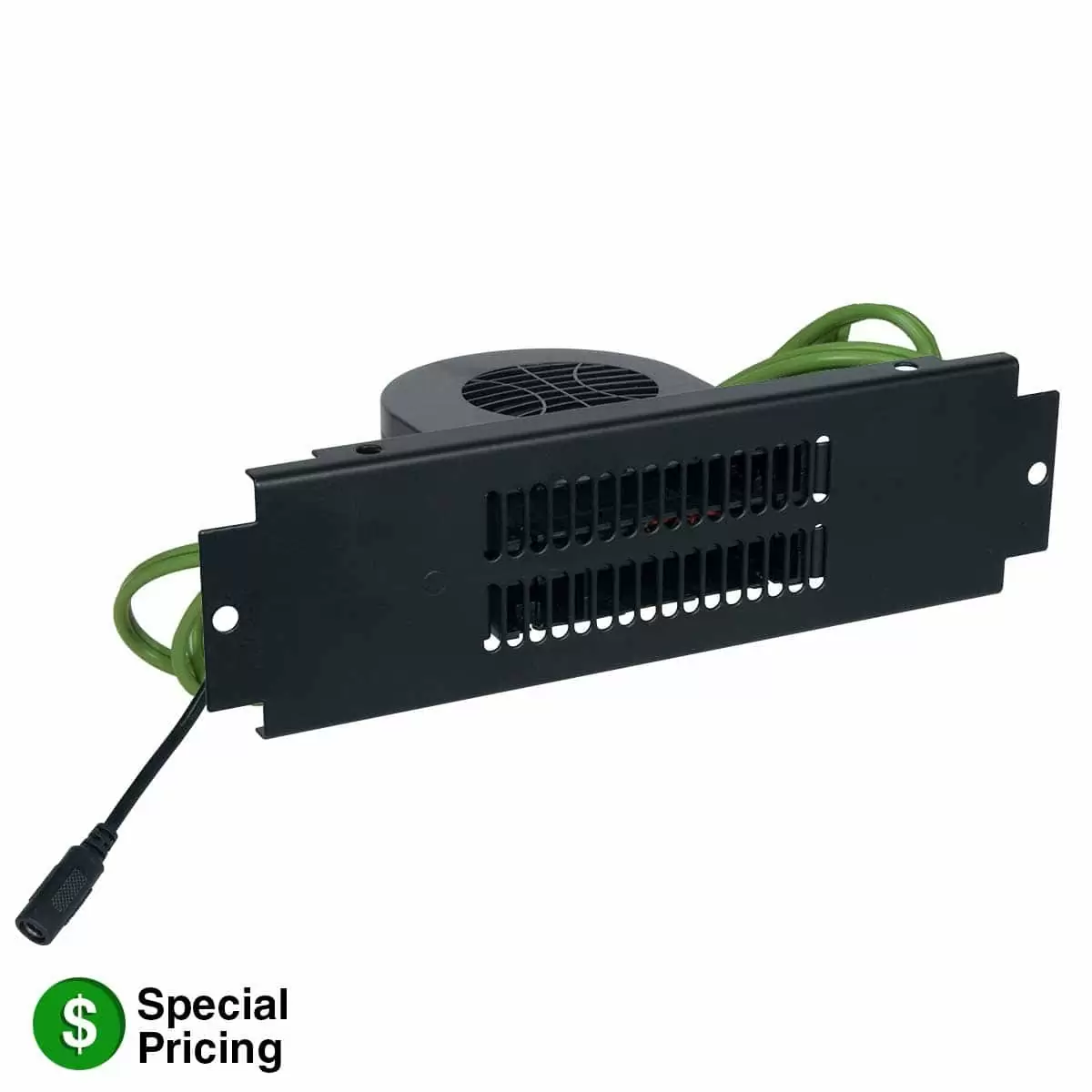

Steel panel with dual blower fans is made to replace a rear knockout panel in select Lowell racks. Air is pulled in from top/bottom fans, then blown out through front vents. Includes power supply. Optional thermostat probe controls fan operation.

NEW -- Available Summer 2018


FEATURES

• Steel panel w/black powder epoxy finish and dual blower fans (overall 9.625"W x 2.75"H x 4.5"D)

• Replaces rear knockout panel in Lowell rack series: LER, LFR, LHR, LGR, LGNR, LGVR, LSGR, LSER, LPPR, LPR, LWR.

• Two blower fans are positioned above one another to pull air from above/below them.

• Includes power supply (12VDC, 460mA power required)

• Optional thermostat probe controls fan operation (Model KOP-BT only)


TECHNICAL DOWNLOADS

• Spec Sheet:  1886-KOPB


A&E SPECIFICATIONS

The rack shall include a knockout panel with blower fans, Lowell panel no. ______ (KOP-B, KOP-BT). Overall measurements shall be 9.625"W x 2.75"H x 4.5"D. Dual blower fans shall have 45cfm total airflow rating and 29dB total noise rating. The panel have a black finish and include a power supply.

Model KOP-BT (only):  The panel shall also include a thermostat probe to monitor ambient temperature and activate blower fans when temperature reaches 86°F, and deactivate them when temperature reaches 72°F.

Compare
Model No.: KOP-B Series Categories: , Tags: , ,
Model No. Miscellaneous PriceQuantity
KOP-BT Thermostat probe $165.10 MSRP
Add to Cart Log in to place an order.
KOP-B N/A $139.16 MSRP
