- Power Rating: 200W
- Attenuation: 3dB per step (33dB total)
- Use With: 70V speaker line
- Activation: Key
- Volume Positions: 0-10
- Two steps of 6dB each before off
- Termination: Phoenix-style
- Wire Capacity: 14-gauge
- Wall Plate: 2-gang decora-style
- Finish: Stainless Steel & Black
- Fits standard 2-gang EO box (2.125 in. min. depth)
- TAA compliant
- ETL Listed (UL60065, UL2043)
- USA-certified steel
- Made in USA with US and global components

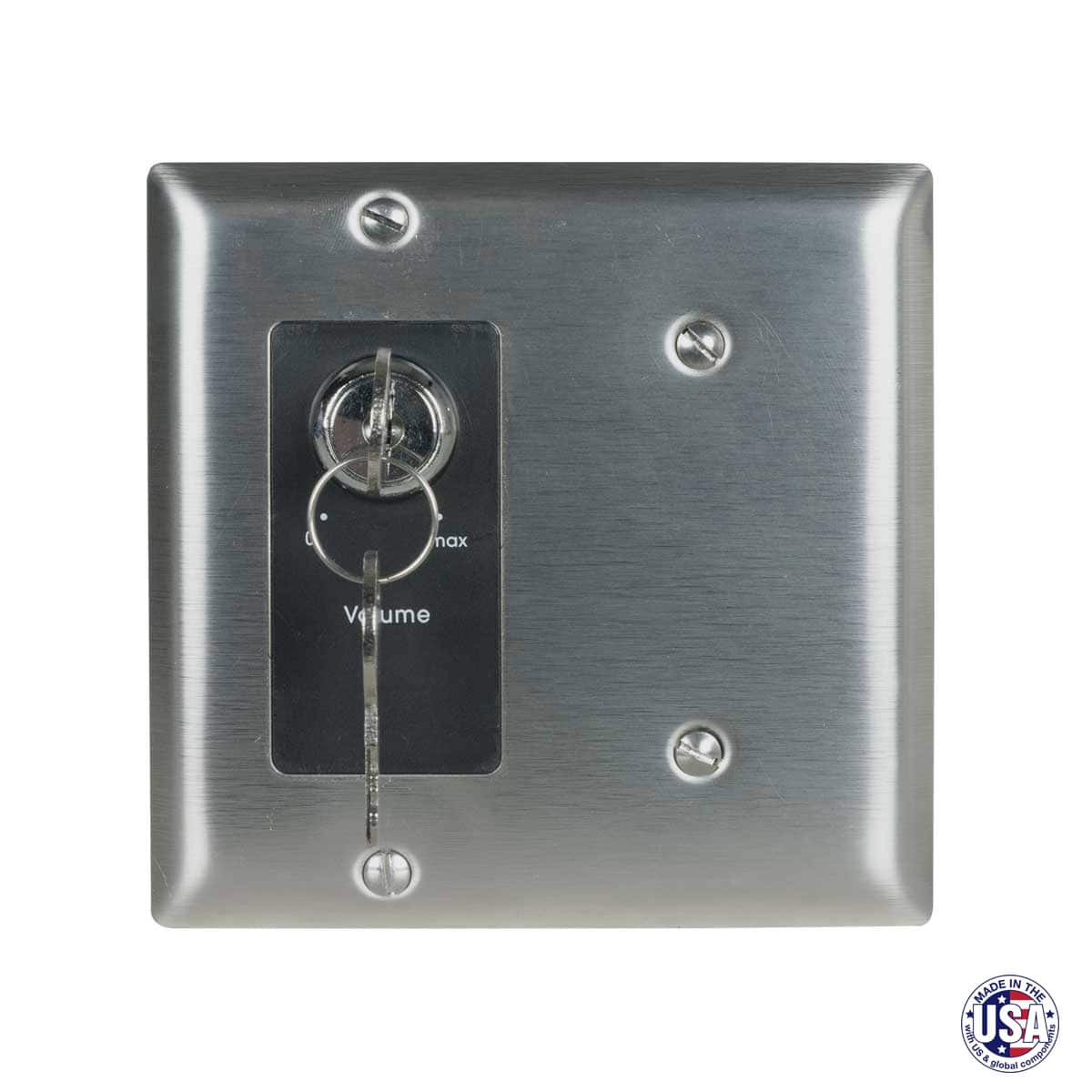

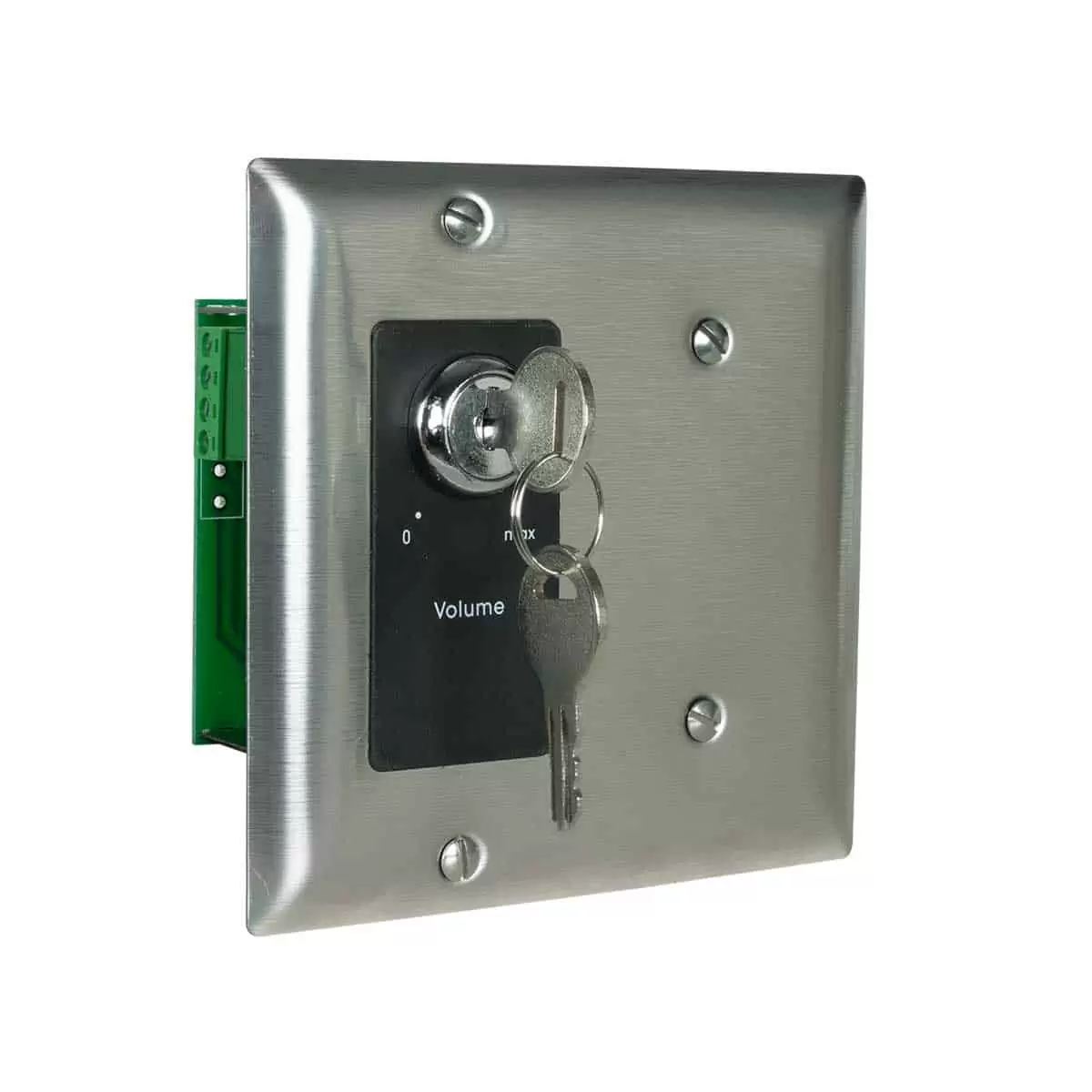

The ETL Listed (UL60065, UL2043) volume control shall be Lowell Model KL200-DSB with 200W power rating, 3dB per step attenuation (6dB per step in last two positions before off), and switch positions 10-off. It shall feature phoenix-style plug-in screw termination strips for pre-wire with up to 14-gauge wire capacity. It shall include a two-gang decora-style wall plate (stainless steel with black subplate). Volume adjustment shall be controlled by a key. It shall be Made in USA with US and global components. The mono attenuator shall be ETL Listed and Trade Agreement Act (TAA) compliant.
- P1X-2: Surface-mount wall box, 2-gang
