JR410: 4" 15W single cone driver with 8W transformer

4 inch Single Cone Speaker with 70V 8W Transformer

Name: 4 inch Single Cone Speaker with 70V 8W Transformer
SKU: JR410-T870
Price: 83.80 USD
Availability: InStock

JR410-T870

$83.80 MSRP

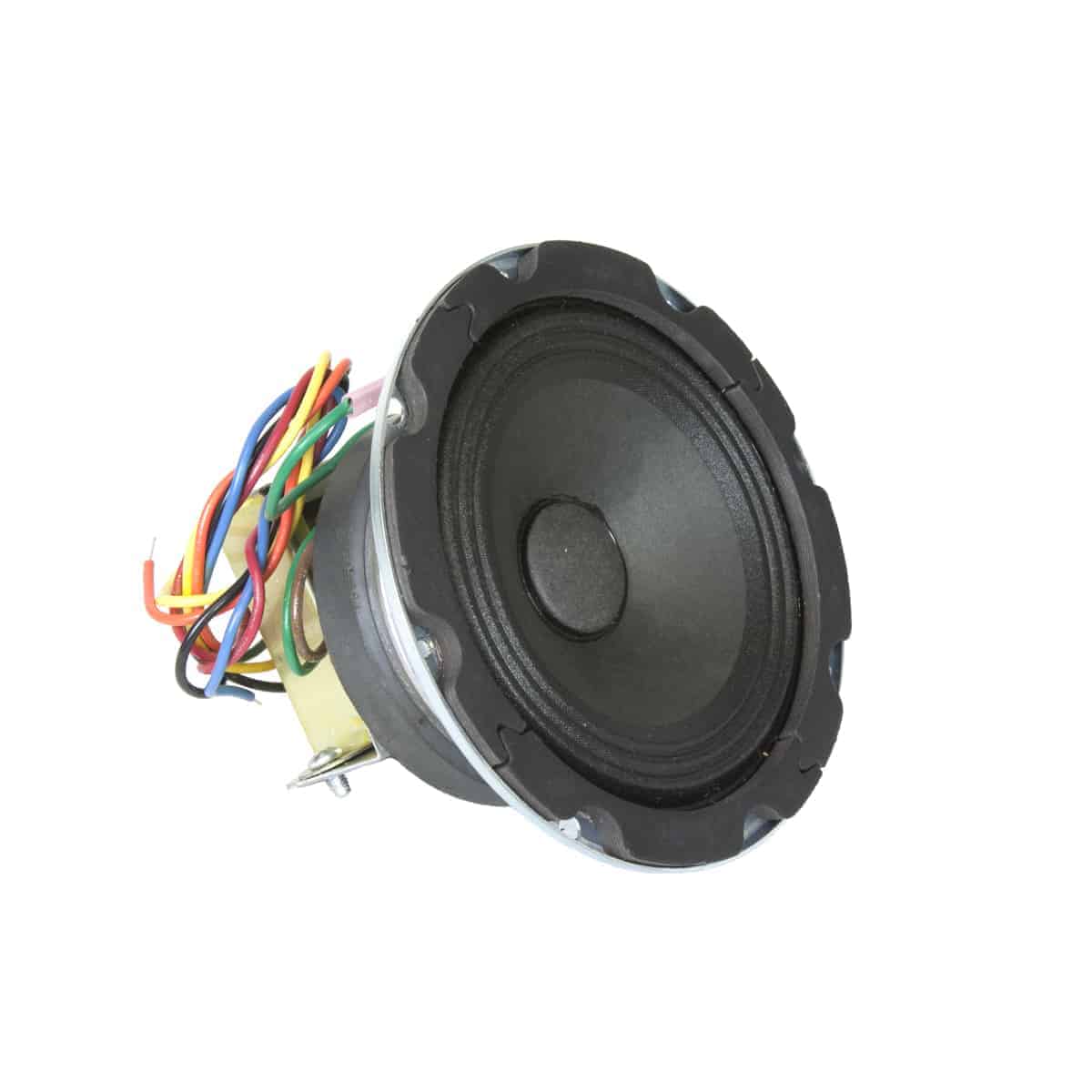

Model JR410-T870 high compliance 4-inch 15W single cone driver with mounted 70V 8W transformer provides wide frequency response and wide dispersion for background music and paging systems. Order grille and enclosure separately.

Add to Favorites

Compare

Driver: 4-inch 15W single cone driver with 10 oz. ceramic magnet, paper cone, treated cloth surround.
Frame: 20-gauge stamped steel, zinc-plated.
Mounting Bolt Circle: 4.69 in.
Transformer: 70V with taps at 1, 2, 4, 8W
Assembly Frequency Response: 75Hz–15.7kHz (±6dB) and 57Hz–20kHz (±7.4dB)
Assembly Mounting Depth: 3.9 in.
Assembly Dispersion Angle: 170 degrees conical
Assembly Average Sensitivity: 91.4dB

Spec Sheet: 1407-JR410T870

Assembled in U.S.A. with global components
Meets or exceeds industry standards

The high compliance 4-inch cone driver with mounted transformer shall be Lowell Model JR410-T870. The driver shall be of the permanent magnet type with a paper cone, treated cloth surround, and dispersion angle of 170 degrees @ 2000Hz (-6dB). Average sensitivity shall measure 90.8dB (SPL at 1W/1M) and power rating shall be 15 watts RMS. The driver shall feature 1 inch diameter voice coil (8ohm impedance), 10 oz. ceramic magnet, 20-gauge steel frame with 5.03 inch diameter and four holes spaced at 90 degrees on 4.69 in. diameter mounting bolt circle. Assembly frequency response shall be 75Hz–15.7kHz (±6dB) and 57Hz-20kHz (±7.4dB). External metal parts shall be zinc-plated. The mounted transformer shall be 70V with selectable taps at 1, 2 4, 8W. Transformer response shall be 50Hz–15kHz (+1dB) with insertion loss of 0.8dB. The driver-transformer assembly shall have an overall depth of 3.9 in.<
