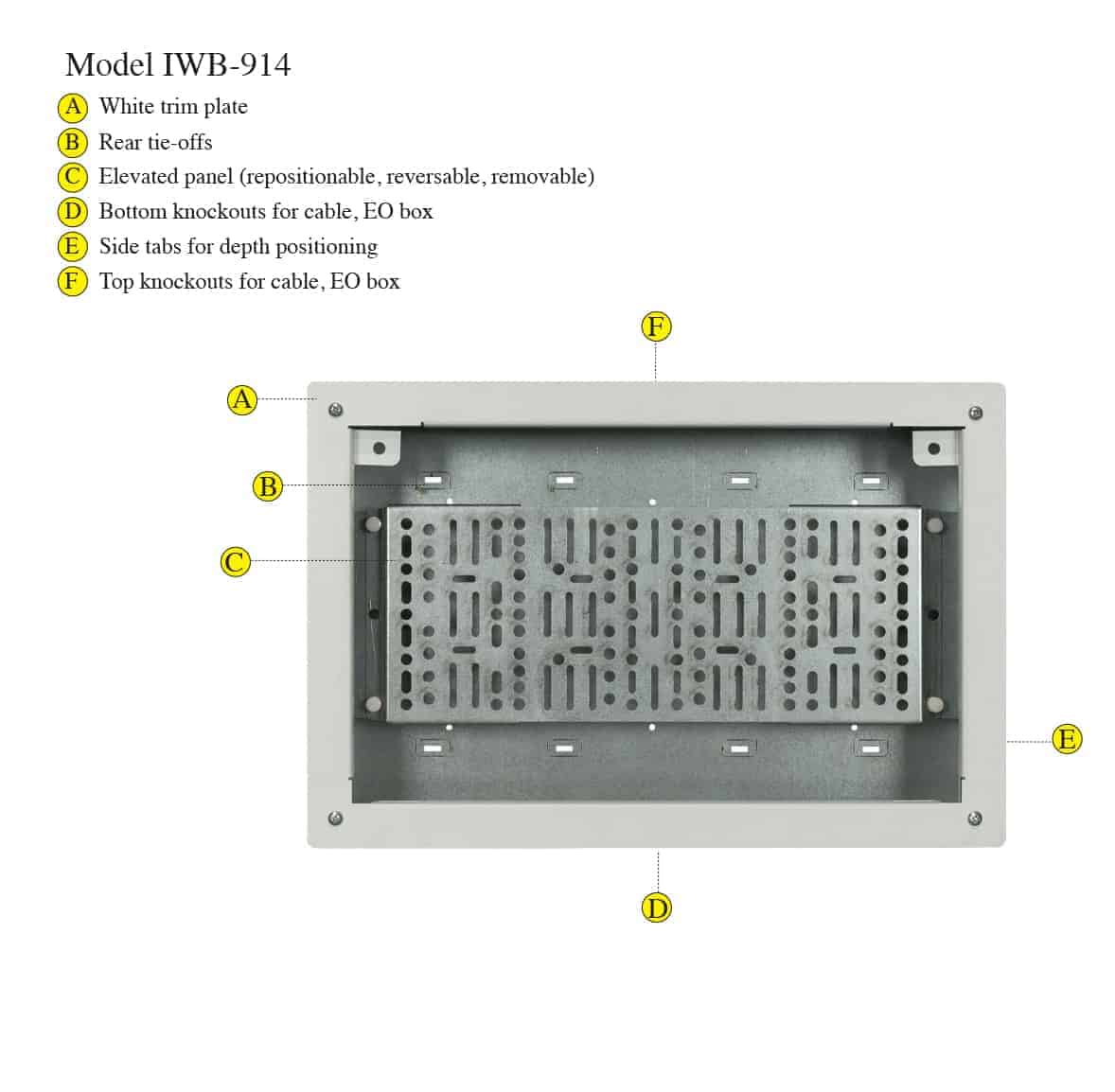

- Galvanized steel box
- Steel trim plate with white finish
- One elevated panels can be moved, removed, or reversed to mount upside down
- Knockouts in top and base for cables and EO box (box not included)
- Rear anchors for cable tie-off
- Box mounts between 16″ wall studs in 4″D wall
- Grounding stud in base
- Height (without trim plate): 9.25 in.
- Width (without trim plate): 14.25 in.
- Depth (usable): 3.6 in.
- Load Capacity: 15 lbs.
- TAA compliant
- BAA compliant
- USA-certified steel
- Made in USA

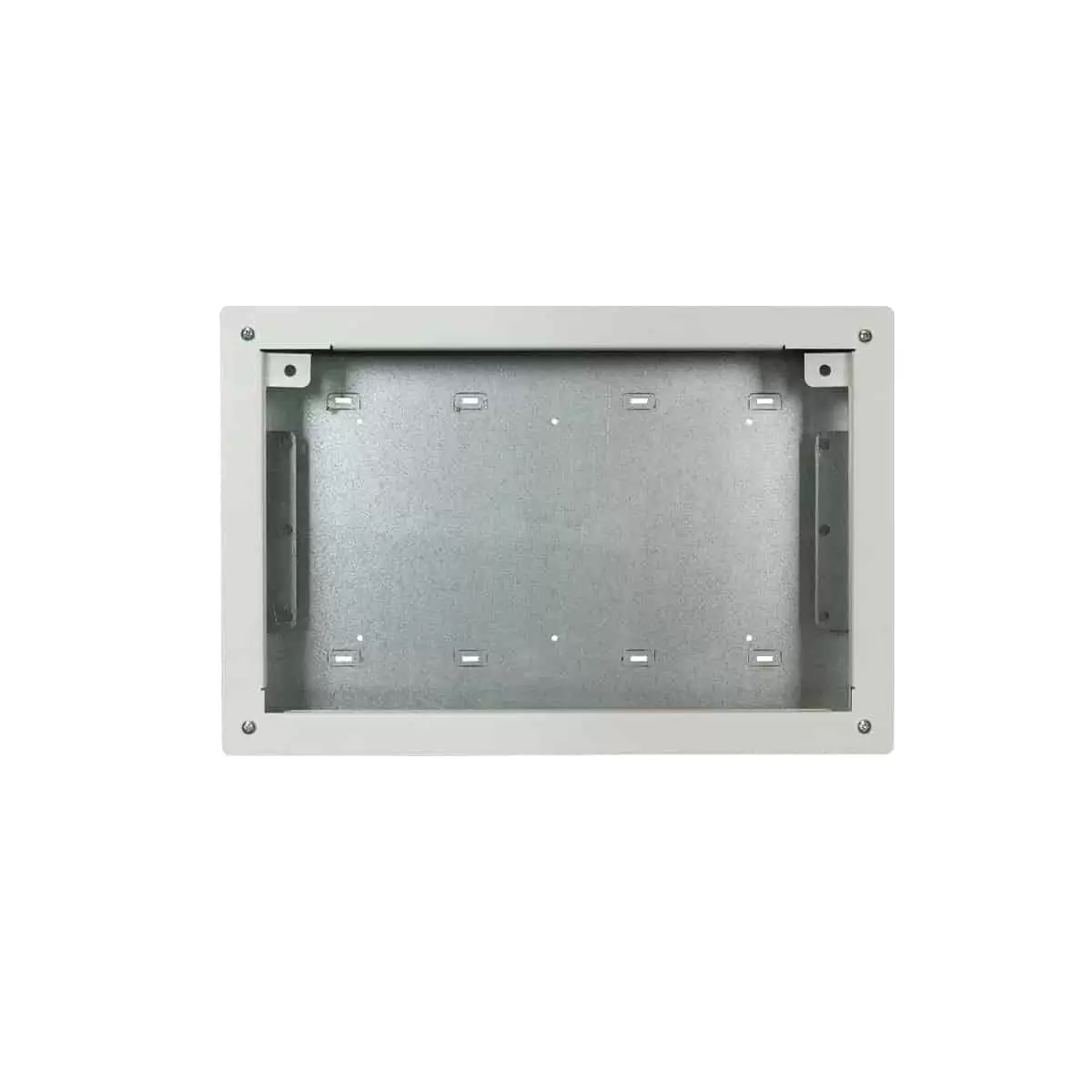

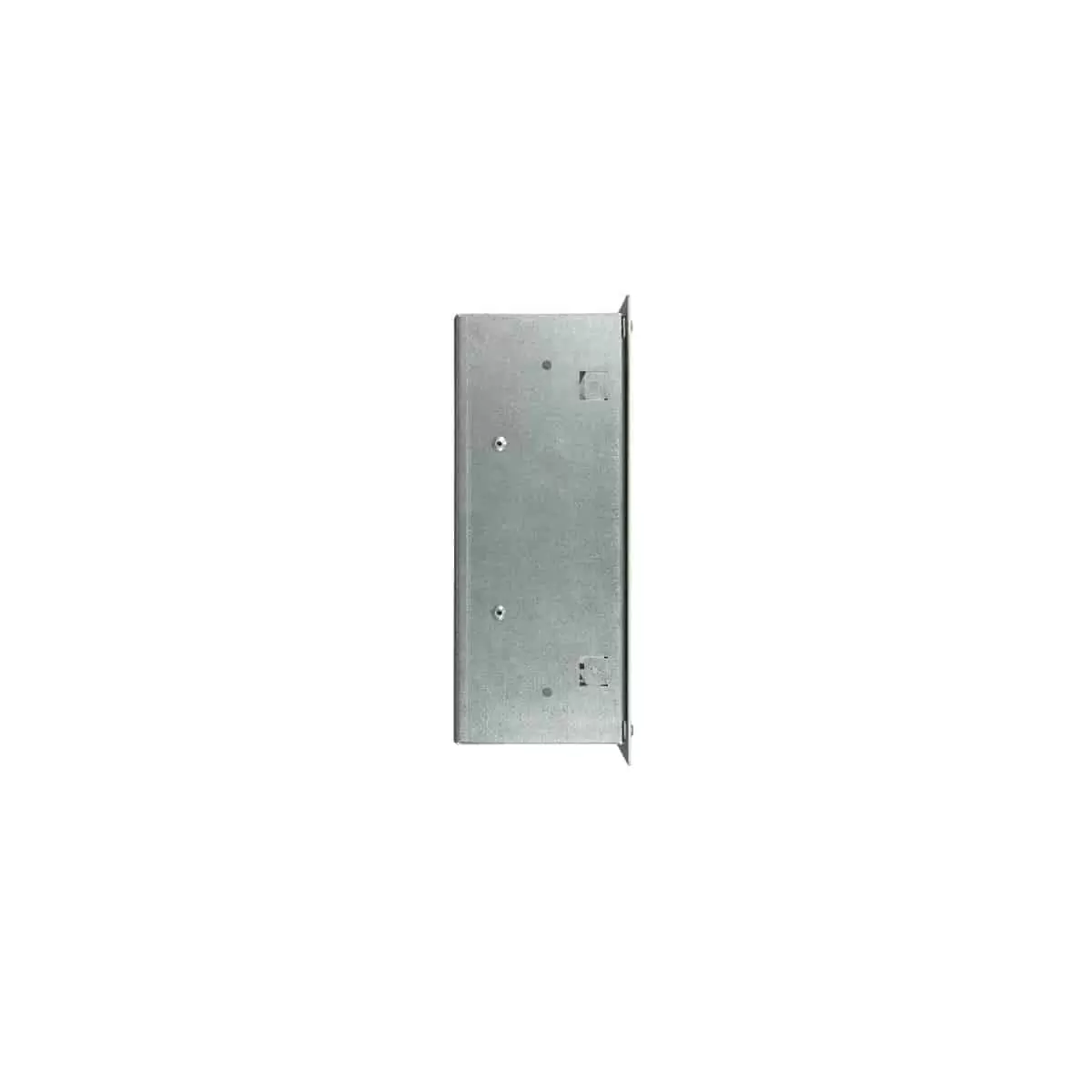

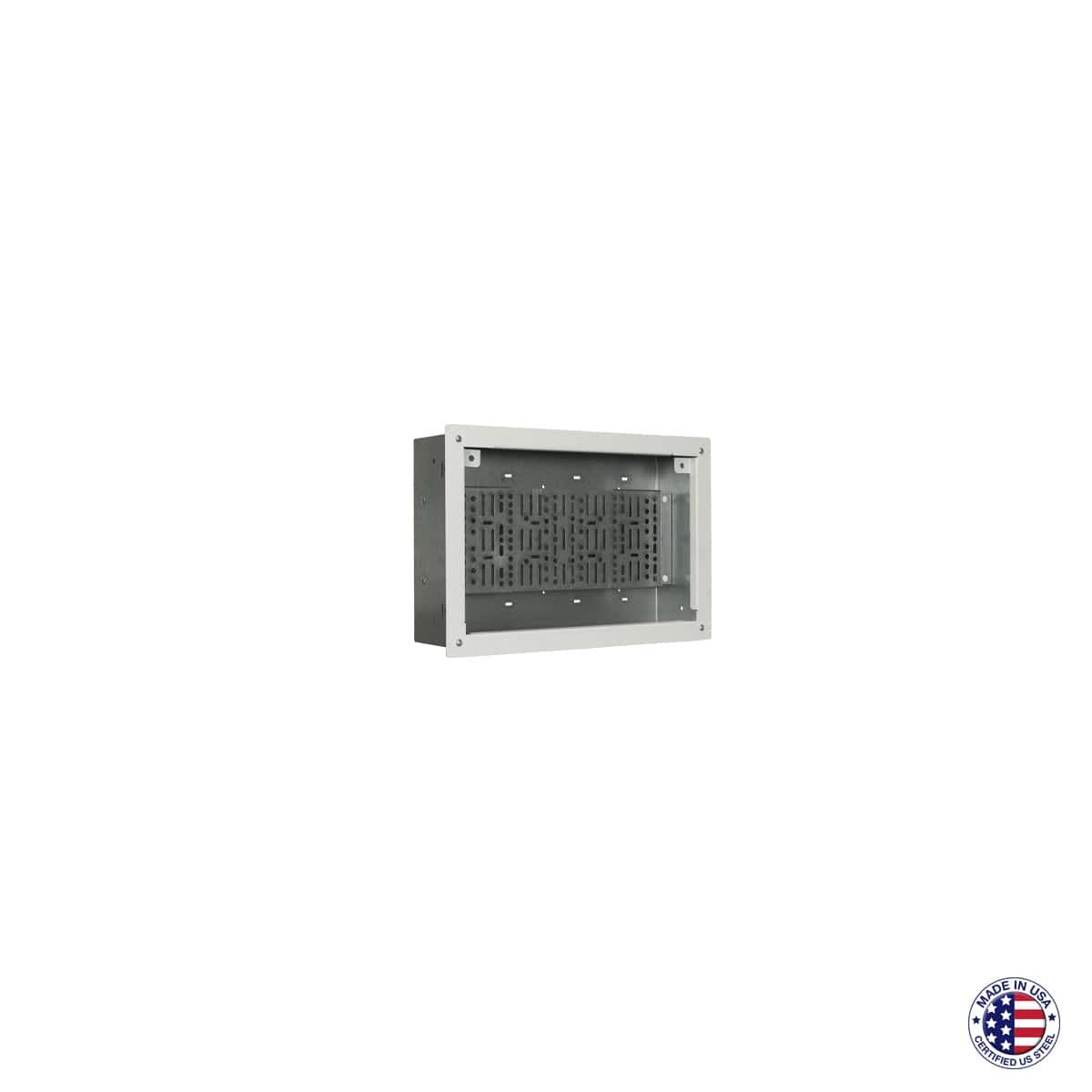

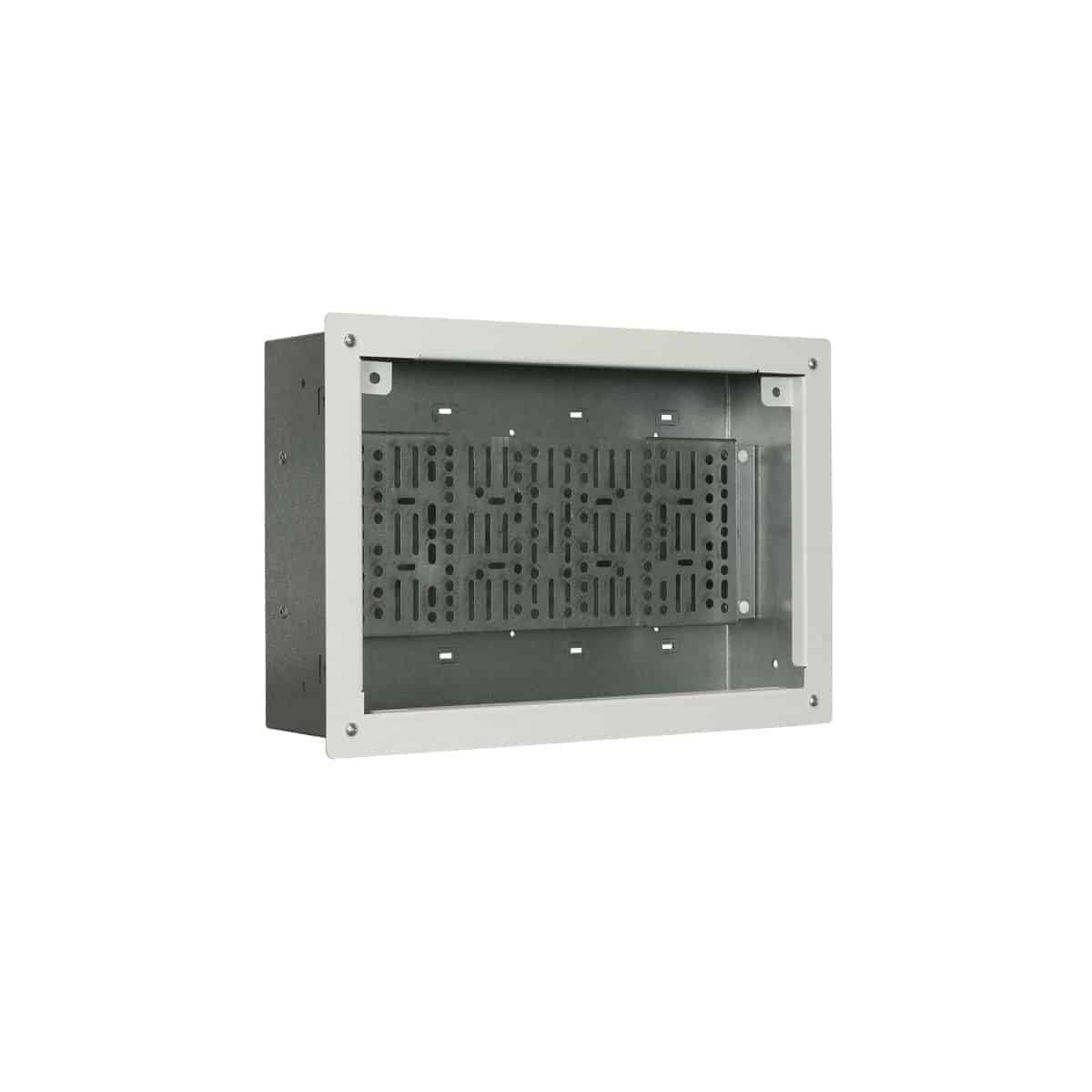

The in-wall box shall be Lowell model IWB-914, which shall feature a galvanized steel box with white powder-coated trim plate. Overall dimensions, including trim plate, shall be 10″H x 15″W x 3.8″D. The box shall mount between 16″ stud centers. It shall feature a removable mounting panel for devices, top and bottom knockouts for cables and 1-gang electrical boxes, and a grounding stud. The unit shall be manufactured in the USA using USA-certified steel. It shall be Trade Agreement Act (TAA) compliant and Buy American Act (BAA) compliant.
