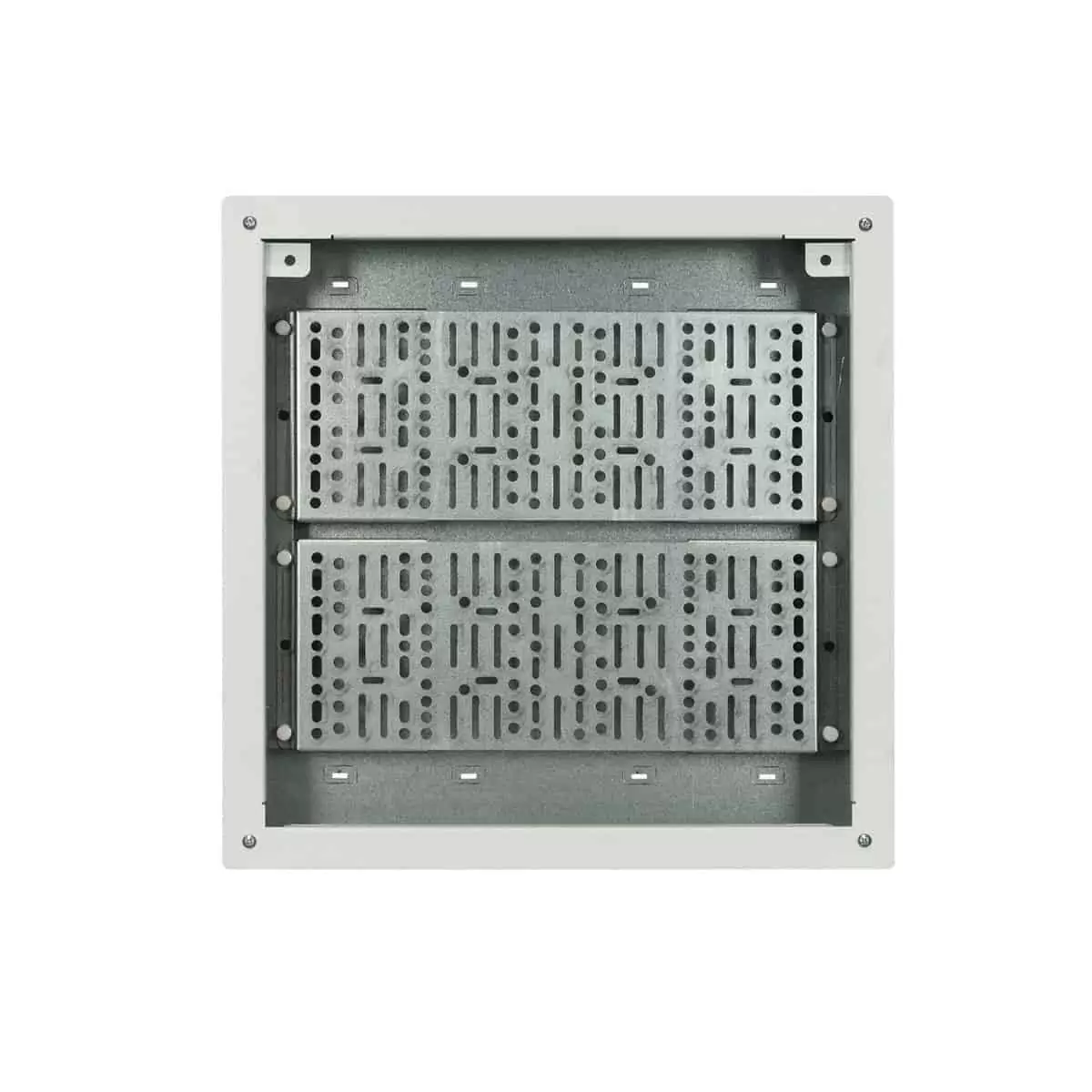

- Galvanized steel box
- Steel trim plate with white finish

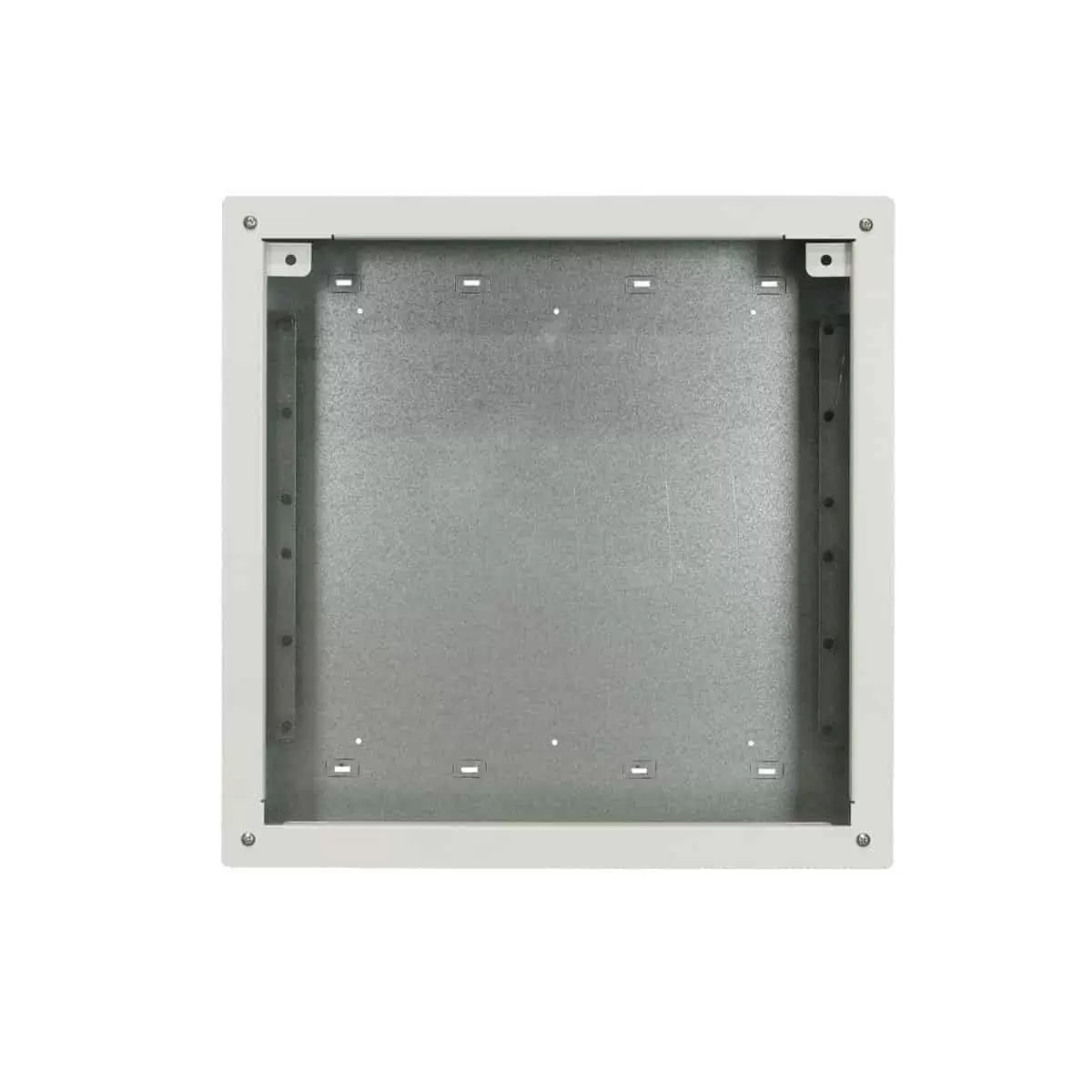

- Two elevated panels can be moved, removed, or reversed to mount upside down
- Knockouts in top and base
- Rear anchors for cable tie-off
- Box mounts between 16″ wall studs in a 4″D wall
- Grounding stud in base
- Height (without trim plate): 14.25 in.
- Width (without trim plate): 14.25 in.
- Depth (usable): 3.6 in.
- Load Capacity: 15 lbs.
- TAA compliant
- BAA compliant
- USA-certified steel

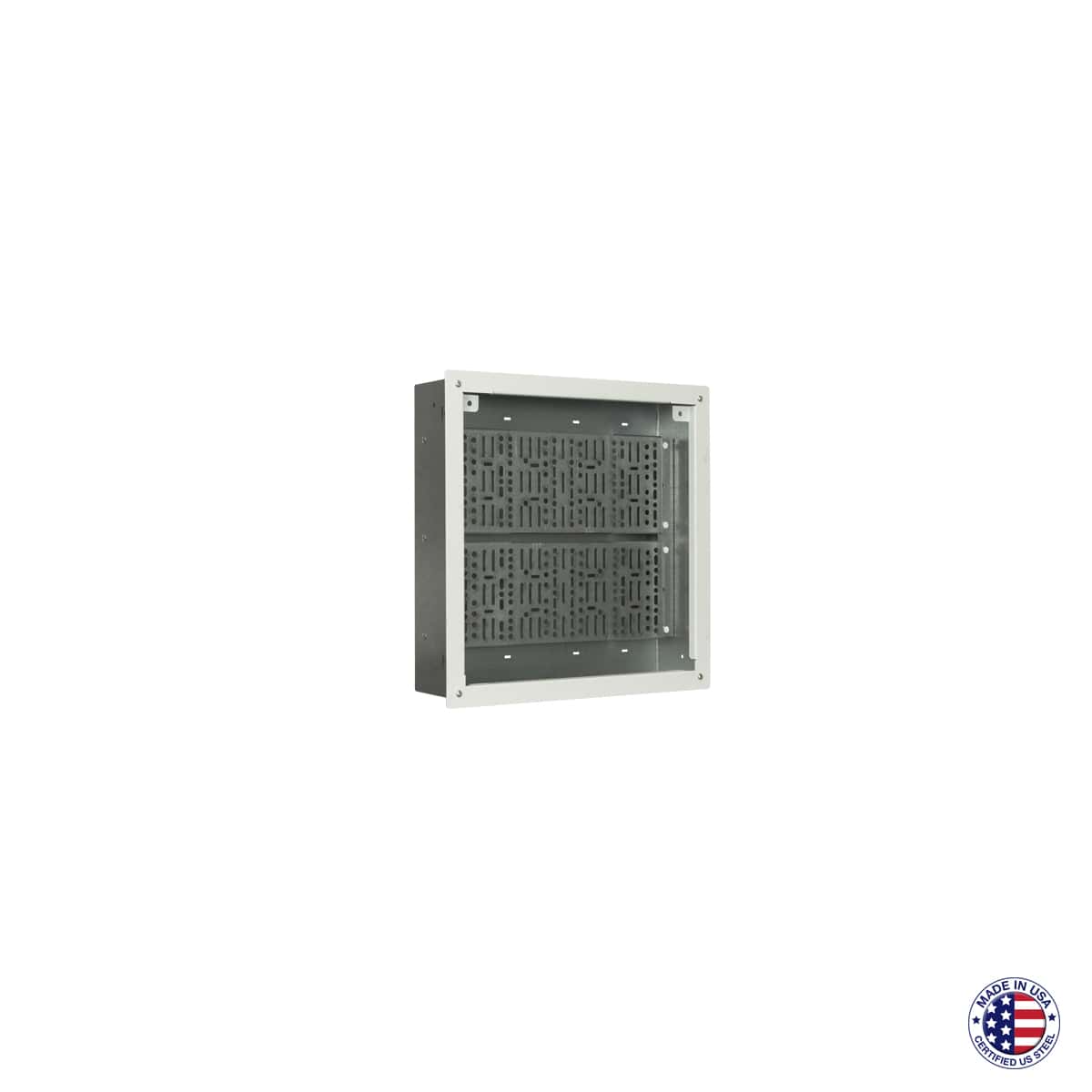

- Made in USA

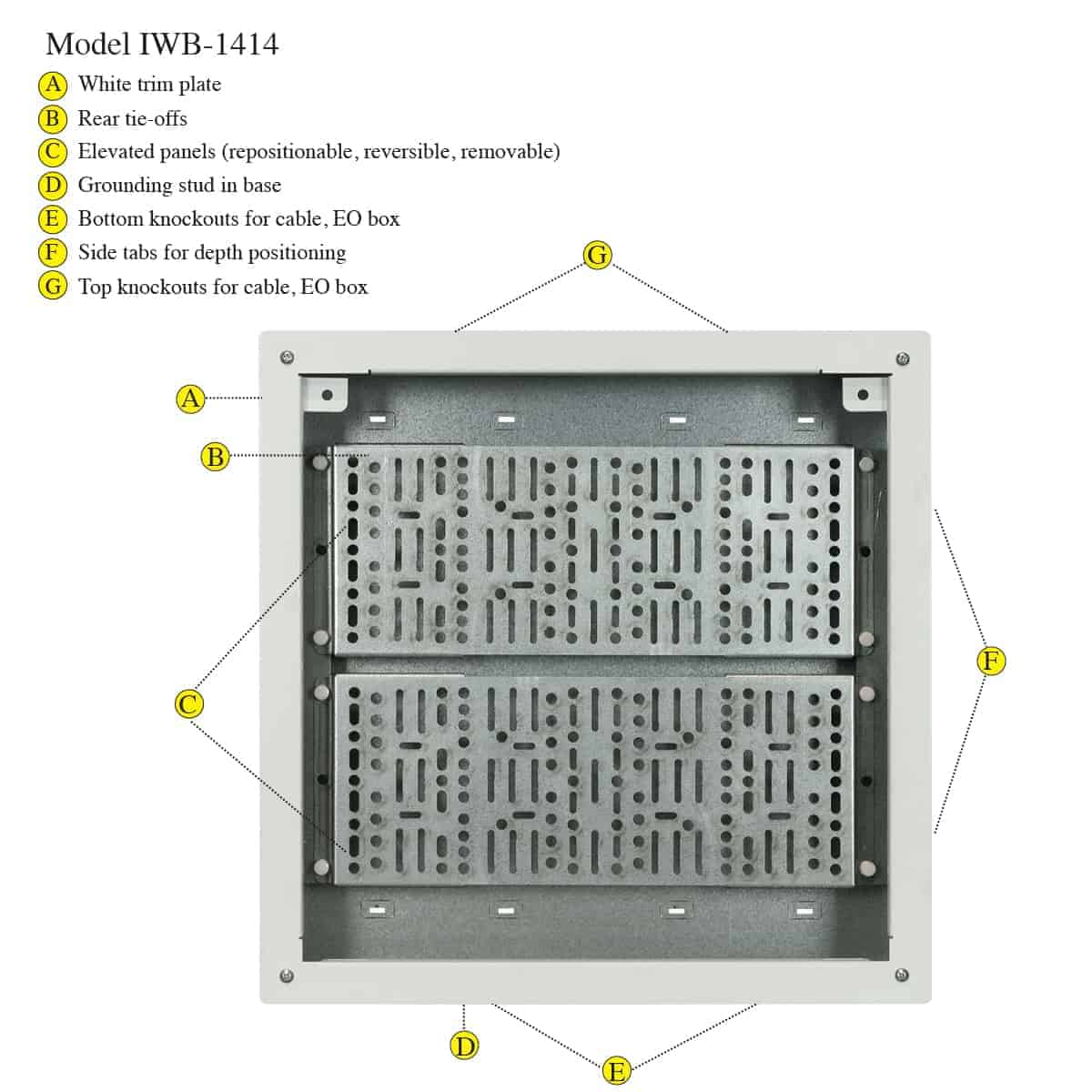

The in-wall box shall be Lowell model IWB-1414, which shall feature a galvanized steel box with white trim plate. Overall dimensions, including trim plate, shall be 15″H x 15″W x 3.8″D. The box shall mount between 16″ stud centers. It shall feature two removable mounting panels for devices, top and bottom knockouts for cables and 1-gang electrical boxes, and a grounding stud. The box shall be manufactured in the USA using USA-certified steel with a trim plate featuring a white powder-coat finish. It shall be Trade Agreement Act (TAA) compliant and Buy American Act (BAA) compliant.
Note: Mounting a power bracket in this box will require removal of one elevated panel.
