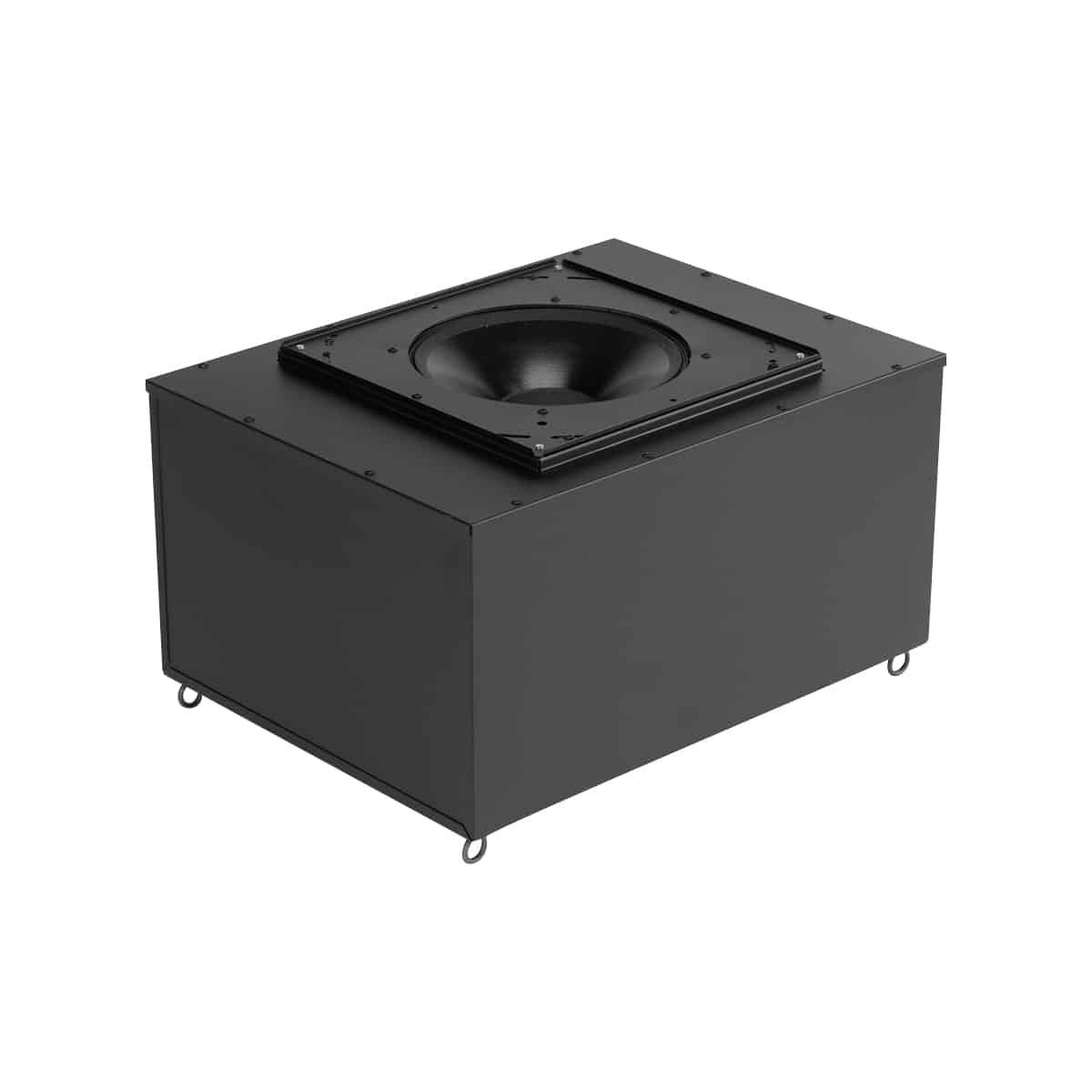

- Driver 12Q250: 12 in. (8 ohm) 250W driver features a robust motor structure with 77 oz. magnet and 4 inch edge-wound aluminum voice coil. Driver is protected by a steel plate during shipping–remove it to mount the grille.
- AudioVision™ Transformer TLS-10070: 70V 100W transformer for superior music fidelity in 70V distributed applications. The 20/20 AudioVisionTM transformer offers true 20Hz-20kHz performance. Screwdriver-adjustable tap selector switch behind grille.

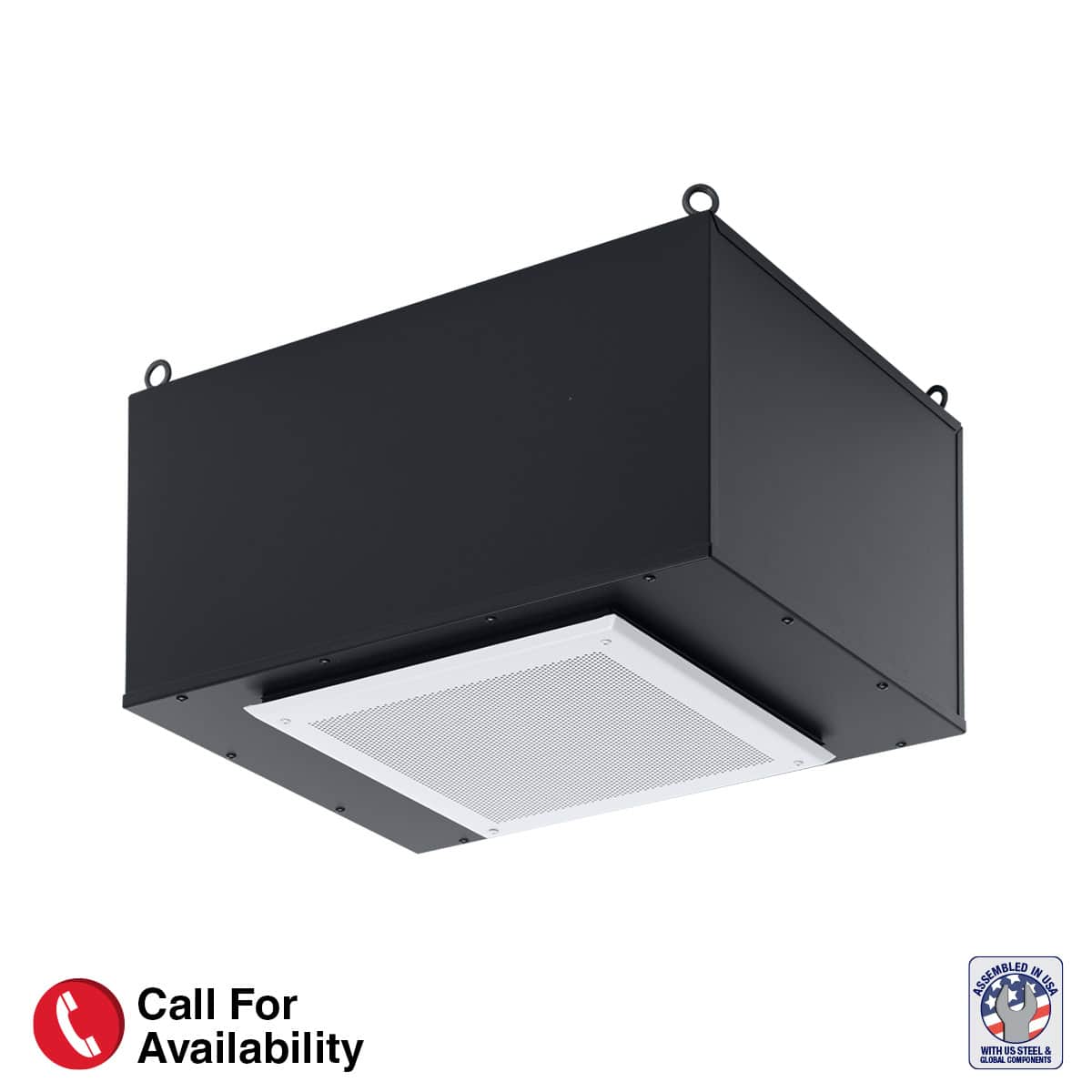

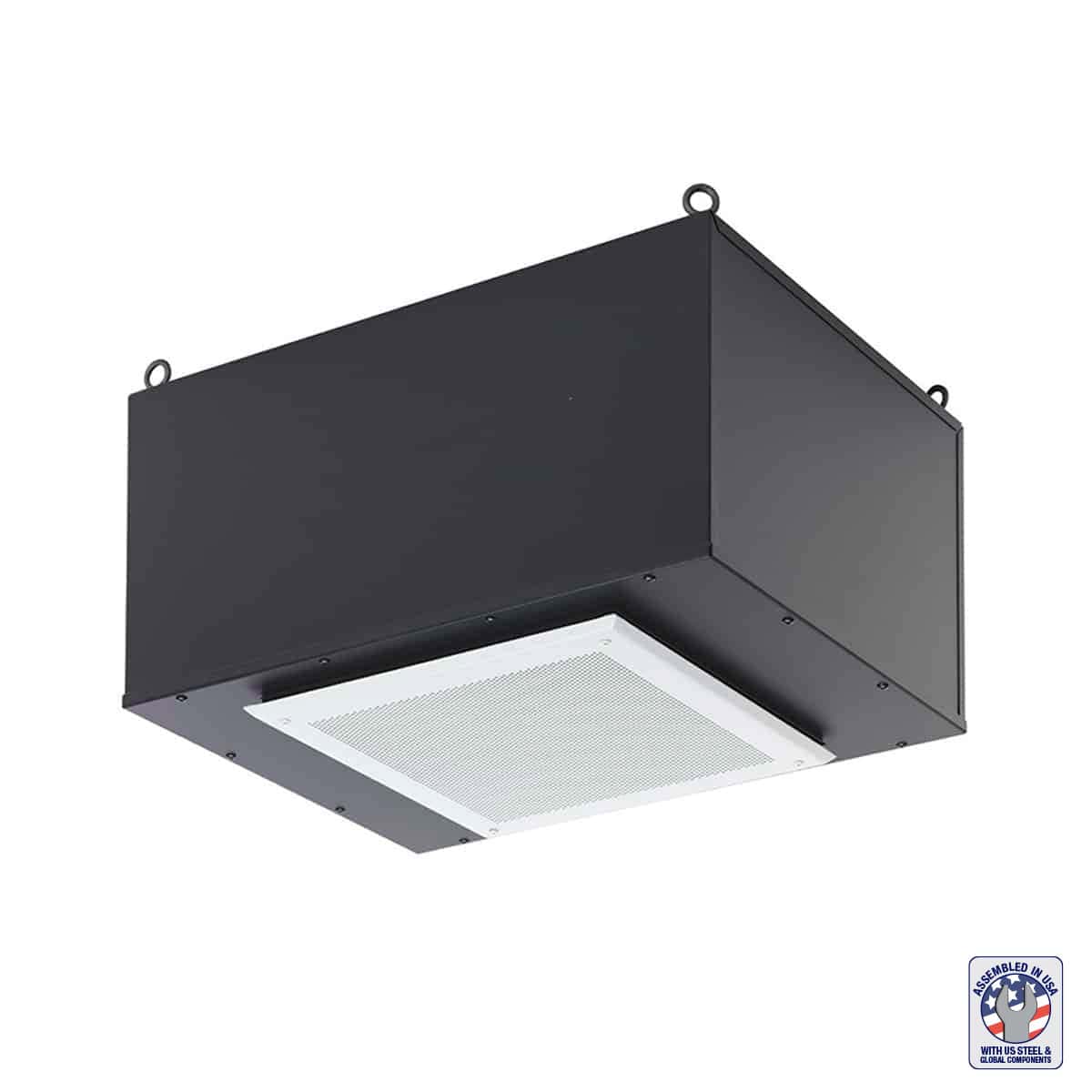

- Grille: Square perforated steel grille with white powder epoxy finish.

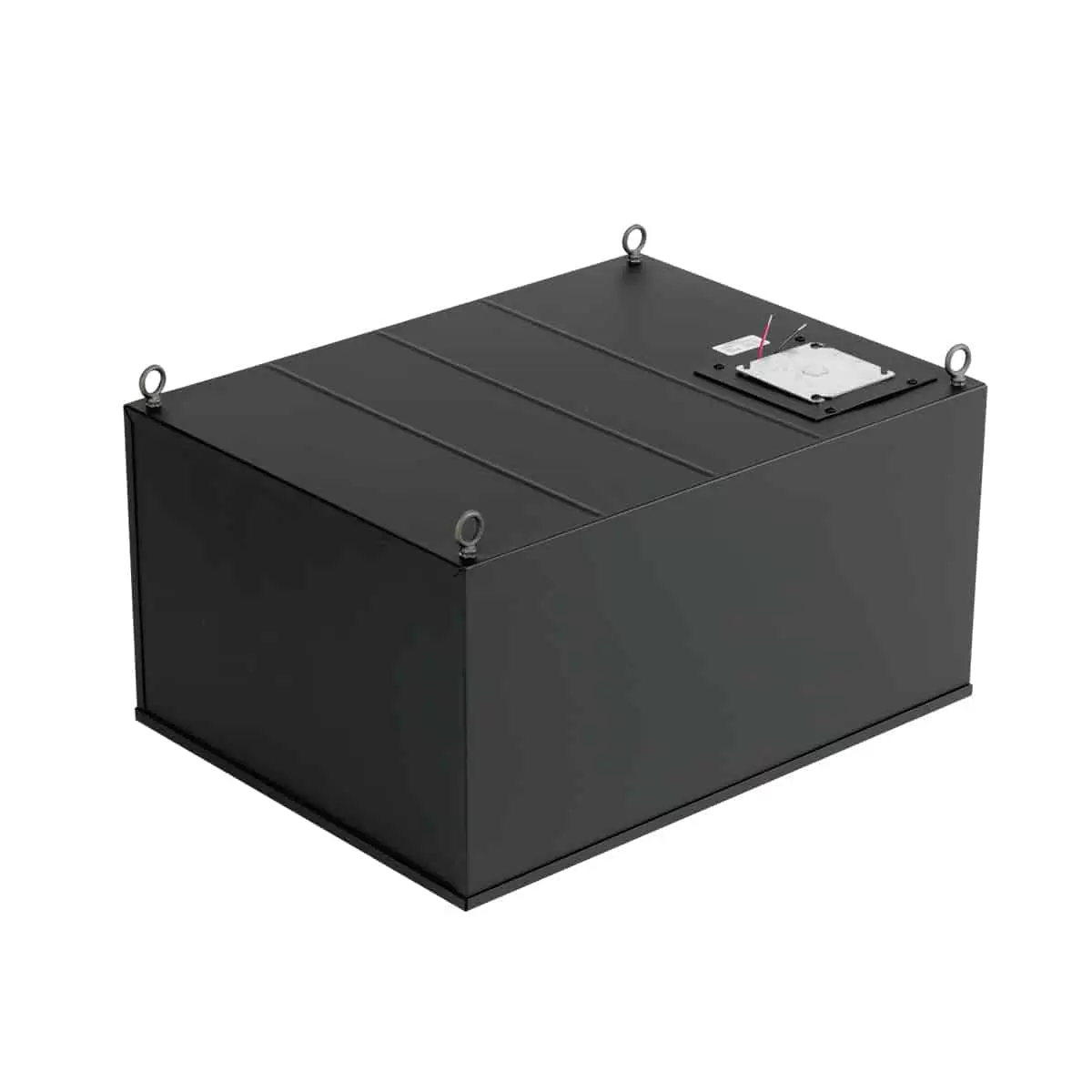

- Enclosure: 3 cu.ft. precision-formed steel enclosure with acoustic lining and forged 1/4 in.–20 eyebolts screwed into mounting nuts for secure suspended installation (using flyware by others). Black powder epoxy finish.
- Certified U.S. steel grille and enclosure
- Made in U.S.A. with global components
The speaker for suspended installation shall be Lowell iMount® Model IM12Q-TS100-3SW which shall feature a 12 in. (8 ohm) 250W driver mounted in a black steel acoustic enclosure (23.94 in. x 18.19 in. x 12 in., 3 cu.ft. volume) with anti-vibration ribs, sound-stop board, 1-1/2 inch thick acoustic lining, and forged 1/4 inch- 20 eyebolts screwed into mounting nuts for suspended installation (using flyware by others). It shall include a perforated steel architectural grille with white finish. System frequency response shall be 73Hz–16kHz (±6dB) and 45Hz–20kHZ (±9.5dB) with average sensitivity of 100.1dB @1W/1M. Dispersion shall be 80 degrees conical @2kHz octave measured 6dB down. The system shall have a driver with 77oz. magnet and 4 inch edge-wound aluminum voice coil; and a 5.3 in. mylar dome tweeter with 42oz. magnet and 1.75 in. voice coil. The speaker shall include a wired 70V 100W transformer with screwdriver-adjustable tap selections accessible behind the grille.
