- 16-gauge steel with 11-gauge rails tapped 10-32
- Hinged design allows 180 degree swing-out for access to cables
- Mounting holes on standard 16 in. stud centers and 19 in. EIA spacing
- Mount to wall or 19 in. open frame rack (2 or 4 post)
- One-pair mounting rails tapped 10-32
- Black semi-gloss powder epoxy finish
- Screws, velcro straps
- Rack Space: 6U
- Height: 10.5 in.
- Width: 19.17 in.
- Depth: 6 in.

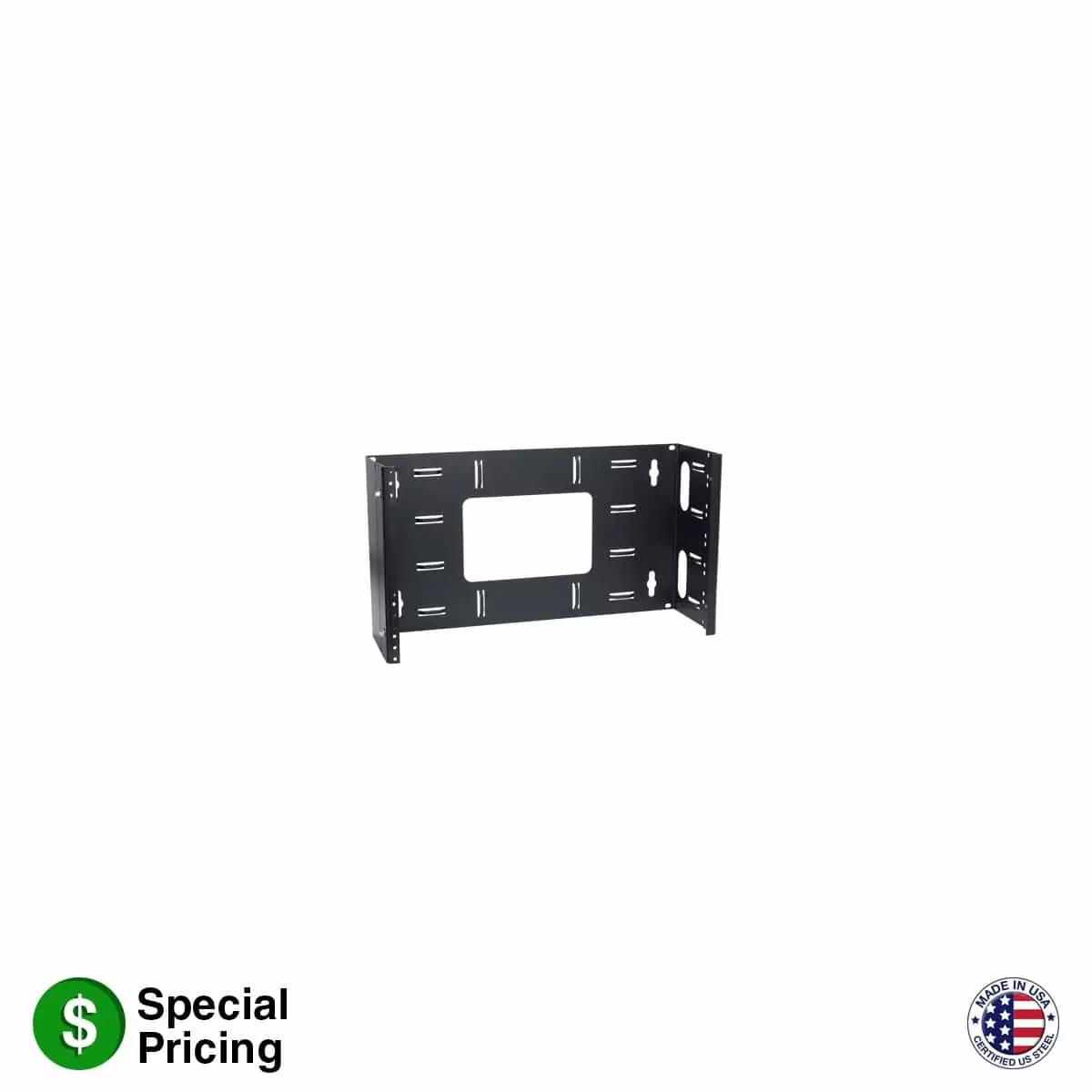

The hinged utility wall-mount bracket for shallow 19 in. EIA compliant equipment shall be Lowell Model No. HUB-6. It shall be 16-gauge U.S. steel construction with 11-gauge rails tapped 10-32 on EIA spacing. Finish shall be black semi-gloss. The unit shall measure 19.17 in. x 6 in. x 10.5 in. (6U) and feature holes on standard 16 in. centers and EIA spacing to enable mounting to a wall or to a 19 in. open frame rack. It shall have a hinged design to allow it to swing left or right 180 degrees depending on how it’s mounted. The unit shall include built-in cable tie-down lances, access holes for cable management, rack screws and velcro straps.
