FS SERIES | 18"W x 20"D Hinged Wall Shelf (ships flat)

Name: FS SERIES | 18"W x 20"D Hinged Wall Shelf (ships flat)
SKU: FS18-20
Availability: InStock

FS18-20

$142.20 MSRP

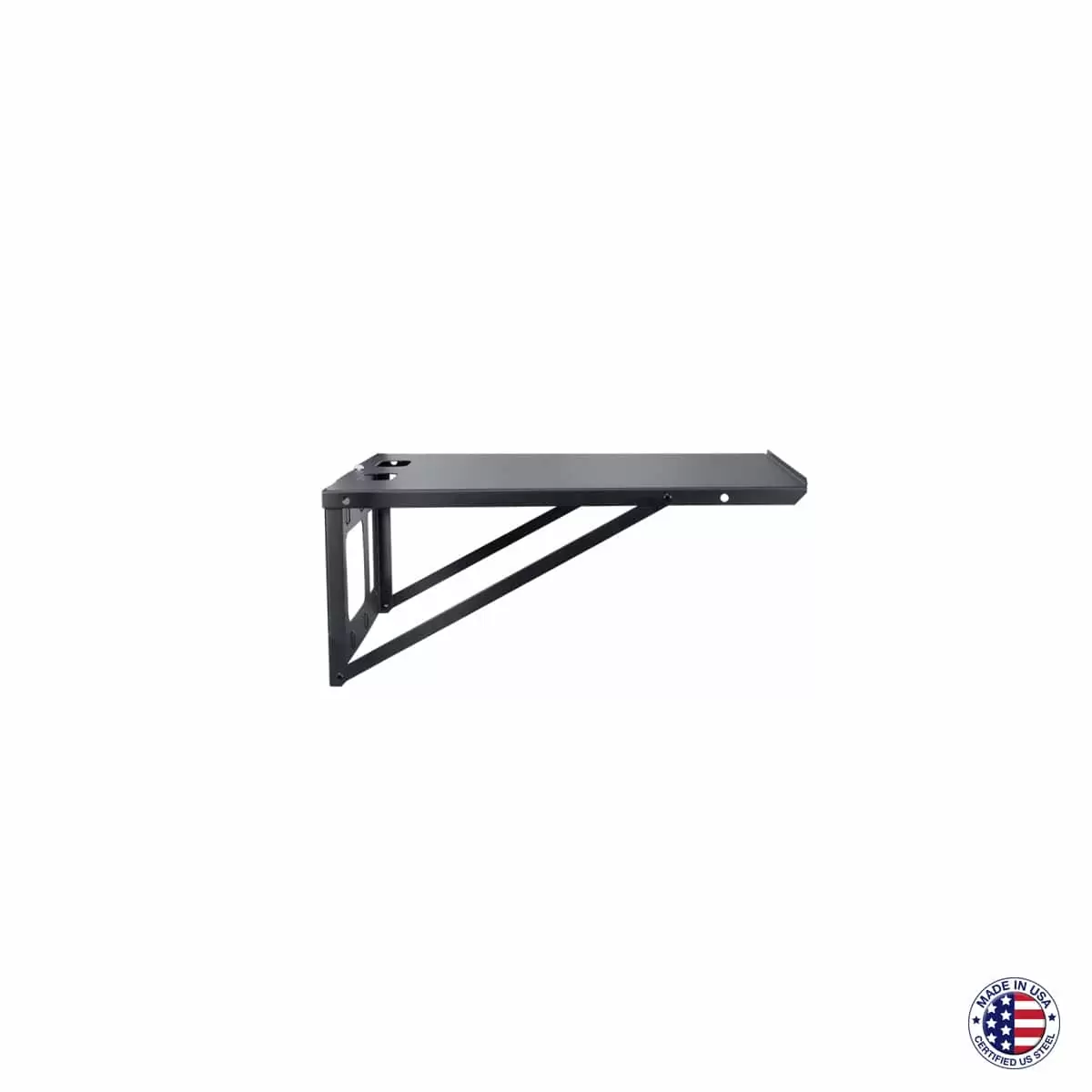

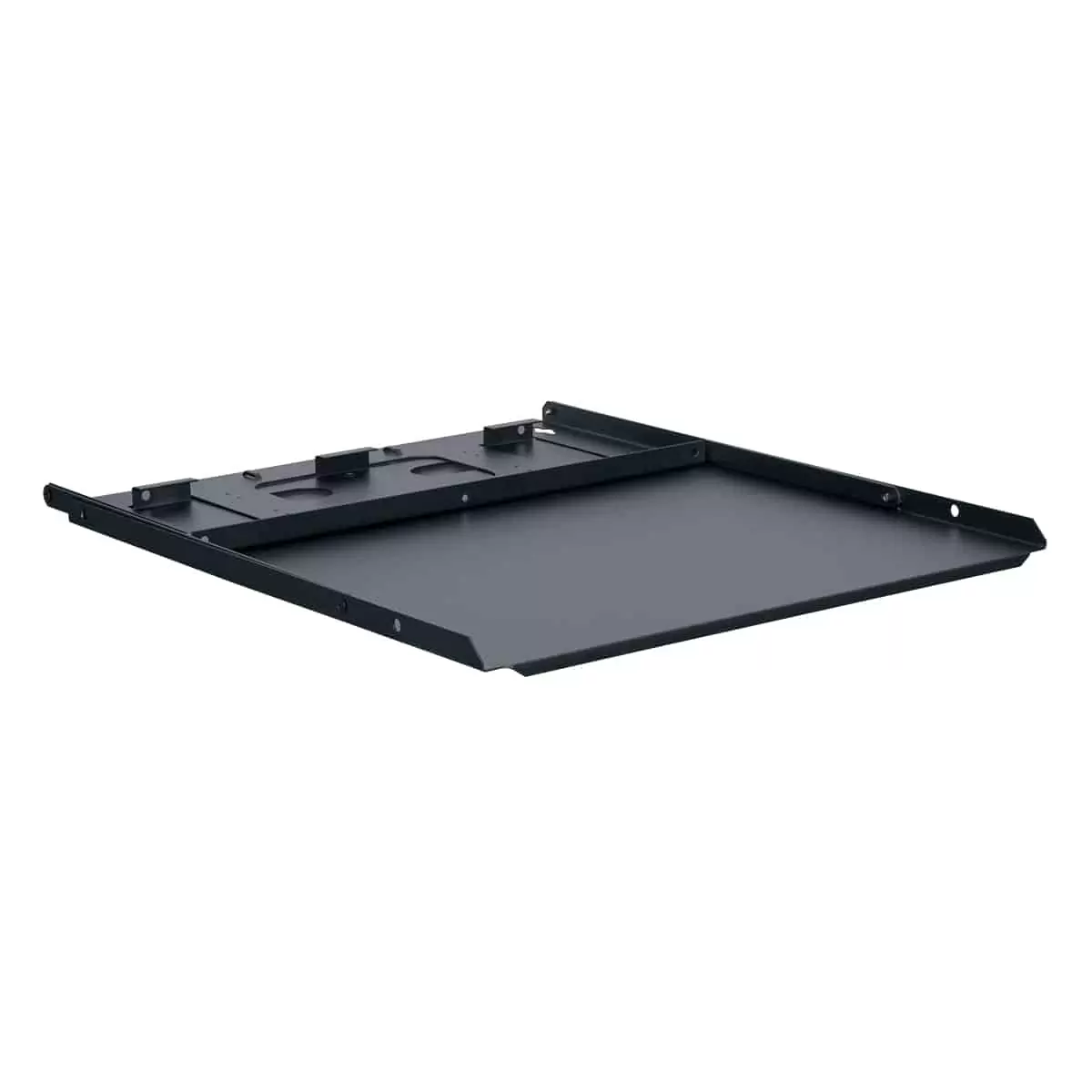

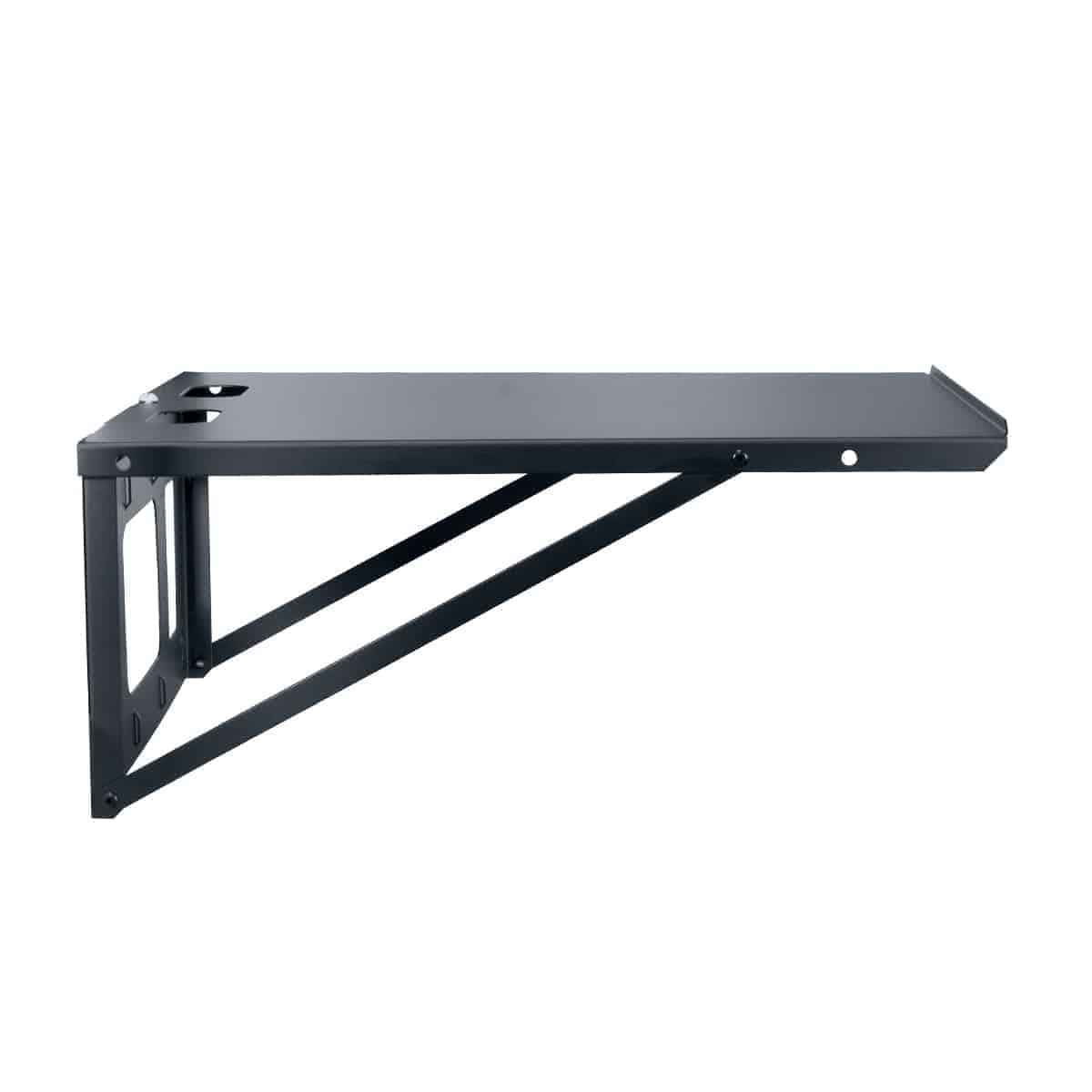

This steel wall mount shelf ships flat for efficient warehousing. It unfolds for quick installation and has flanges that insert into panel cutouts. The shelf mounts with the equipment platform in either position (up or down). Keyhole mounting slots on 16-inch centers. USA-certified steel with smooth-black powder-coat finish.

Add to Favorites

Compare

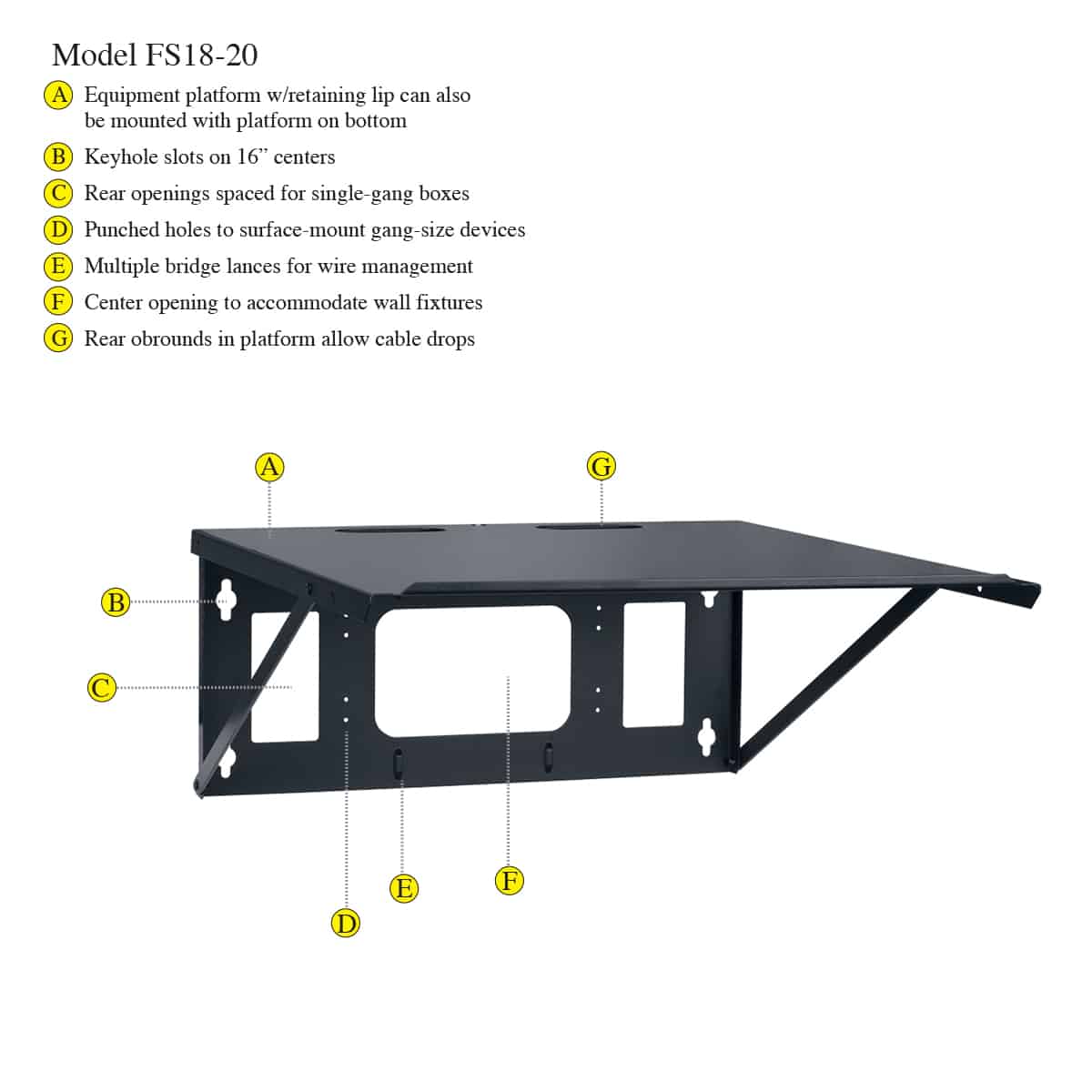

16-gauge steel
Keyhole mounting slots on 16 in. stud centers
Install with equipment platform on top or bottom.

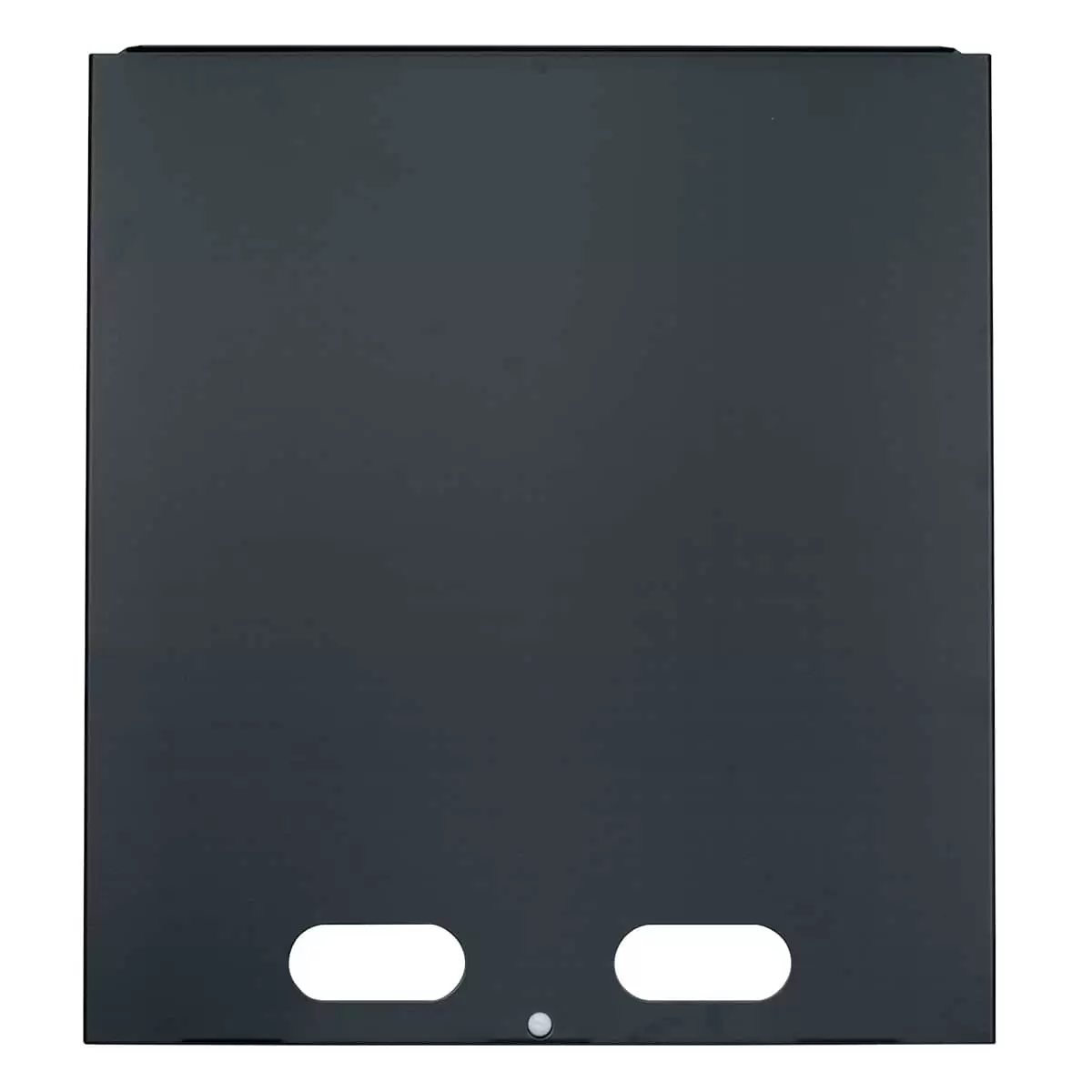

Two oblong cutouts (2.5 in. x 1.25 in.) for cable drop-down

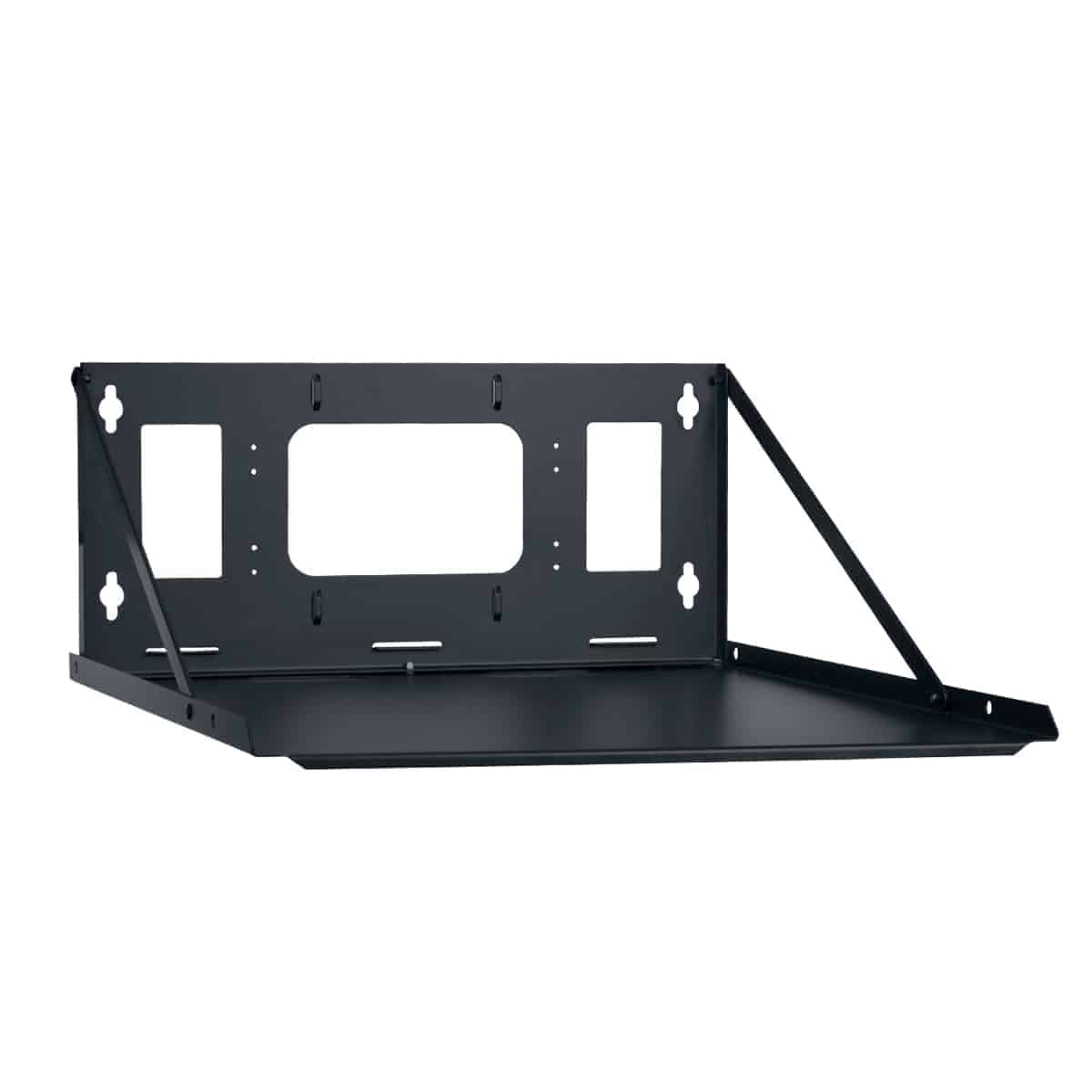

Large center cutout in back for placement over existing wall fixtures. Other openings in back are spaced for single gang, stud-mounted conduit boxes.
Pre-punched mounting holes in back for easy installation of surface-mounted gang-size accessories
Multiple bridge lances for cable management
Front retaining lip, flanged for strength
Smooth-black powder-coat finish

Height: 8.24 in.
Width: 18.22 in.
Depth: 20 in.
Load Capacity: 100 lbs.

Spec Sheet: 2513-FS-Series

TAA compliant
BAA compliant
USA-certified steel
Made in USA

The wall-mount shelf shall be Lowell Model FS18-20 which shall fold out to measure 18.22″W x 20″D x 8.24″H in the service position. It shall support up to 100 lbs. when properly mounted (hardware by others) using keyhole mounting slots on 16″ centers. The rear shall have a large center opening to accommodate an existing wall fixture or wires and side openings spaced to accommodate single-gang stud-mounted conduit boxes. It shall also be pre-punched for mounting accessories or lacing cable. The equipment platform shall have a retaining lip and two oblong cutouts (2.5″ x 1.25″) for cable drop-down. The unit shall be manufactured in the USA using USA-certified steel and have a smooth-black powder-coat finish. It shall be Trade Agreement Act (TAA) compliant and Buy American Act (BAA) compliant.
