Fan Panel w/Thermostat Cord for Half Rack | FDC4-1HRT

Name: Fan Panel w/Thermostat Cord for Half Rack | FDC4-1HRT
SKU: FDC41HRT
Availability: InStock

Special Pricing - While Supplies Last

$233.60 MSRP

Call 800-325-9660 for Availability
Recommended Alternative: FDC4-HR

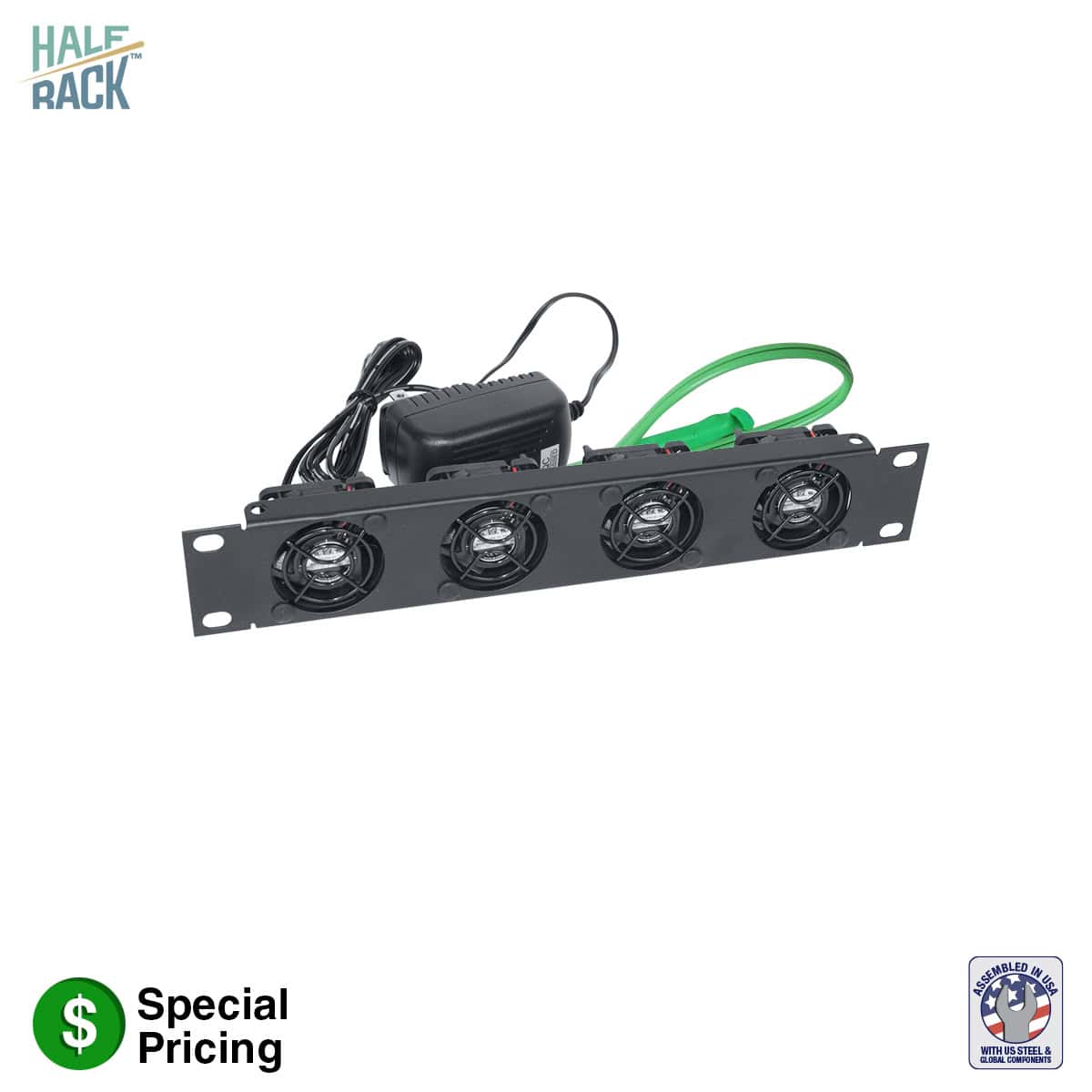

Rackmount fan panel with thermostat cord is for use with Lowell LHFR Series half-width racks. Cord includes a built-in thermostat to automatically control fan operation according to temperature.

Add to Favorites

Compare

Material: Steel with black semi-gloss powder epoxy finish
Panel Size: 10.375 in. x 1.625 in. x 1U
Four fans with guards
Fan Diameter: 1.57 in.
Total Airflow Rating: 36cfm
Total Noise Rating: 38dB
Power supply with 6 ft. cord
Thermostat probe to control fan operation

Spec Sheet: 2305-FDC41HRT

Certified U.S. Steel
Assembled in U.S.A. with global components

The fan panel for a half rack shall be Lowell Model FDC4-1HRT. Housing shall measure 1.75 (1U) x 10.375 x 1.625 inches [45 x 264 x 41mm] and have a black powder epoxy finish. The panel shall include four fans, each with a 1.57 in. [40mm] diameter. Total airflow rating is 36cfm; total noise rating is 38dB. The unit shall include a UL Listed power supply with four plug adaptors—NEMA 1-15 for North America, Schuko CEE 7/16 for central Europe, BS1362 for the U.K. and AS3112 for Australia/New Zealand. It shall require 9.6 watts of power.

The fan panel shall also include an optional thermostat probe to control fan operation, which shall automatically activate fans when ambient temperature reaches 86˚F [30˚C] and deactivate them when temperature reaches 72˚F [22.2˚C].
