LER-4427-BAV - DISCONTINUED

Name: LER-4427-BAV - DISCONTINUED
SKU: LER-4427-BAV
Availability: InStock

SEE ALTERNATIVE: LER-4427

$3,677.20 MSRP

BUNDLE DISCONTINUED | Out of Stock

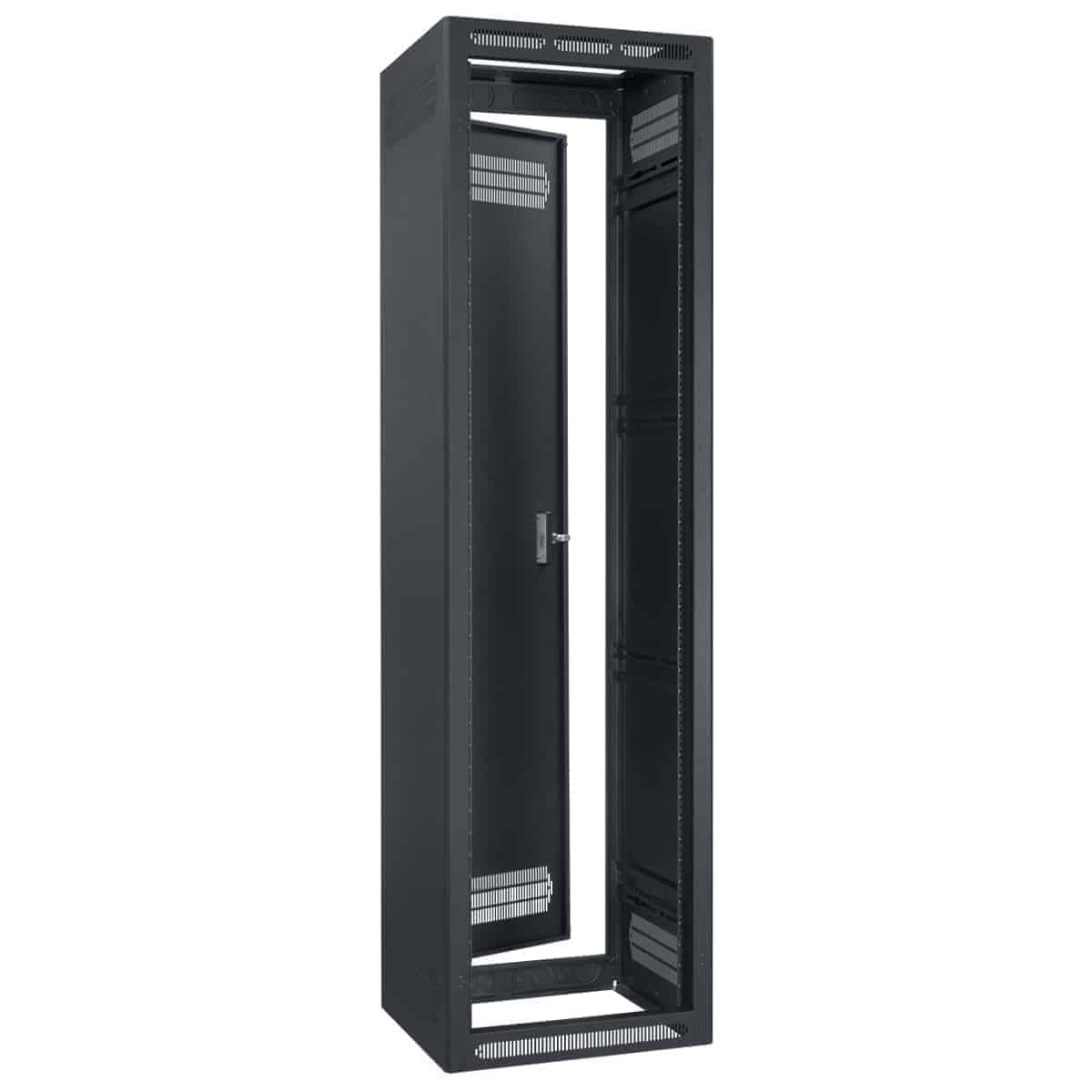

LER-4427 rack is available. Order accessories separately.

The 19 inch standalone AV rack is fully welded steel reinforced at load-bearing junctions for robust support. It features welded side panels with upper and lower vents for passive ventilation. The rack includes adjustable mounting rails that can be repositioned deeper into the rack as needed to accommodate equipment controls. Beveled corners. Black texture powder coat finish. This model includes an AV accessory bundle with front and rear doors.

Add to Favorites

Compare

Rack:

Configurable top with 12U opening includes riveted 10-32 threaded rails for 19″ panels
Welded sides with vents
Recessed rear door with vents and key lock
44U adjustable front rails tapped 10-32
Multiple lacing points, laser-cut knockout panels
Pilot Point screws with captive washers
Grounding stud
Beveled corners
Black textured powder coat finish

Accessory Bundle:

Solid surface-mount front door with key lock (LFD-44)
1 pair 44U rear rails tapped 10-32 (RRD-44)
One 70″L power strip with 24 (15A/20A) outlets, surge suppression, 12′ cord and NEMA 5-20P plug (ACS-2024)
7U fan panel with four whisper fans (FW4-7)
Straight bars (4) and 4″ offset bars (2) for cable management (CMBS Series)
44U vertical cable manager (CMV3-44)
Heavy-duty leg levelers (LL)
Magnetic vent blocker kit (MVB27)
Velcro-style cable wraps (VCW-12)
Two extra bags of rack screws

Rack Space: 44U
Height: 83.125 in.
Width: 23.06 in.
Depth: 27.00 in. (24.34 usable)
Load Capacity: 3150 lbs.

Rack Spec Sheet: LER / LSER Series
Accessory Bundle Spec: 1689-LER4427BAV
CSI 3-part specification sheet (rack only): LER-3P
CAD drawings: LER-4427
Revit Models: LER Series
Install: 20055-FloorRack

RACK:

The EIA/TIA compliant 19″ floor rack shall be Lowell model LER-4427-BAV with overall dimensions of 83.125″H x 27.00″D x 23.06″W; usable height of 44 rack units, and usable depth of 24.34″. Rack construction shall be fully welded certified U.S. steel with 16-gauge frame and 14-gauge bottom reinforced at load-bearing junctions, all with black wrinkle powder epoxy finish. Welded sides shall feature vents at top and bottom. The rack shall include a recessed rear door with vents and key lock, laser-cut knockout panels above and below door with 1/2″–3/4″ and 1″–1-1/2″ EKO for conduit, and 1/2″ KO for wireless antennae above door. The front shall feature vents along top and bottom. The top shall feature a 12U opening with riveted 10-32 threaded rails on 19″ E.I.A. spacing. Rack bottom shall have an opening measuring 22.88″ x 19.94″ and include a grounding stud. Rack shall include 1 pair of (44U) adjustable 11-gauge steel rails tapped 10-32 on 19″ E.I.A. spacing with black textured powder coat finish and numbered rack unit increments. The UL 2416 Listed rack shall be manufactured in the U.S.A. with a UL Listed load capacity of 3150 lbs.

The rack shall include a bundle of accessories that shall consist of a solid surface-mount front door with key lock (LFD-44), a pair of 44U rear rails (RRD-44), one 70″L power strip with (24) 15A/20A outlets with surge suppression and 12′ cord (ACS-2024), a 7U fan panel with four whisper fans (FW4-7), 4 straight bars and 2 offset bars from CMBS cable management series, a 44U vertical cable management bar (CMV3-44), set of leg levelers (LL), a magnetic vent blocker kit (MVB27), a pack of velcro-style cable wraps (VCW-12), and two extra bags of screws.
