LDDF44 - DISCONTINUED

Name: LDDF44 - DISCONTINUED
SKU: LDDF44
Availability: InStock

Out of Stock

$291.68 MSRP

DISCONTINUED | Out of Stock

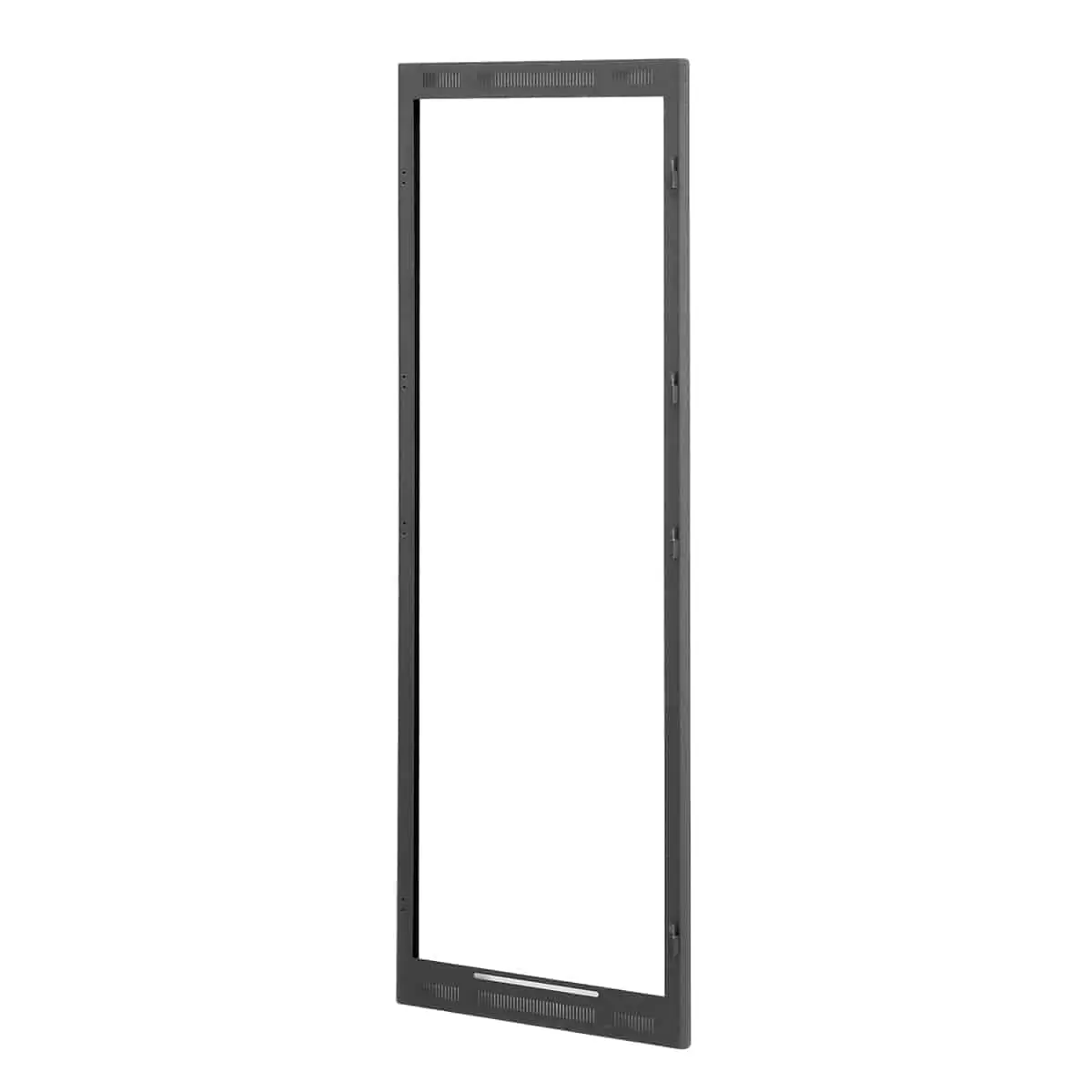

The dual-door frame is made to mount two short doors to separate and secure equipment within a single rack. You can also choose to mount one short door, to secure some electronics, and leave other electronics readily accessible. The frame is made for 44U racks in the LER, LGR, LPR, LSER, LSGR, and LWR series. Order doors separately.

Add to Favorites

Compare

Frame mounts without using panel mounting space.
Included security bracket mounts to top of lower door projecting into rack within 1/4 inch of mounting rails thus securing contents of the lower section when the top door is open.
Security bracket is factory-installed when the LDDF frame is ordered with the rack, but it can also be field-installed with two screws
Equipment with protruding knobs may need to be re-positioned to accommodate the security bracket.
Order door(s) separately

Spec Sheet: 1025-LDDF
Frame Installation (optional alternate key lock): 18352-KeyAssm

The rack shall be equipped with dual-door frame model LFFD-44, which will accept 1 or 2 short surface-mount front doors to separate and/or secure access to mounted equipment. The surface-mount steel frame shall extend 1″ from the rack. It shall attach to factory-installed threaded inserts on the rack, without drilling. Inserts shall be located on right and left to accommodate mounting on either side. The dual-door frame shall be steel with black powder epoxy paint. The doors and an alternate key lock, if needed, shall be ordered separately.

Front door: LFD Series (solid) | LFD–P Series (plexiglass) | LFD—FV Series (full vent)
Key and lock assembly with alternate lock : LLKRD
