Baffle for 8 inch Speaker

Name: Baffle for 8 inch Speaker
SKU: DSQ-8
Availability: InStock

DSQ-8

$80.00 MSRP

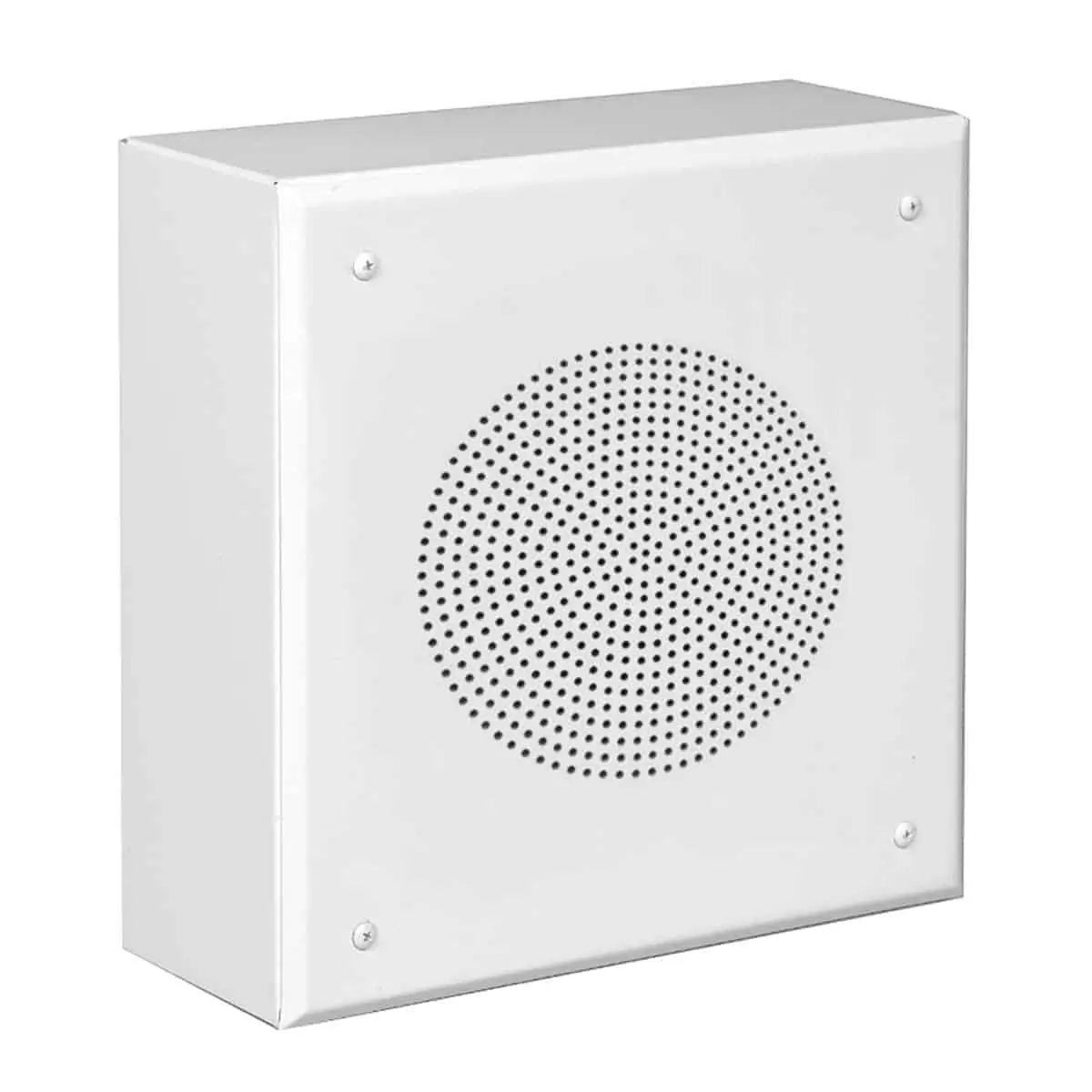

Speaker baffle model DSQ-8 with beveled edges is designed to surface-mount an 8-inch driver in wall or ceiling applications. The baffle features knockouts for 500 Series wiremold on top and bottom, and a universal mounting hole pattern in the rear. Steel with white powder epoxy finish.

Priced each. Order in multiples of 4.

Add to Favorites

Compare

Material: Steel with beveled edge
Grille: Steel
Finish: White
Size: 11.5 in.H x 11.5 in.W x 4 in.D
Volume: 536 cu.in.
Mounting Aids: Knockouts for 500 Series wiremold on top/bottom, and universal mounting hole pattern in rear

Spec Sheet: 1300-DSQ8

Certified U.S. steel
Made in Missouri, U.S.A.

The steel wall baffle for indoor surface-mount applications shall be Lowell Model No. DSQ-8, which shall measure 11.5″H x 11.5″W x 4″D. The backbox shall feature wire mold knockouts on top/bottom and universal mounting hole pattern in rear. The steel grille shall feature a circular perforation pattern. Both pieces shall have a white powder epoxy finish.
