8 inch Dual Cone Speaker with 25/70V Xfmr, Grille, Enclosure

Name: 8 inch Dual Cone Speaker with 25/70V Xfmr, Grille, Enclosure
SKU: DSL-805-72
Availability: InStock

DSL-805-72

$121.20 MSRP

Model DSL-805-72 is an 8-inch 12W dual cone speaker made for background music and paging. It's ideal for classrooms, offices, retail locations — just about anywhere an attractive surface-mount speaker is required. Includes an 8-inch dual cone driver with transformer, enclosure with sloped front and grille. Ships ready to install.

Priced each. Order in multiples of 4.

Add to Favorites

Compare

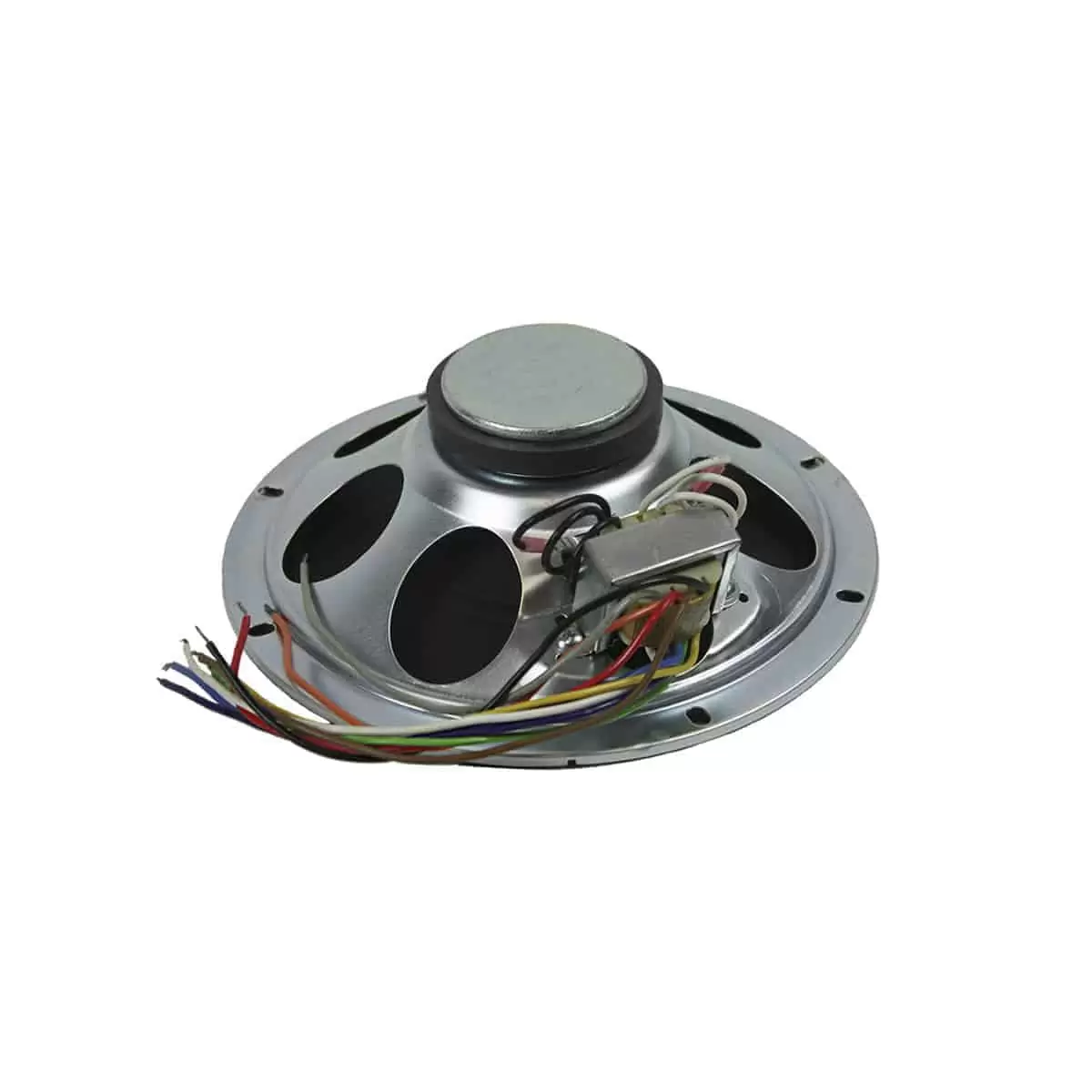

Driver (805A): 8 in. 12W dual cone driver with 5 oz. magnet
Transformer (TLM-572): 25V/70V dual voltage transformer. Taps at 0.25, 0.5, 1, 2, 5W.
Enclosure: Steel enclosure with sloped front. 11.3 in. x 11.5 in x 5.29 in. (3.05 in. at base). White.
Grille: Steel with beveled edge and circular hole pattern. White.
Mounting Aids: Universal mounting hole pattern will install to a 4 in. square, 4 in. octagon, 1- or 2-gang box (not included). Top/bottom knockouts for 500 Series wiremold.
System Specifications: Frequency Response 122Hz–7.4kHz (±6dB), 65Hz–20kHz (±12dB). Average Sensitivity 95.1dB (1W/1M). Dispersion 110 degrees conical.

Spec Sheet: 1254-DSL80572

Assembled in U.S.A. with U.S. steel and global components

The 12W surface-mount speaker assembly for indoor surface-mount applications shall be Lowell Model No. DSL-805-72. It shall include an 8 in. 12W dual cone driver with 5 oz. magnet, dual voltage 25V/70V transformer, white steel grille and backbox with sloped front. The backbox shall measure 11.3 in. x 11.5 in. x 5.29 in. It shall feature wiremold knockouts on top/bottom and universal mounting hole pattern on rear. The system shall have a frequency response of 122Hz–7.4kHz (±6dB), 65Hz–20kHz (±12dB). Average sensitivity shall be 95.1dB. The transformer shall be dual voltage (25V/70V) with taps at .25, .5, 1, 2, and 5W. The steel backbox and grille shall have a white powder epoxy finish.
