Baffle for 8 inch Speaker

Name: Baffle for 8 inch Speaker
SKU: DSL-8
Availability: InStock

DSL-8

$85.60 MSRP

Speaker baffle model DSL-8 with beveled edges and sloped front is made for use with an 8-inch driver. Steel with white powder epoxy finish baffle features knockouts for 500 Series wiremold on top and bottom, and has a universal mounting hole pattern in the rear.

Priced each. Order in multiples of 4.

Add to Favorites

Compare

Material: Steel with beveled edge and sloped front
Grille: Square with circular perforation pattern
Finish: White
Size: 11.3 in.H x 11.5 in.W x 5.29 in.D at top (3.05 in. at bottom)
Volume: 541.9 cu.in.

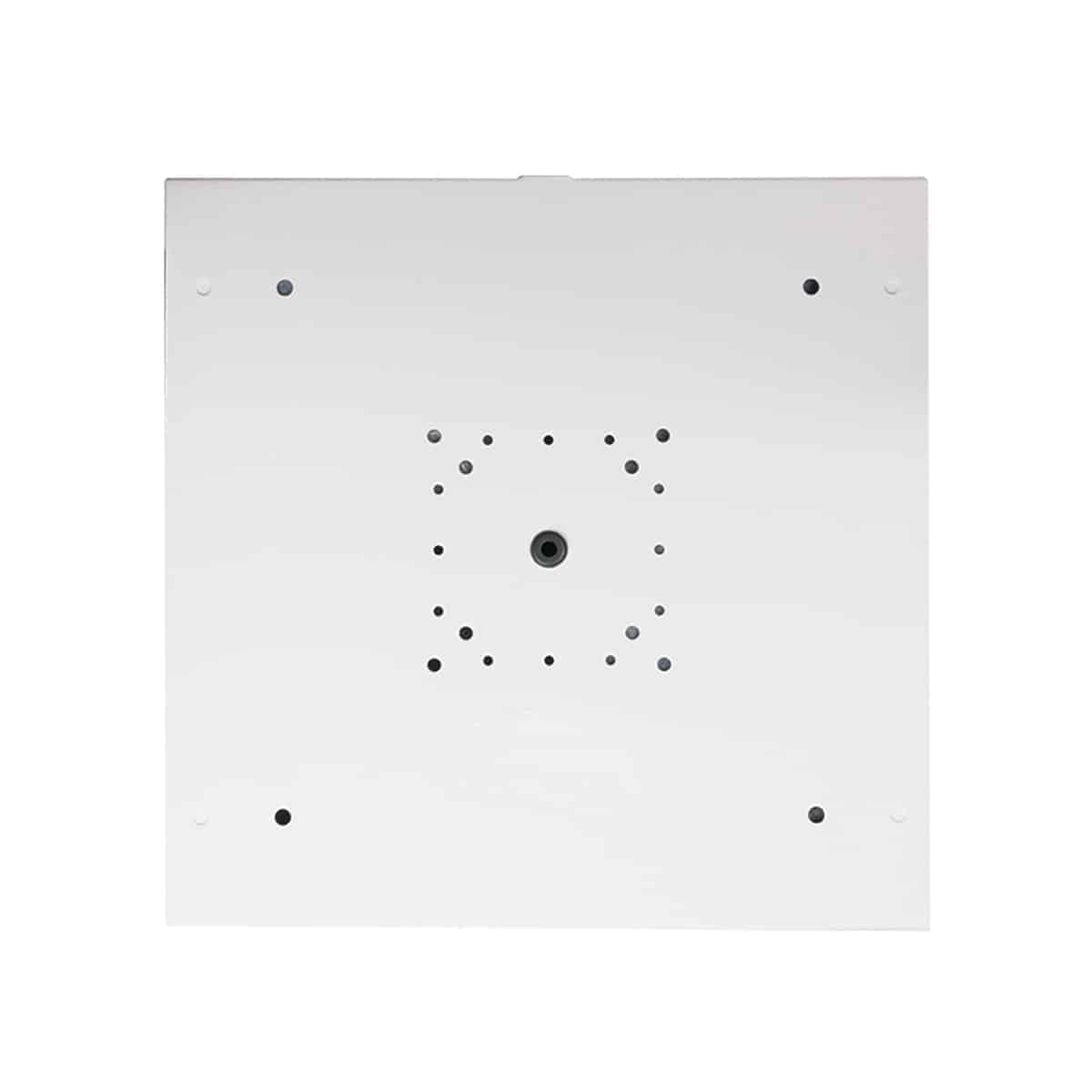

Mounting Aids: Knockouts for 500 Series wiremold on top/bottom and universal mounting hole pattern in rear

Spec Sheet: 1301-DSL8

Certified U.S. steel
Made in Missouri, U.S.A.

The baffle for indoor surface-mount applications shall be Lowell Model No. DSL-8, which shall measure 11.3 in. H x 11.5 in. W x 5.29 in. D (at top). The backbox shall feature a sloped front, wiremold knockouts on top/bottom, and universal mounting hole pattern in rear. The steel grille shall feature a circular perforation pattern. The unit shall have a white powder epoxy finish.
