DC Power Distribution, 16 Output (5VDC/12VDC)

Name: DC Power Distribution, 16 Output (5VDC/12VDC)
SKU: DCP-512
Price: 798.00 USD
Availability: InStock

DCP-512

$798.00 MSRP

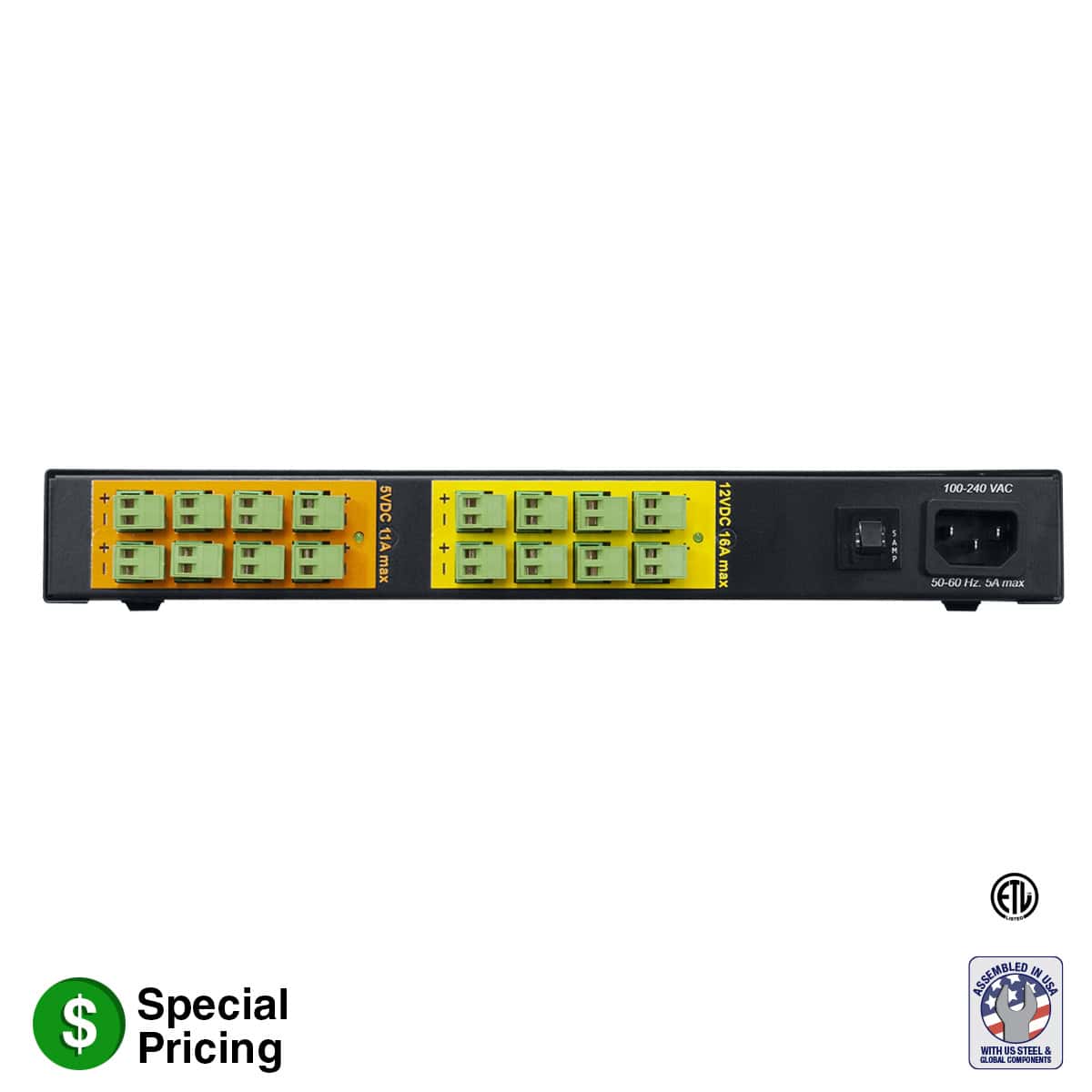

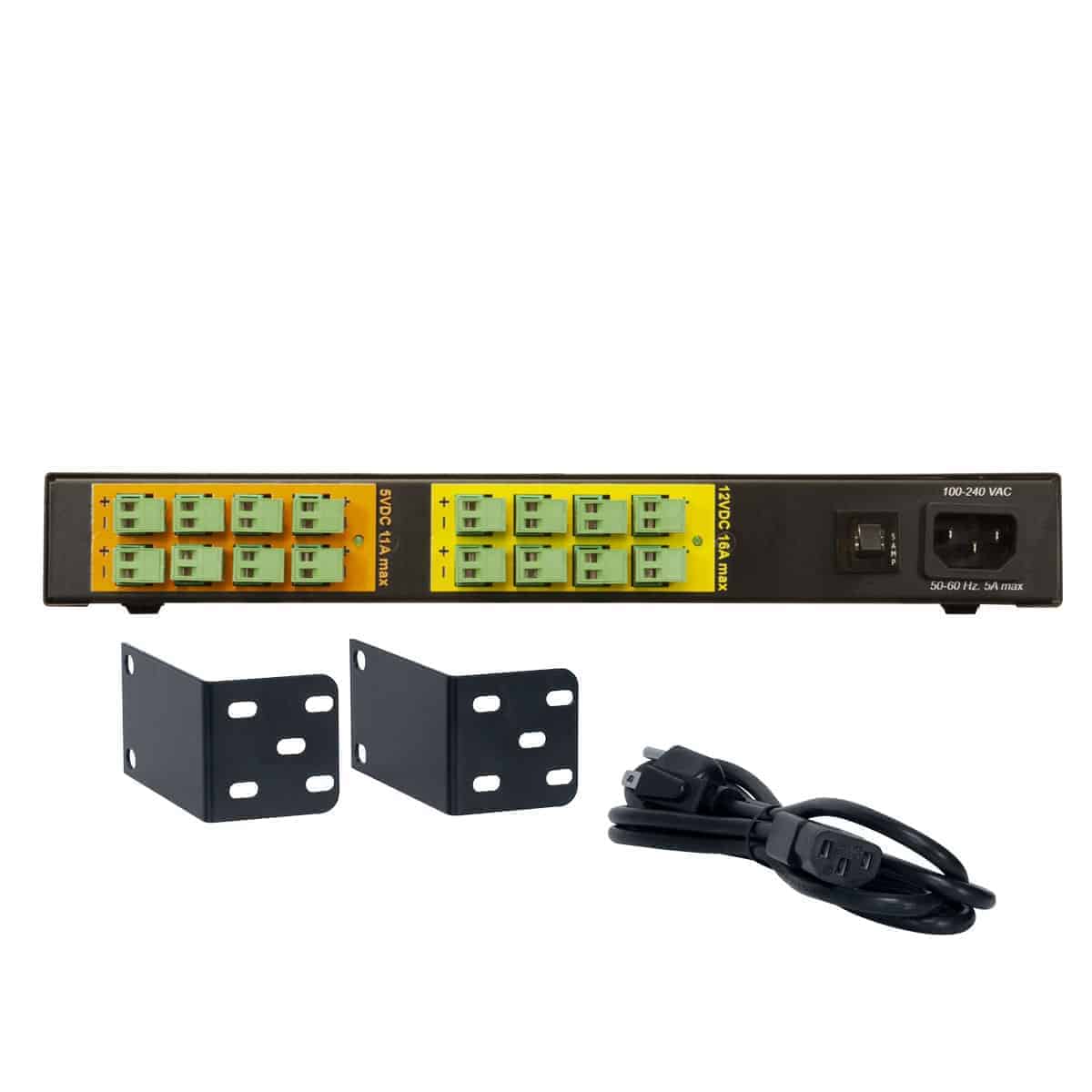

This space saving, multi-output power supply provides two banks of voltage outputs in a single unit (5VDC/12VDC). It's an ideal format to streamline installations that use DC powered devices. The 12-inch x 6-inch chassis includes a fan and universal input (100-240VAC, 50/60Hz), C14 power inlet, and a 6-ft. detachable power cord (C13 to NEMA 5-15P plug). Each output is protected by a PTC fuse with auto reset overload protection. Includes 16 detachable voltage output terminals and mounting brackets.

Add to Favorites

Compare

Each unit features 2 voltage banks of eight outputs (5VDC 11A, 12VDC 16A)
Each output is protected by PTC fuse with auto reset for overload protection.
LED on each voltage bank indicates power status (active/inactive).
Detachable voltage output terminals (16) with quick-install screw terminal connectors.
Universal Input: 100-240VAC, 50/60Hz
6 ft. power cord (C13 to NEMA 5-15P plug)
Chassis: 12 in. x 6 in. x 1.625 in. (5 lbs.)
Universal mounting brackets (wall, rack, shelf)

Spec Sheet: 2146-DCP512

ETL Listed (UL60065)
Certified U.S. Steel
Assembled in U.S.A. with global components

Power distribution shall be Lowell model DCP-512, which shall feature a 12″ x 6″ x 1.625″ steel chassis with black finish and universal mounting brackets for shelf, wall, or rackmount. The unit shall feature two voltage modules with 8 outputs each (16 total). Voltage outputs shall be Euro style output terminals (5VDC 11A, 12VDC 16A). Each output shall be protected by an auto-reset PTC fuse. The unit shall feature universal input (100-240VAC 50/60Hz) with C14 power inlet compatible with international standards. It shall include a 6 ft. power cord (C13 to NEMA 5-15) and variable speed fan. The power distribution shall be made in the U.S.A. with global components.
